Model: KA-119

BendixKing - Audio Control Panel

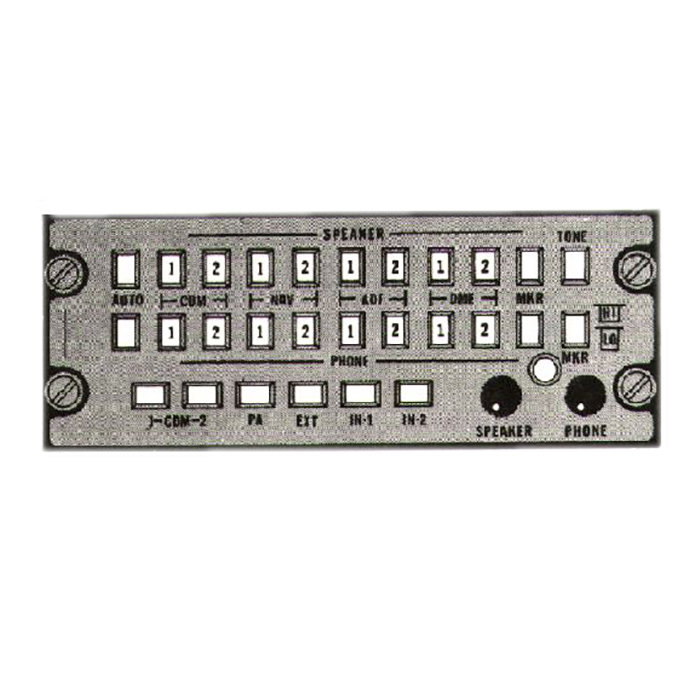

product image
Part Number :


KA-119
FEATURES
  • Audio Control Panel designed for use with KAA-455 Audio Control System
  • DZUS mounted panel
  • Basic model provides control for up to 2 transceivers and 7 receivers
  • Selection of headphone and/or speaker outputs is provided for each receiver and transceiver
  • Auto switch for both speaker and headphone allows automatic selection of the corresponding audio as a transceiver microphone is selected
  • Volume controls, a navigation tone and delete switch, and marker sensitivity switch are provided
  • Models available with capability to control up to three HF transceivers (see table below)
  • Models available with black or gray faceplates and either 5V or 28V lighting (see table below)



SPECIFICATIONS
Size: 5.75"W x 2.25"H x 3.27""L Weight: .93 lbs.
TSO Compliance: C50B; Env. Cat. DAPAAAXXXXXX Applicable Documents: RTCA DO-138
Part NumberAudio Control Panel Description:
071-1087-00 No split nav, black face, no HF channel, 5V lighting
071-1087-01 No split nav, black face, no HF channel, 28V lighting
071-1087-02 No split nav, black face, HF channel, 5V lighting
071-1087-03 No split nav, black face, HF channel, 28V lighting
071-1087-04 No split nav, gray face, no HF channel, 5V lighting
071-1087-05 No split nav, gray face, no HF channel, 28V lighting
071-1087-06 No split nav, gray face, HF channel, 5V lighting
071-1087-07 No split nav, gray face, HF channel, 28V lighting
071-1087-08 Split nav, black face, no HF channel, 5V lighting
071-1087-09 Split nav, black face, no HF channel, 28V lighting
071-1087-10 Split nav, black face, HF channel, 5V lighting
071-1087-11 Split nav, black face, HF channel, 28V lighting
071-1087-12 Split nav, gray face, no HF channel, 5V lighting
071-1087-13 Split nav, gray face, no HF channel, 28V lighting
071-1087-14 Split nav, gray face, HF channel, 5V lighting
071-1087-15 Split nav, gray face, HF channel, 28V lighting



071-1087-01
- Audio Control Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-1087-03
- Audio Control Panel
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

071-1087-05
- Audio Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-1087-07
- Audio Control Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-1087-09
- Audio Control Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No
