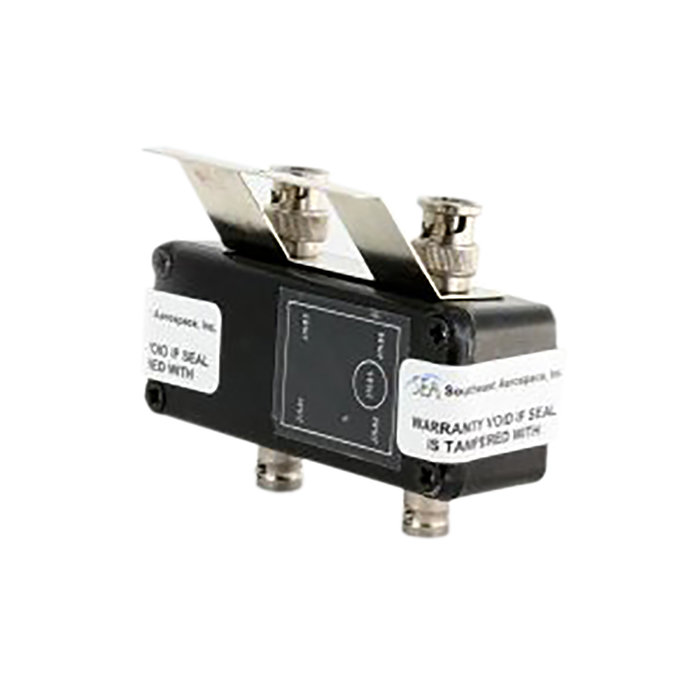

Part #: 071-0019-00

Model: KA-158

OEM:

BendixKing

Desc:

Bridging Amplifier

Part Number :


KA-158



FEATURES

  • HF Bridging Amplifier used in dual KHF-950 HF System configurations
  • Allows both KTR-953 receivers to operate from one antenna
  • Divides and routes the received signal from the active antenna coupler to both KTR-953 receivers
  • Two units required for dual installation
  • Mounts directly on the front of each KAC-952 Coupler
  • Click Here for image of sample dual KHF-950 system configuration



SPECIFICATIONS
Size: 2.65"W x 2.003"H x 3.65"L Weight: 0.4 lbs.
Input Impedance: 600 ohms Output Impedance: 50 ohms
Gain: Unity to 6db Temperature: -55 to -70C
Altitude: 0-50000 ft. Frequency Range: 2-30 Mhz
Part Number: Description:
071-0019-00 HF Bridging Amplifier



Serial # 1693
Condition SVC
Mods 1
Tag Date 10/22/21
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 1694
Condition SVC
Mods 1
Tag Date 10/22/21
Shop Southeast Aerospace Inc.
Warranty 6 Months
071-0019-00
- Bridging Amplifier
Price Condition Status
$400.00 SVC OUTRIGHT 2 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
