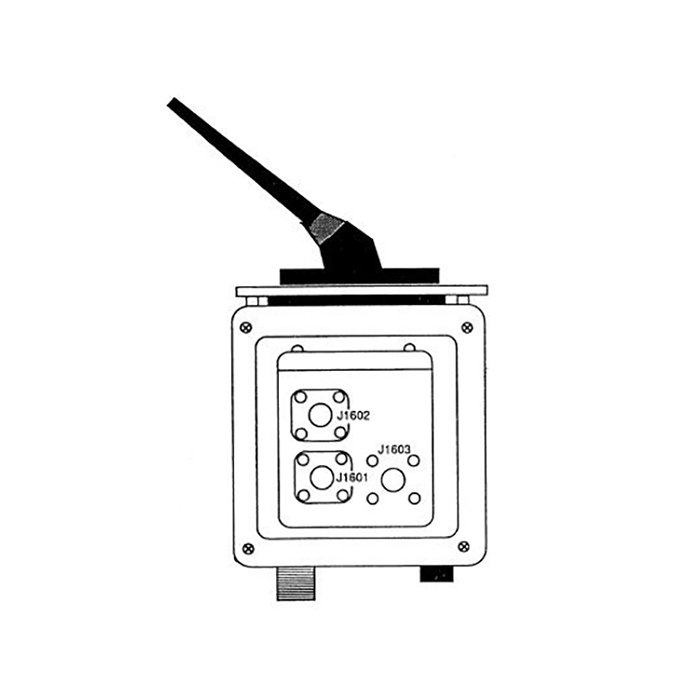

product image

Part #:

Model: KA-160

OEM:

BendixKing

Desc:

Dual HF antenna adapter

Part Number :


KA-160



FEATURES

  • Dual Antenna Adapter used in dual KHF-950 HF System configurations
  • Allows both KTR-953 receivers to operate from one antenna
  • Required when dual system installation is used with single long wire antenna (e.g. KIT-950)
  • Connects antenna to the active antenna coupler
  • Click Here for image of sample dual KHF-950 system configuration
  • Versions available with various antenna terminations (see table below)
  • For dimensions and schematic on -00 version, click Here
  • For dimensions and schematic on -01 version, click Here
  • For dimensions and schematic on -02 version, click Here



SPECIFICATIONS
Dimensions: see above Weight: 1.2 lbs.
Altitude: 0-50000 ft. Frequency Range: 2-30 Mhz
Part Number:  Description:
071-1269-00 With Dayton-Granger type antenna termination
071-1269-01 With porcelain feedthru type antenna termination (note: as of 2004, no longer in production)
071-1269-02 With Dayton-Granger Lear type antenna termination



071-1269-00
- Dual HF antenna adapter
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
071-1269-02
- Dual HF Antenna Adapter
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
$5,105.00 NEW OUTRIGHT REQUEST LEAD TIME
