Part #:

Model: KA-161

OEM:

BendixKing

Desc:

External Capacitor

Part Number :


KA-161



FEATURES

  • External Capacitor used in KHF-950 HF System
  • Required when a shunt, notch, or short grounded wire antenna is used
  • Used with KAC-952 -02 or -12 HF couplers
  • Grounded wire antennas less than 10 feet (3 meters) must use an external capacitor
  • Versions available with various antenna terminations (see table below)
  • For dimensions and schematic on -00 version, click Here
  • For dimensions and schematic on -01 version, click Here
  • For dimensions and schematic on -02 version, click Here



SPECIFICATIONS
Dimensions: see above Weight: 1.05 lbs.
Altitude: 0-50000 ft. Frequency Range: 2-30 Mhz
Part Number Description
071-1271-00 External Capacitor, With Dayton-Granger type antenna termination (note: as of 2004, no longer in production)

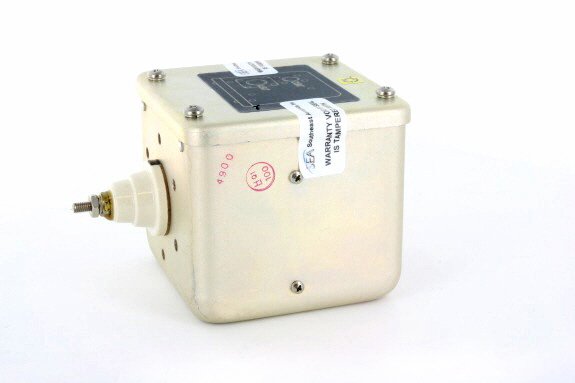

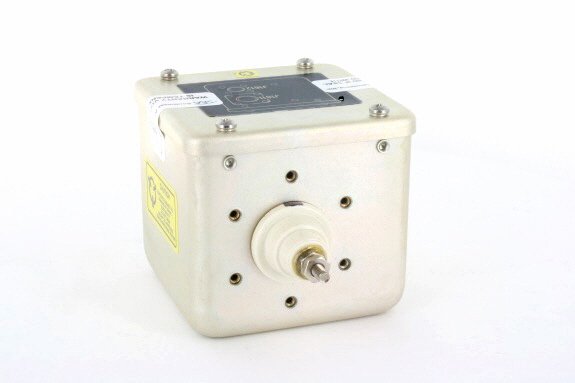

071-1271-01 External Capacitor, With porcelain feedthru type antenna termination

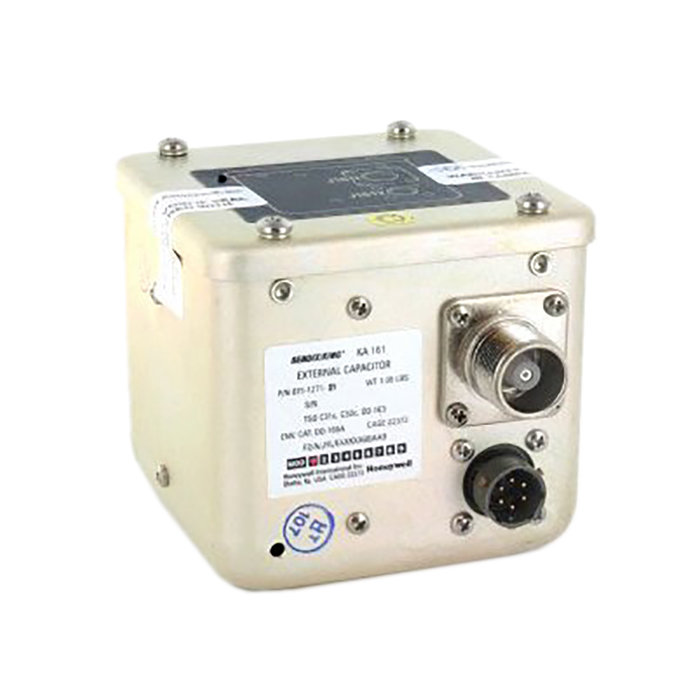

071-1271-02 External Capacitor, With HN type antenna Connector



071-1271-01
- External Capacitor

NSN: 5821-01-187-8297

Price Condition Status
$1,250.00 SV OUTRIGHT REQUEST LEAD TIME
071-1271-02
- Antenna Adapter
Price Condition Status
$2,250.00 SV OUTRIGHT REQUEST LEAD TIME
