Part #: 071-1196-00

Model: KA-44

NSN:

5985-01-354-6713

OEM:

BendixKing

Desc:

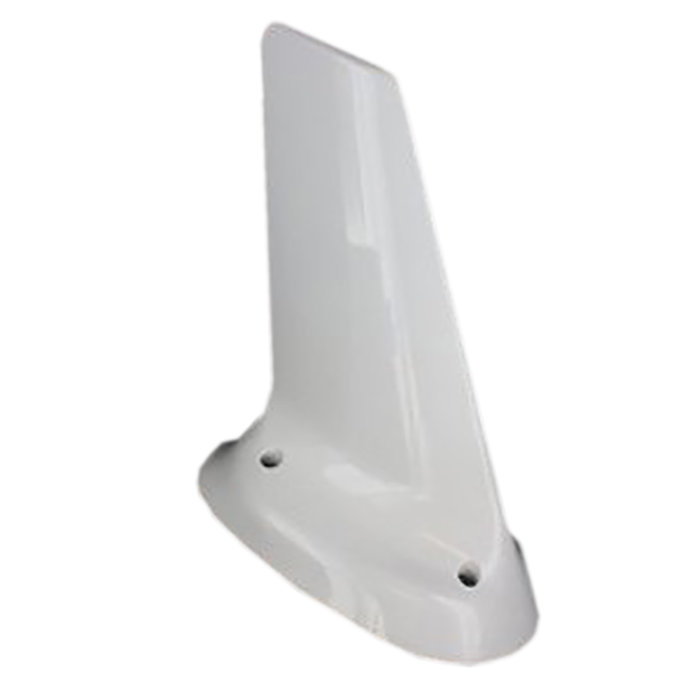

ADF Antenna

Part Number :


KA-44
FEATURES
  • Combined loop/sense ADF antenna for use with KR-87 ADF receiver, KI-227/228 ADF indicator
  • Similar to KA-44B low profile ADF antenna but has blade design
  • Contains preamplifier and modulator circuits which combine antenna signals into a single signal input to the receiver
SPECIFICATIONS
Vertical Height: 2.0 in. Weight: 9.0 lbs.
TSO Compliance: TSO C41c Class A, DO-160 Env. Cat B2D2/A/LJY/XXXXXX/ABABA Humidity: 95% + RH at 50C for 48 hours
Power Requirements: 9VDC at 80mA max (supplied by KR-87)
SEE ALSO KR-87, KI-227, KI-228
Part NumberADF Antenna Description:
071-1196-00 Combined loop and sense, blade design



071-1196-00
- ADF Antenna

NSN: 5985-01-354-6713

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
