KAC-503 071-00168-0311

BendixKing - FIS Module
Part Number :
Bendix King

KAC-503
FEATURES

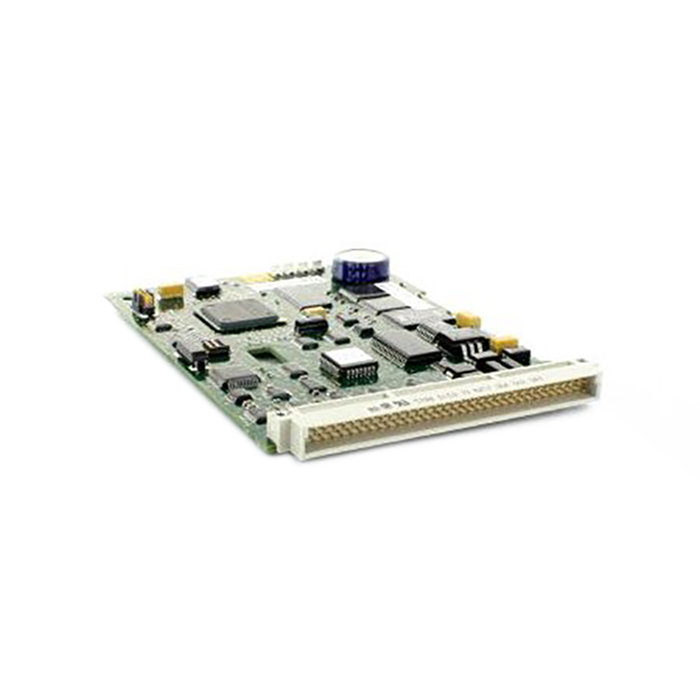

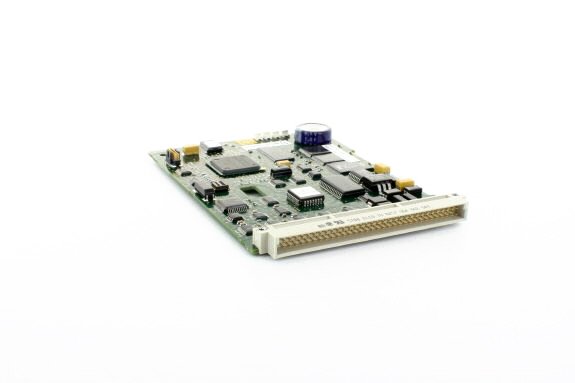

  • Flight Information Services (FIS) Weather Module for KMD 540/550/850
  • Supplies real-time weather information and other flight advisory information to pilots to enhance situation awareness
  • Receives textual and graphical weather information from the Honeywell KDR 510 VHF data link (VDL) receiver or the KDR 610 XM satellite receiver
  • KAC 503 card fits easily within the casing of the KMD 540/550/850. Add it by simply unscrewing and sliding back the side panel



071-00168-0311
- FIS Module
Price Condition Delivery
$225.00 SV OUTRIGHT IN STOCK
$2,995.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

The KAC-501, 502, 503, and 504 modules can be added and removed to the KMD-540 display unit very easily. Labeled screws are removed from the side panel and the panel is slid back. A screw on the top for the locking bar is removed, the bar is turned 90 degrees counter-clockwise and then pulled up through the top of the unit. For detailed instructions, please view this page from the KMD-550/850 Installation Manual.
KMD-540 datacards with P/N 071-00161-020X include a major software change to allow the unit to interface to the KDR-610 XM weather receiver. To enable the KMD-540 to accept a software change, Pin 17 on J3001 must be tied to ground. Attempting to upgrade the software from 01/XX to 02/XX without the upgrade enable pin grounded will result in the message:

"An upgrade has been found, but this unit is not strapped to allow the upgrade to take place. Switch the unit off and either strap the unit to allow the upgrade or re-insert the original version of software."

For complete information, refer to Honeywell SWB KMD 540-SW1 or contact the Southeast Aerospace Technical Team.
