Part #: 065-0089-16

Model: KAS-297C

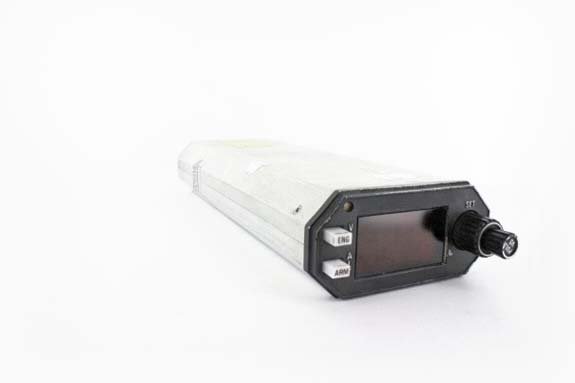

BendixKing - Altitude Preselector
Part Number :


KAS-297C
FEATURES
  • Altitude / Vertical Speed Selector used in KFC275/325 Flight Control Sustem
  • Functions along with the KEA346 or KEA130A Encoding Altimeter as part of the KFC275/325 Flight Control System
  • Also provides for vertical speed selection, vertical sync, and vertical speed hold



SPECIFICATIONS
Size: 3.26"W x 1.542"H x 8.70"L Weight: 1.1 lbs.
Temperature Range: -20 to +55C (operating) TSO: C9c, C52a, DO-160B
Altitude: 55000 ft. Power Requirements: 9-33 VDC at .7 amps max
Aural Alert Output: 2 +-2Vp-p into 500 ohm load SonAlert Output: Active State: Lo (NMT 1 +-5VDC at 10ma max; Inactive State: High (33 VDC max)
Voice Enable Output: Active State: Lo (NMT 1 +-5VDC at 10ma max; Inactive State: High (33 VDC max) Baro Pot Excitation Output: 5 VDC
Altimeter Inputs: 11 Wire Grey Code, Active State: Ground, Inactive State: Open Baro Correct Input: 4.2VDC to .40VDC
Lighting: 120ma max at 14 volts, 60ma max at 28 volts Lighting: 120ma max at 14 volts, 5 volts / 60ma max at 28 volts
Part NumberAltitude/Vertical Speed Preselector Description
065-0089-00 Black Bezel, 14/28 VDC
065-0089-01 Black Bezel, 5V
065-0089-02 Grey Bezel, 14/28 VDC
065-0089-03 Grey Bezel, 5V
065-0089-04 Black Bezel, 14/28 VDC
065-0089-05 Black Bezel, 5V
065-0089-06 Grey Bezel, 14/28 VDC
065-0089-07 Grey Bezel, 5V
065-0089-08 Black Bezel, 28 VDC
065-0089-12 Black Bezel, 5 VDC
065-0089-13 Black Bezel, 28 VDC
065-0089-14 Grey Bezel, 5 VDC
065-0089-15 Grey Bezel, 28 VDC
065-0089-16 Black Bezel, 5 VDC
065-0089-17 Black Bezel, 28 VDC

 The 065-0089-00/03 are not compatible with 065-0089-04/14. Use versions -00/03 with KCP220-01 only. Use remaining versions with KCP220-05 and above.

065-0089-16
- Altitude Preselector
Price Condition Delivery
$3,850.00 SV OUTRIGHT VIEW STOCK
$2,250.00 SV EXCHANGE VIEW STOCK
$17,795.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: Yes

065-0089-04
- Altitude Preselector

NSN: 6610-01-379-6750

Price Condition Delivery
$1,700.00 SV OUTRIGHT VIEW STOCK
$525.00 AR OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: Yes

065-0089-00
- Altitude Preselector
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

065-0089-02
- Altitude Preselector
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

065-0089-05
- Altitude Preselector

NSN: 6610-01-594-8428

Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

065-0089-12
- Altitude Preselector
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

065-0089-14
- Altitude Preselector
Price Condition Delivery
$15,790.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

065-0089-17
- Altitude Preselector
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No
