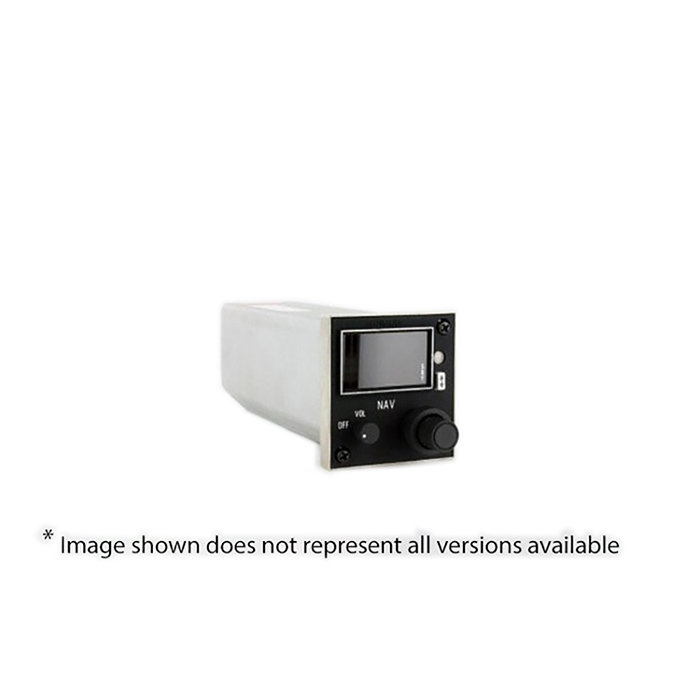

KFS-564

FEATURES

Digital control for use with KNR-634 and KNR-634A NAV receivers
7-segment gas discharge readouts display
Cool-burning readouts for greater reliability
ACTIVE and STANDBY frequency displays
Models available with ON/OFF/VOLUME selections (see table below)
Models available with black or gray face plates (see table below)
Models available with 5 or 28 volt lighting (see table below)
Photocell adjusts brightness of display
Similar to KFS-564A but DOES NOT include 9 preset channel memory, configuration capability for additional channel mode and/or tandem cockpit applications, frequency management capability when used with KNS-660 system, display dimmer override, civil or military operating modes

SPECIFICATIONS

Size:	2.093"W x 2.250"H x 5.775"L	Weight:	0.7 lbs.
Lighting:	27.5 or 5 volts DC	Temperature Range:	-20C to +55C
Design:	All solid-state, single chip microprocessor controlled with gas discharge display multi-plexing and Electrically Alterable Read Only Memory (EAROM) for power-off frequency storage.	Tuning:	Provides serial tuning data for control of the KNR-634/A. Also provides DME serial tuning data for King DME systems

Part Number	Navigation Control Description
071-1216-12	Black bezel, 28 volt lighting, diffused lens, With VOLUME/ON/OFF controls
071-1216-13	Gray bezel, 28 volt lighting, diffused lens, With VOLUME/ON/OFF controls
071-1216-15	Black bezel, 5 volt lighting, diffused lens, With VOLUME/ON/OFF controls
071-1216-16	Gray bezel, 5 volt lighting, diffused lens, With VOLUME/ON/OFF controls
071-1216-17	Black bezel, 28 volt lighting, diffused lens, With ON/OFF controls
071-1216-18	Gray bezel, 28 volt lighting, diffused lens, With ON/OFF controls
071-1216-20	Black bezel, 5 volt lighting, diffused lens, With ON/OFF controls
071-1216-21	Gray bezel, 5 volt lighting, diffused lens, With ON/OFF controls
071-1216-22	Black bezel, 28 volt lighting, diffused lens, NO controls
071-1216-23	Gray bezel, 28 volt lighting, diffused lens, NO controls
071-1216-25	Black bezel, 5 volt lighting, diffused lens, NO controls
071-1216-26	Gray bezel, 5 volt lighting, diffused lens, NO controls
071-1216-27	Black bezel, 28 volt lighting, standard lens, With VOLUME/ON/OFF controls

PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET

071-01216-0015

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1216-12

- Nav Control

Price	Condition	Delivery
$1,150.00	OH OUTRIGHT	RFQ
$850.00	OH EXCHANGE	RFQ

SEA Repair Capabilities: Yes

071-1216-13

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1216-14

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1216-15

- Nav Control

Price	Condition	Delivery
$1,250.00	SV OUTRIGHT	RFQ
$750.00	SV EXCHANGE	RFQ

SEA Repair Capabilities: Yes

071-1216-16

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1216-17

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	OH OUTRIGHT	RFQ
CALL OR RFQ	OH EXCHANGE	RFQ

SEA Repair Capabilities: Yes

071-1216-18

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1216-20

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1216-21

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1216-22

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	OH OUTRIGHT	RFQ
CALL OR RFQ	OH EXCHANGE	RFQ

SEA Repair Capabilities: Yes

071-1216-23

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1216-24

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1216-25

- Nav Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1216-26

- Nav Control

NSN: 5895-01-339-2915

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1216-27

- Nav Control

NSN: 5895-01-276-4235

Price	Condition	Delivery
$1,195.00	SV OUTRIGHT	RFQ
$795.00	SV EXCHANGE	RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

How does Southeast Aerospace calculate exchange prices and acceptable exchange cores?

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.

Will the KFS-564A directly replace the KFS-564?

The KFS-564 is no longer in production. As per the KNR-634/634A installation manual page 1-14, the KFS-564A is an exact replacement for the KFS-564.

Are King Gold Crown III "non-A" digital controls interchangeable with the "A" versions?

Yes, the non-A controls (KFS-564/-576/-586/-598) are interchangeable with the A version controls (KFS-564A/-576A/-586A/-598A). The A version controls will plug into their respective non-A version harness with no problems. However, the non-A controls will not work in some A version control harnesses due to tandem operation and KNS-660 frequency management features of the A version controls.
