Part #:

Model: KFS-576

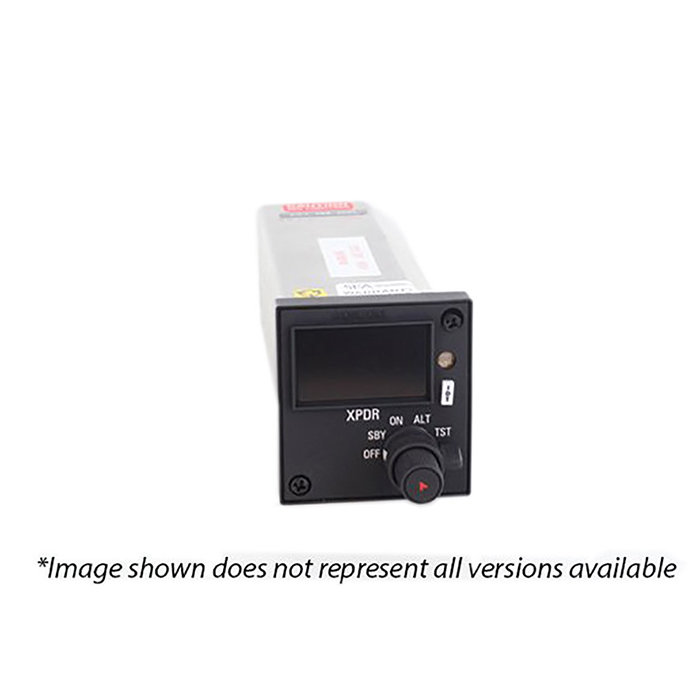

BendixKing - ATC Transponder Control

Part Number :

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
CALL OR RFQ	SV OUTRIGHT	RFQ	Add to RFQ
CALL OR RFQ	SV EXCHANGE	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
CALL OR RFQ	SV OUTRIGHT	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
$1,550.00	SVC OUTRIGHT	RFQ	Add to RFQ
$875.00	SVC EXCHANGE	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: No

NSN: 5895-01-670-7388

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
$950.00	SV OUTRIGHT	RFQ	Add to RFQ
$750.00	SV EXCHANGE	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
$1,650.00	OH OUTRIGHT	RFQ	Add to RFQ
$850.00	OH EXCHANGE	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

NSN: 5895-01-397-4460

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 03/28/20 22:20:55 EDT *

SEA Repair Capabilities: Yes

KFS-576

FEATURES

Digital control for use with KXP-756 Transponder
7-segment gas discharge display of 4096 transponder codes
Cool-burning readouts for greater reliability
Models available with combination of ON/OFF and 1-2 dual unit selections (see table below)
Models available with black or gray face plates (see table below)
Models available with 5 or 28 volt lighting (see table below)
Models available with diffused or non-diffused display lens (see table below)
Photocell adjusts brightness of display
Similar to KFS-576A but DOES NOT include capability for additional channel mode and/or tandem cockpit applications or frequency management capability when used with KNS-660 system

SPECIFICATIONS

Size:	2.193W x 2.350"H x 5.775"L	Weight:	0.7 lbs.
Lighting:	27.5 or 5 volts DC	Temperature Range:	-20C to +55C
Altitude:	To 50,000 feet	TSO Compliance:	C74c, DO-160 ENV CAT. AIDI/A/KPS/XXXXXSZXXXA
Design:	High-visibility, gas-discharge display

Part Number	ATC Transponder Control Description:
071-1192-00	Black bezel, non-diffused lens, 28 volt lighting, single transponder selection
071-1192-01	Black bezel, non-diffused lens, 5 volt lighting, single transponder selection
071-1192-02	Gray bezel, non-diffused lens, 28 volt lighting, single transponder selection
071-1192-03	Gray bezel, non-diffused lens, 5 volt lighting, single transponder selection
071-1192-04	Black bezel, non-diffused lens, 28 volt lighting, dual transponder selection
071-1192-05	Black bezel, non-diffused lens, 5 volt lighting, dual transponder selection
071-1192-06	Gray bezel, non-diffused lens, 28 volt lighting, dual transponder selection
071-1192-07	Gray bezel, non-diffused lens, 5 volt lighting, dual transponder selection
071-1192-08	Black bezel, diffused lens, 28 volt lighting, single transponder selection
071-1192-09	Black bezel, diffused lens, 5 volt lighting, single transponder selection
071-1192-10	Gray bezel, diffused lens, 28 volt lighting, single transponder selection
071-1192-11	Gray bezel, diffused lens, 5 volt lighting, single transponder selection
071-1192-13	Black bezel, diffused lens, 28 volt lighting, dual transponder selection
071-1192-14	Black bezel, diffused lens, 5 volt lighting, dual transponder selection
071-1192-15	Gray bezel, diffused lens, 28 volt lighting, dual transponder selection
071-1192-16	Gray bezel, diffused lens, 5 volt lighting, dual transponder selection
071-1192-18	Black bezel, non-diffused lens, 28 volt lighting, single transponder selection
071-1192-22	Gray, diffused lens, 5V, single transponder selection, w/o on/off selection
071-1192-26	Gray, diffused lens, 5V, dual transponder selection, without on/off selection

071-1192-00

- Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-01

- ATC Transponder Control

Price	Condition	Delivery
CALL OR RFQ	SV OUTRIGHT	CALL OR RFQ
CALL OR RFQ	SV EXCHANGE	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-02

- ATC Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-03

- ATC Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-04

- ATC Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-05

- ATC Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-06

- ATC Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-07

- ATC Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-08

- Transponder Control

Price	Condition	Delivery
CALL OR RFQ	SV OUTRIGHT	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-09

- ATC Transponder Control

Price	Condition	Delivery
$1,550.00	SVC OUTRIGHT	CALL OR RFQ
$875.00	SVC EXCHANGE	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-10

- Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-11

- Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-12

- ATC Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1192-13

- Transponder Control (Dual)

NSN: 5895-01-670-7388

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-14

- Transponder Control (Dual)

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-15

- Transponder Control (Dual)

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-16

- Transponder Control (Dual)

Price	Condition	Delivery
$950.00	SV OUTRIGHT	CALL OR RFQ
$750.00	SV EXCHANGE	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-18

- Transponder Control

Price	Condition	Delivery
$1,650.00	OH OUTRIGHT	CALL OR RFQ
$850.00	OH EXCHANGE	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-22

- ATC Transponder Control

NSN: 5895-01-397-4460

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1192-26

- ATC Transponder Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Are King Gold Crown III digital controls such as the KFS-576 interchangeable with the A versions such as the KFS-576A?

Yes, the non A controls are interchangeable with the A version controls. The A controls will plug into the non-A harness with no problems. However, the non-A controls will not work in some A version control harnesses due to the tandem operation and KNS-660 frequency management features of the A version controls.

Are King Gold Crown III "non-A" digital controls interchangeable with the "A" versions?

Yes, the non-A controls (KFS-564/-576/-586/-598) are interchangeable with the A version controls (KFS-564A/-576A/-586A/-598A). The A version controls will plug into their respective non-A version harness with no problems. However, the non-A controls will not work in some A version control harnesses due to tandem operation and KNS-660 frequency management features of the A version controls.

Downloads

KFS-576 Pilots Guide
