Part #:

Model: KFS-586

BendixKing - ADF Control

Part Number :

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
$1,000.00	OH OUTRIGHT	RFQ	Add to RFQ
$700.00	OH EXCHANGE	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

NSN: 5895-01-276-3172

Price	Condition	Delivery	Action
$1,295.00	SV OUTRIGHT	VIEW STOCK
$700.00	SV EXCHANGE	VIEW STOCK

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

NSN: 5826-01-339-2913

Price	Condition	Delivery	Action
$1,250.00	OH OUTRIGHT	RFQ	Add to RFQ
CALL OR RFQ	OH EXCHANGE	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: Yes

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

Price	Condition	Delivery	Action
RFQ	RFQ	RFQ	Add to RFQ

* Price & Availability valid as of 01/22/20 2:30:54 EST *

SEA Repair Capabilities: No

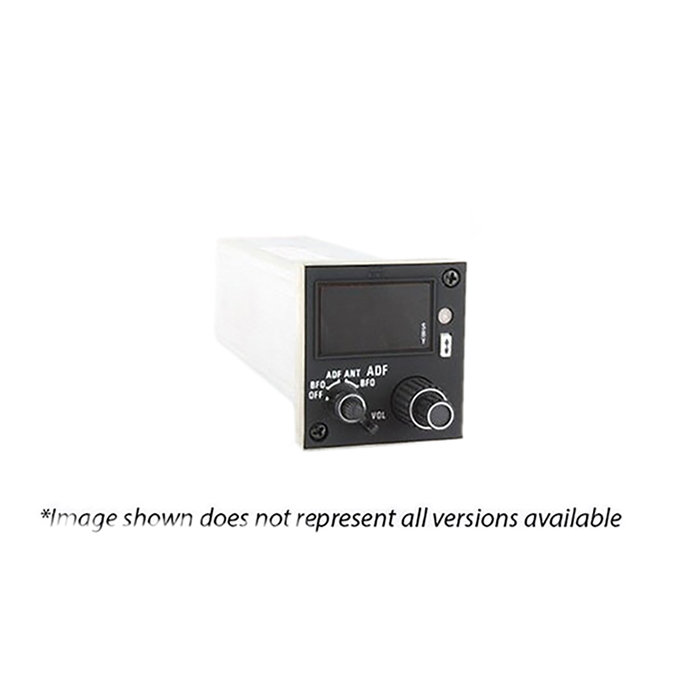

KFS-586

FEATURES

Digital control for use with KDF-806 ADF receiver
7-segment gas discharge readouts
Cool-burning readouts for greater reliability
ACTIVE and STANDBY frequency displays
Models available with combination of ON/OFF/MODE/BFO/VOLUME selections (see table below)
Models available with black or gray face plates (see table below)
Models available with 5 and 28 volt lighting (see table below)
Models available with standard or diffused display lens (see table below)
Automatic dimming circuit adjusts brightness of display
Flip-flop frequency transfer button
Similar to KFS-586A but DOES NOT include 9 preset channel memory, configuration capability for additional channel mode and/or tandem cockpit applications, and frequency management capability when used with KNS-660 system

SPECIFICATIONS

Size:	2.093W x 2.250"H x 7.375"L	Weight:	.68 lbs.
Lighting:	27.5 or 5 volts DC	Temperature Range:	-20C to +55C
TSO Compliance:	C41c, Class A	Environmental Cat.:	AIDI/A/SKP/XXXXXSZBAAA
Design:	All solid-state, single chip microprocessor controlled with gas discharge display multi-plexing and Electrically Alterable Read Only Memory (EAROM) for power-off frequency storage.	Frequency Range:	190 kHz to 1799 kHz in 1 kHz increments, optional 2182 kHz international distress marine frequency.

Part Number	ADF Control Description:
071-1210-04	Black bezel, 28V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1210-05	Black bezel, 5V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1210-06	Gray bezel, 28V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1210-07	Gray bezel, 5V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1210-08	Black bezel, 5V lighting, diffused lens, with Mode/On/Off controls
071-1210-09	Black bezel, 28V lighting, standard lens, with Mode/On/Off/Volume controls
071-1210-10	Black bezel, 14V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1210-11	Gray bezel, 5V lighting, diffused lens, with Mode/On/Off controls
071-1210-12	Black bezel, 28V lighting, diffused lens, with Mode/On/Off controls
071-1210-13	Gray bezel, 28V lighting, diffused lens, with Mode/On/Off controls
071-1210-14	Black bezel, 28V lighting, diffused lens, with "Mode" control only
071-1210-15	Black bezel, 5V lighting, diffused lens, with "Mode" control only
071-1210-16	Gray bezel, 28V lighting, diffused lens, with "Mode" control only
071-1210-17	Gray bezel, 5V lighting, diffused lens, with "Mode" control only

PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET

071-1210-09

- ADF Control

NSN: 5895-01-276-3172

Price	Condition	Delivery
$1,295.00	SV OUTRIGHT	VIEW STOCK
$700.00	SV EXCHANGE	VIEW STOCK

SEA Repair Capabilities: Yes

071-1210-01

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-02

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-03

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-04

- ADF Control

Price	Condition	Delivery
$1,000.00	OH OUTRIGHT	CALL OR RFQ
$700.00	OH EXCHANGE	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-05

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-06

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-07

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-08

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-10

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-11

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-12

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-13

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-14

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-15

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-16

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-17

- ADF Control

NSN: 5826-01-339-2913

Price	Condition	Delivery
$1,250.00	OH OUTRIGHT	CALL OR RFQ
CALL OR RFQ	OH EXCHANGE	CALL OR RFQ

SEA Repair Capabilities: Yes

071-1210-18

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-19

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-20

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-21

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-22

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-23

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-24

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

071-1210-35

- ADF Control

Price	Condition	Delivery
CALL OR RFQ	CALL OR RFQ	CALL OR RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

How does Southeast Aerospace calculate exchange prices and acceptable exchange cores?

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.

Are SEA's Exchange prices negotiable?

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 80% of the original exchange price. That is, it cannot cost SEA more than 80% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

For more information, please refer to these other Exchange FAQs

Are King Gold Crown III "non-A" digital controls interchangeable with the "A" versions?

Yes, the non-A controls (KFS-564/-576/-586/-598) are interchangeable with the A version controls (KFS-564A/-576A/-586A/-598A). The A version controls will plug into their respective non-A version harness with no problems. However, the non-A controls will not work in some A version control harnesses due to tandem operation and KNS-660 frequency management features of the A version controls.

Downloads

KFS-586 Pilots Guide
