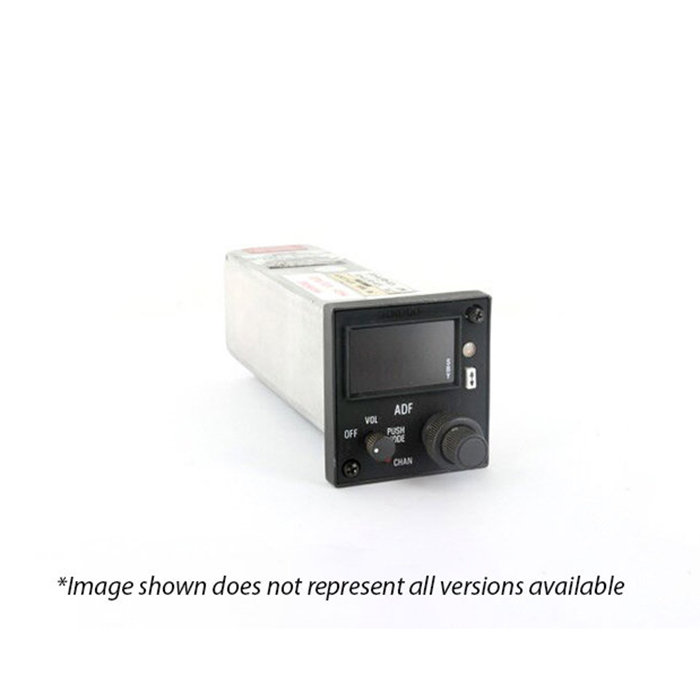

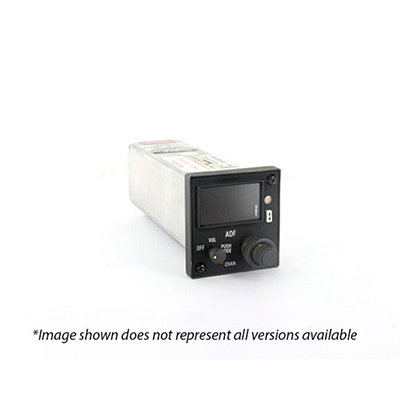

Picture of product KFS-586A

Part #: 071-1284-09

Model: KFS-586A

OEM:

BendixKing

Desc:

ADF Control

Part Number :


KFS-586A

FEATURES

  • Digital control for use with KDF-806 ADF receiver
  • 7-segment gas discharge readouts
  • Cool-burning readouts for greater reliability
  • ACTIVE and STANDBY frequency displays
  • Models available with combination of ON/OFF/MODE/BFO/VOLUME selections (see table below)
  • Models available with black or gray face plates (see table below)
  • Models available with 5, 14, 28, and 115 volt lighting (see table below)
  • Models available with standard or diffused lens or 1 & 2 layer Night Vision Goggle display LCD display (see table below)
  • Automatic dimming circuit adjusts brightness of display
  • Flip-flop frequency transfer button
  • 9 preset channel memory
  • May be configured for additional channel mode and/or tandem cockpit applications
  • Frequency management capability when used with KNS-660 system
  • Similar to KFS-586 but DOES include above 3 features





SPECIFICATIONS

Size: 2.093W x 2.250"H x 7.375"L Weight: .68 lbs.
Lighting: 27.5 or 5 volts DC Temperature Range: -20C to +55C
TSO Compliance: C41c, Class A Environmental Cat.: AIDI/A/SKP/XXXXXSZBAAA
Design: All solid-state, single chip microprocessor controlled with gas discharge display multi-plexing and Electrically Alterable Read Only Memory (EAROM) for power-off frequency storage. Frequency Range: 190 kHz to 1799 kHz in 1 kHz increments, optional 2182 kHz international distress marine frequency.
Part Number: Description:
071-1284-04 Black bezel, 28V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1284-05 Black bezel, 5V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1284-06 Gray bezel, 28V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1284-07 Gray bezel, 5V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1284-08 Black bezel, 5V lighting, diffused lens, with Mode/On/Off controls
071-1284-09 Black bezel, 28V lighting, standard lens, with Mode/On/Off/Volume controls
071-1284-10 Black bezel, 14V lighting, diffused lens, with Mode/On/Off/Volume controls
071-1284-11 Gray bezel, 5V lighting, diffused lens, with Mode/On/Off controls
071-1284-12 Black bezel, 28V lighting, diffused lens, with Mode/On/Off controls
071-1284-13 Gray bezel, 28V lighting, diffused lens, with Mode/On/Off controls
071-1284-14 Black bezel, 28V lighting, diffused lens, with "Mode" control only
071-1284-15 Black bezel, 5V lighting, diffused lens, with "Mode" control only
071-1284-16 Gray bezel, 28V lighting, diffused lens, with "Mode" control only
071-1284-17 Gray bezel, 5V lighting, diffused lens, with "Mode" control only
071-1284-19 Black bezel, 115VAC lighting, NVG 2Layer LCD, w/ Mode/On/Off/Volume controls
071-1284-20 Gray, 115VAC lighting, NVG 2Layer LCD, w/ Mode/On/Off/Volume controls
071-1284-21 Gray, 115VAC lighting, NVG 2 Layer LCD, with Mode/On/Off controls
071-1284-22 Gray, 115VAC lighting, NVG 2Layer LCD, with Mode/On/Off controls
071-1284-23 Black bezel, 115VAC lighting, NVG 2 Layer LCD, with "Mode" control only
071-1284-24 Gray bezel, 115VAC lighting, NVG 2 Layer LCD, with "Mode" control only
071-1284-29 Black, 115VAC lighting, NVG 1Layer LCD, w/ Mode/On/Off/Vol controls. Export License Required
071-1284-30 Gray, 115VAC lighting, NVG 1Layer LCD, w/ Mode/On/Off/Volume controls
071-1284-31 Black bezel, 115VAC lighting, NVG 1Layer LCD, with Mode/On/Off controls
071-1284-32 Gray bezel, 115VAC lighting, NVG 1Layer LCD, with Mode/On/Off controls
071-1284-33 Black bezel, 115VAC lighting, NVG 1Layer LCD, with "Mode" control only
071-1284-34 Gray bezel, 115VAC lighting, NVG 1Layer LCD, with "Mode" control only
071-1284-35 Black, 5VAC lighting, NVG 1Layer LCD, with Mode/On/Off/Volume controls


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET




071-1284-09
- ADF Control
Price Condition Status
$2,550.00 OH OUTRIGHT IN WORK
$1,150.00 OH EXCHANGE IN WORK
071-1284-04
- ADF Control
Price Condition Status
$2,750.00 OH OUTRIGHT REQUEST LEAD TIME
$1,650.00 OH EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-1284-05
- ADF Control

NSN: 5826-01-540-2159

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-1284-06
- ADF Control
Price Condition Status
RFQ RFQ RFQ
071-1284-07
- ADF Control
Price Condition Status
RFQ RFQ RFQ
071-1284-10
- ADF Control
Price Condition Status
RFQ RFQ RFQ
071-1284-17
- ADF Control

NSN: 5826-01-248-2073

Price Condition Status
$2,250.00 OH OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

None, they represent the same unit. Original King Radio part numbers were 9 digits. For example, 066-3056-01. During the Bendix and King merger (i.e. Bendix/King), a new part numbering system was created that converted these 9 digit part numbers to 12 digits. Therefore, 066-3056-01 became 066-03056-0001. Despite this numbering change, units that were originally from the King Radio design still have the 9 digit part number format on the unit dataplate. The 12 digit format for King units appears to be used for catalog and internal Honeywell purposes only. Therefore, any unit that has a zero in its third to last number (i.e. XXX-XXXX-X0XX) has a 9 digit part number (i.e. XXX-XXXX-XXX) on its dataplate / ID Plate.
In January 1989 Bendix/King changed from a nine digit to a twelve digit part numbering system. The new, larger 12 digit numbers allowed for the inclusion of software version into the last two digits of the part number for certain units in which software changed frequently such as EFIS and TCAS processors. Therefore, the two digits immediately preceding the software version indicate the hardware version of the unit.

Different software versions imply different operational features and/or interface capabilities and software modifications imply software repairs (bug fixes) to insure proper operation of these features and interfaces. Software version upgrades frequently require hardware modifications to the unit. Such hardware modifications accompanying software version upgrades do not necessarily change the hardware version of the unit.
Yes, the non-A controls (KFS-564/-576/-586/-598) are interchangeable with the A version controls (KFS-564A/-576A/-586A/-598A). The A version controls will plug into their respective non-A version harness with no problems. However, the non-A controls will not work in some A version control harnesses due to tandem operation and KNS-660 frequency management features of the A version controls.
