Part #: 89000016-150

Model: KGX-150R

BendixKing - Remote Mount WAAS GPS/UAT Receiver

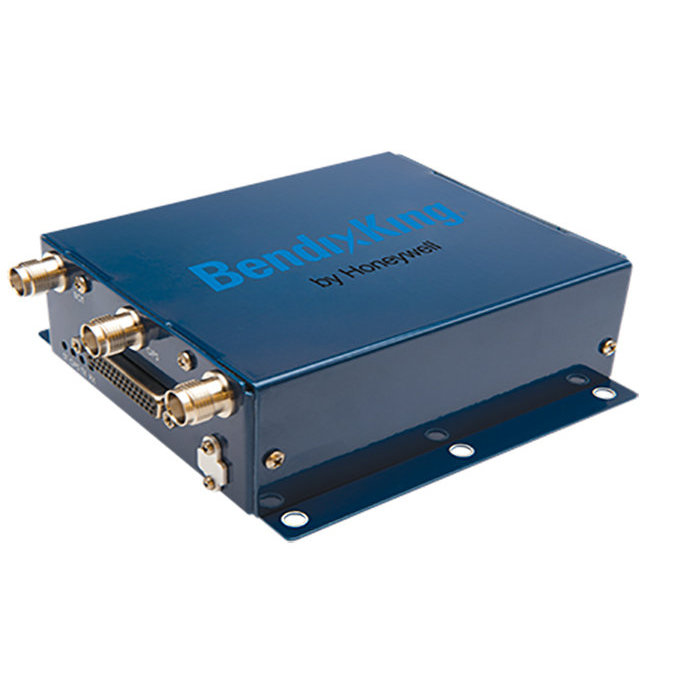

product image
Part Number :

Bendix logo

KGX-150/150R

FEATURES:

  • ADS-B IN and ADS-B OUT capability
  •  KGX 150 includes a high integrity WAAS GPS
  • Can be paired with existing Mode A/C transponders
  • Receive TIS-B and FIS-B uplinks for traffic, graphical weather and other data
  • Display on compatible panel MFD or iPad via optional Wi-Fi module
  • Compliant with FAA 2020 UAT mandate
  • Compliance: DO–160G, DO-282B/TSO C154c, TSO-C157a, TSO-C195a, and TSO-145c (KGX 150 only)



SPECIFICATIONS:

DIMENSIONS:

5W x 5.75D x 1.7H

SUPPLY VOLTAGE:

 10-40 VDC

INPUT: 2 Arinc 429, 1 RS-485, 4 Discrete WEIGHT: Less than 1 pound
OUTPUT: 1 Arinc 429 4 RS-232/422, 2 Discrete TRANSPONDER INTERFACE: Mode A/C Mode S



CERTIFICATIONS:

TSO-C157A (FIS-B) DO-160G
TSO-C195A (TIS-B) DO-178B Level C
TSO-C154C (UAT) DO-254 Level C
TSO-C145C (For GNSS) STC Approved in accordance with AC20-165A



89000016-150
- Remote Mount WAAS GPS/UAT Receiver
Price Condition Status
$2,825.00 NEW OUTRIGHT REQUEST
