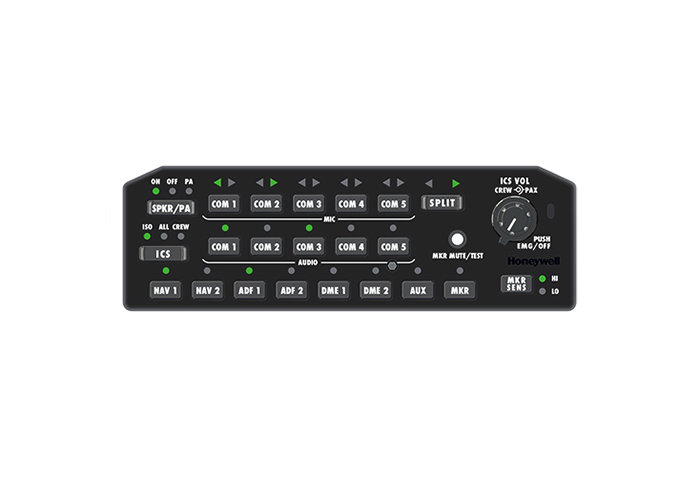

Picture of product KMA-29

Part #: 066-01181-0301

Model: KMA-29




Audio Panel

Part Number :




  • Provides audio system control for the cockpit crew and passengers
  • Interface to the passenger address (PA) system and aural warning system
  • Includes a marker beacon receiver
  • Receives inputs from all audio communication channels and aural warnings
  • Audio outputs include, a cockpit speaker and headphone jacks
  • Noise-Canceling headsets can be used with the audio panel
  • Speaker Control
  • 5 very high frequency (VHF) communication (COM) transceivers
  • Split single panel or dual panel (independent) operation
  • Intercom system operation with automatic voice activation (VOX)
  • 8 Navigation receivers, Two (2) (NAV), Two (2) automatic direction finder (ADF), Two (2) distance measuring equipment (DME), One (1) auxiliary (AUX), One (1) marker beacon (MKR)
  • Marker beacon mute/test and sense control
  • Processing and routing of the aural warnings generated from external source or system
  • 4 uswitched audio inputs
  • Entertainment system (Optional)
  • Telephone operation (Optional)
Part Number:  Description:
066-01181-0101 Audio Panel


- Audio Panel
