Part #: 065-00189-0101

Model: KMG-7010

BendixKing - Magnetometer

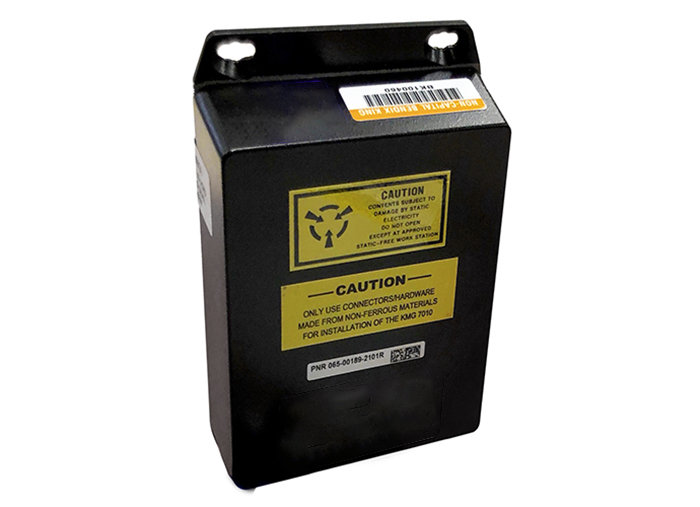

product image
Part Number :
Image result for BendixKing Logo
KMG-7010
FEATURES
  • The KMG-7010 supports variability related to its orientation
  • Connectors can be oriented towards the airplane nose or tail, towards left or right wing as well as oriented down
  • KMG-7010 can be rotated to 4 orientations around the  axis which is oriented towards the magnetometer connector
SPECIFICATIONS
DIMENSION: 3.70 x 5.83 x 1.33 inches (93.98 x 148.08 x 37.78 mm) weight: 0.99 lbs (0.45 kgs) Max. Weight
temperature: -55°C to +70°C ALTITUDE: 55,000 ft.
operating voltage: 9.0 to 30.3 VDC CURRENT DRAW (AT 27.5 VDC)

(80 mA Nomial, 25°C, after 2 minute warmup) (200 mA Nominal, 55°C, after 2 minute warmup) (700 mA Maximum, -55°C )

CIRCUIT BREAKER: 1 AMP for 28 VDC, 2 AMP for 14 VDC system signal inputs/outputs Serial CAN Bus
cooling: Convention cooled, No external cooling required connector: Male 9-pin
certofications: TSO-C6d/ETSO-C6d (partial)
Part Number Description
065-00189-0101 Magnetometer
065-00189-1101 Magnetometer





065-00189-0101
- Magnetometer
Price Condition Status
$3,850.00 NEW OUTRIGHT REQUEST
