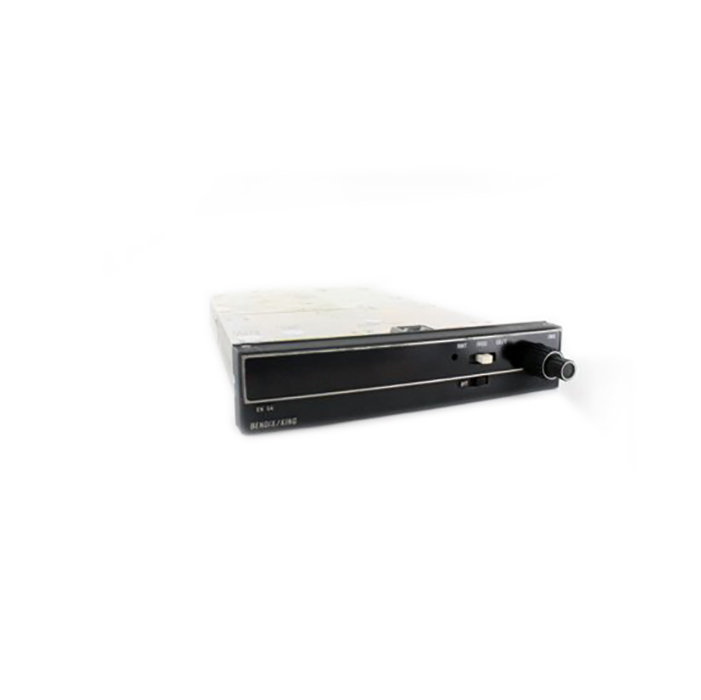

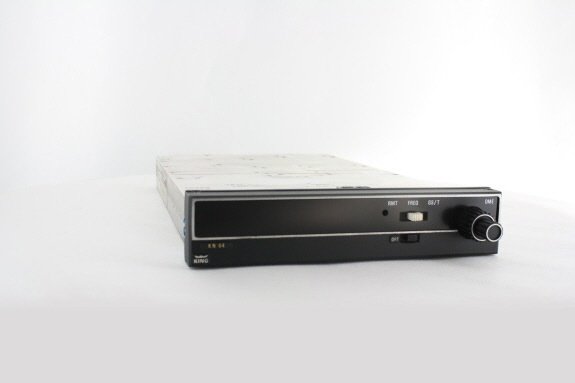

Panel Mount DME
|$2,495.00||OH OUTRIGHT||1 IN STOCK||VIEW|
|$1,475.00||OH EXCHANGE||1 IN STOCK||VIEW|
|Size:||6.312"W x 1.30"H x 12.258"L||Weight:||2.6 lbs.|
|Channeling Sources:||Internal; External control head providing BCD code, 2x5 code, slip code, or Bendix/King serial code||Output Power:||KN-62/62A = 50 watts, KN-64 = 35 watts|
|Maximum Display Range:||389 nautical miles||Acquisition Sensitivity:||-82 dBm minimum, -87 dBm nominal|
|Range Accuracy:||+-.1 nautical miles or +-14% whichever is greater||Groundspeed Accuracy:||+-1 knot or +-1%, whichever is greater from 0 to 999 knots|
|Time-to-Station:||+-1 minute from 0 to 99 minutes||Search Time:||1.0 second nominal|
|Memory Time:||11 to 15 seconds||Maximum Altitude:||50,000 feet|
|Part Number||DPanel Mount DME Transceiver Description:|
|066-1088-00||Black face plate, 14/28 volt, non-TSO'd|
|066-1088-01||Silver Crown Plus version|
|Shop||Southeast Aerospace Inc.|
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact email@example.com
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.
For more information, please refer to these other Exchange FAQs
The part number for the terminal contact pin that is used on most Silver Crown units is 030-01107-0000. Previously, Honeywell (Bendix/King) offered them in preset amounts based on the unit that were being used with (ex. 030-01107-0064 for the KX-155). Currently, you simply purchase the amount of -0000 pins required.
As of 2010, the List Price for each contact pin is $5.98. Therefore, in most cases, it is less expensive to buy the entire unit installation kit.
