NSN: |
2920-00-085-3589 |
OEM: |
BendixKing |
Desc: |

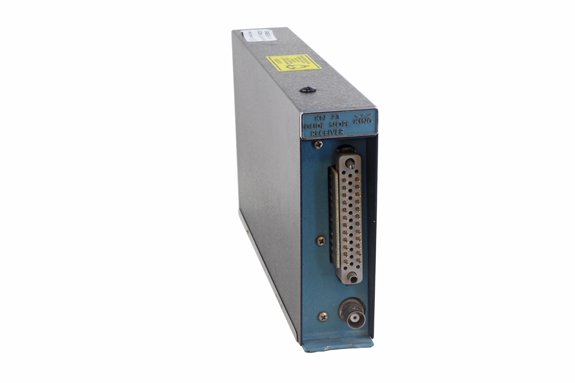

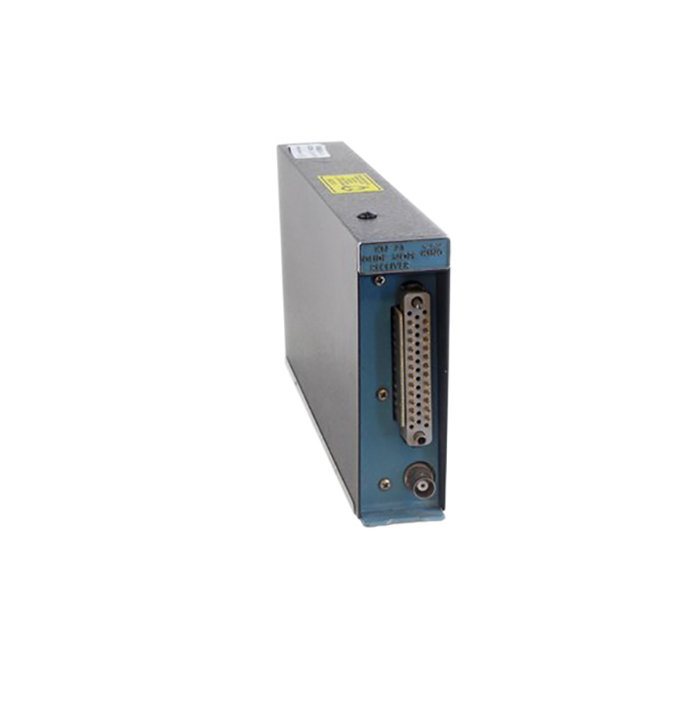

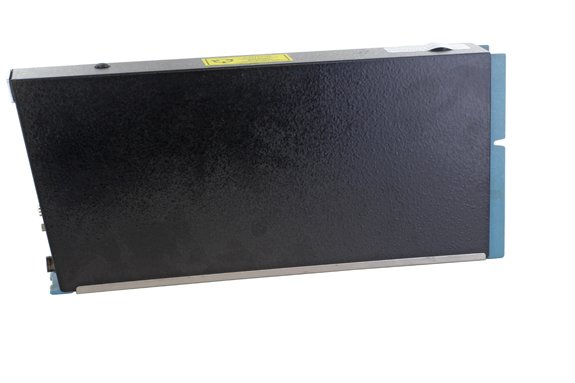

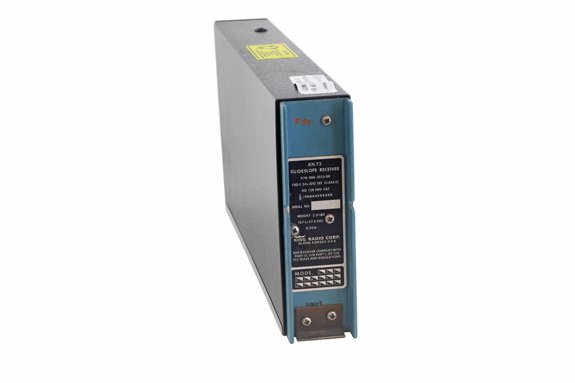

Glideslope Receiver |
FEATURES
SPECIFICATIONS
Size: | 1.55"W x 5.2"H x 11.25"L | Weight: | 2.0 lbs. |
TSO Categories: | C34c Operation Performance Category II; Class D; DO-138 Env. Cat. C/DANAAAXXXXXX | Number of channels: | 40 (150KHz spacing) |
Centering Accuracy: | Less than +10ua under all service conditions | Frequency Range: | 329.15MHz to 335.00MHz |
Temperature Range: | -40C to +55C for continuous operation | Mounting: | Rigid, any position |
Input Impedance: | 50 ohms | Sensitivity: | 40uv (hard) for 60% of standard deflection |
Loads: | Capable of operating eight 1000 ohm deviation loads and nine 1000 ohm alarm flag loads | Design: | Solid state remote mounted unit. Capable of operating with standard ARINC type meter loads |
Duty Cycle: | Continuous |
Part Number: | Description: |
---|---|
066-1033-00 | 14/28 volt, Glideslope Receiver |
Serial # | 8439 |
---|---|
Condition | SV |
Mods | 1-3 |
Tag Date | 11/16/16 |
Shop | Southeast Aerospace Inc. |
Warranty | 6 Months |
NSN: 2920-00-085-3589
Price | Condition | Status |
---|---|---|
$250.00 | SV OUTRIGHT | 1 IN STOCK |
