Part #: 066-01141-5201

Model: KT-71

NSN:

5821-01-421-6729

OEM:

BendixKing

Desc:

Digital Transponder

Part Number :


KT-71



FEATURES
  • Digital Panel Mounted Transponder with Mode A/C capability
  • Solid State
  • 4 knobs for code selection
  • Suitable for altitudes up to 50000 feet
  • Pilot-programmable easy-to-read, gas discharge display includes adjustments for dimming time and brightness levels
  • Display shows selected code and encoded altitude
  • Mode annunciator and reply indicator
  • Pushbutton VFR code
  • Remote-Ident switching
  • Self-test capability
  • Similar to KT-70 but DOES NOT include Mode S (Select) capability
  • TSO'd
  • Silver Crown Plus and CNI5000 version available (see table below)

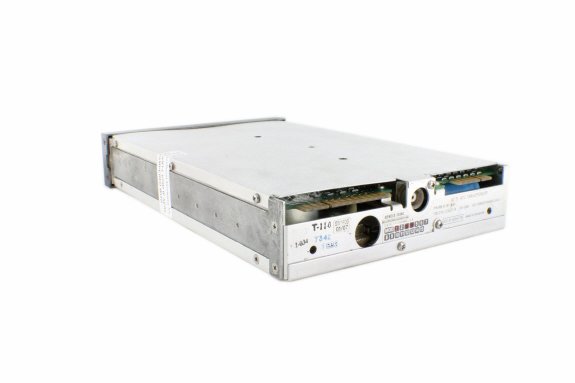

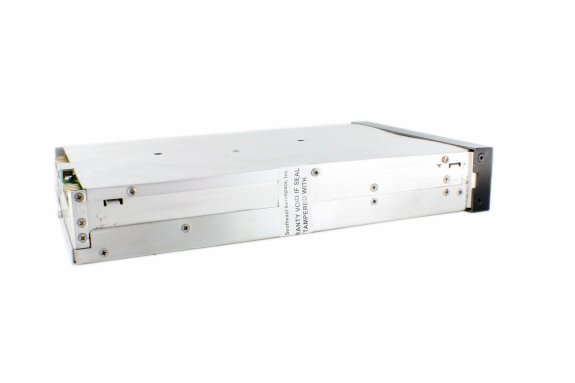

*Image shown is KT-70 due to similarities in appearance between units.



SPECIFICATIONS

Size: 6.25"W x 1.63"H x 10.0"L Weight: 3.90 lbs.
TSO: C74c, DO-181, DO-178A, DO-160B Temperature: -20 to +55C
Altitude: 50000 feet Display: Digital, Gas Discharged
Power Requirements: 11-33VDC, 35 W max Output Power: 200 watts peak pulse, minimum
Part Number: Description:
066-01141-5101 Silver Crown Version
066-01141-5201 Silver Crown Plus version with backlit bezel
066-01141-6101 Excluively for the CNI5000 radio package, version with 5V lighting but no bezel



066-01141-5101
- Digital Transponder

NSN: 5821-01-421-6729

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
066-01141-5201
- Digital Transponder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
066-01141-6101
- Digital Transponder (CNI5000)
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The CNI5000 is a system primarily used in the Cessna Citation Jet (CJ). This system utilized a main panel faceplate assembly for all communication, navigation, and transponder units. The radios (w/o bezels) install from the rear of the assembly. Therefore, CNI5000 versions of the Silver Crown product line (i.e. KN-53 -04, KT-70 -1101, KT-71 -6101, KY-196A -50, KY-196B -0201) do not have a bezel so that the radios can be installed in a stand alone installation. Furthermore, the CNI5000 radios have 5 volt lighting.

Click here to view the CNI5000 panel. (78KB image)
Click here to view a cockpit containing the CNI5000. (162KB image)

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.
