Part #:
Model: KT-79
Part Number :
Select part number above to view pricing and availability.
NSN: 5895-01-265-1091
| Price | Condition | Delivery | Action |
|---|---|---|---|
| $1,075.00 | SV OUTRIGHT | RFQ |
|
* Price & Availability valid as of 06/14/19 17:40:49 EDT *
SEA Repair Capabilities: Yes
| Price | Condition | Delivery | Action |
|---|---|---|---|
| RFQ | RFQ | RFQ |
|
* Price & Availability valid as of 06/14/19 17:40:49 EDT *
SEA Repair Capabilities: No

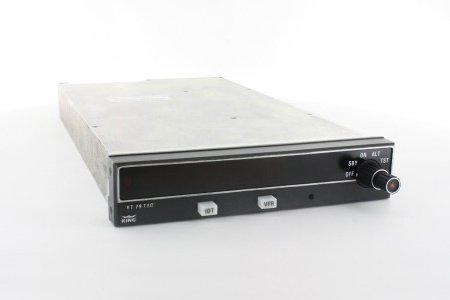

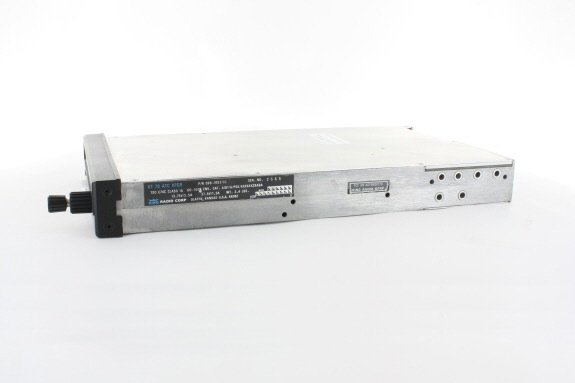

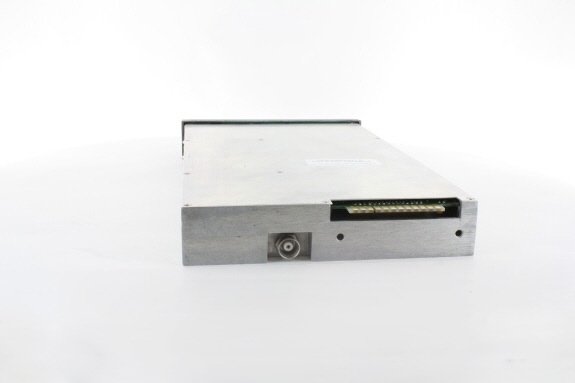

KT-79
FEATURES
- Digital, flat-pack ATC transponder
- Single knob used to select codes
- Simultaneous display of encoded altitude and ATC code
- Push button selection of VFR code
- Solid-state
- 250 watts peak nominal
- Operates from 11 to 33 Volts
SPECIFICATIONS
| Size: | 6.25"W x 1.3"H x 10.5"L | Weight: | 3.4 lbs. |
| TSO Compliance: | C74c Class 1A | Temperature: | -20 to +55C |
| Altitude: | Up to 50000 feet | Transmitter Frequency: | 1090 MHz +-3MHz |
| Receiver Frequency: | 1030 MHz +-3MHz | Transmitter Power: | 200 watts peak pulse, minimum |
| Receiver Sensitivity: | -74dBm nominal | Mode A Capability: | 4096 codes plus special IDENT pulse |
| Mode C Capability: | Interfaces with ARINC altitude digitizer, reporting in 100 ft. increments from -1000 to 62700 feet | Side Lobe Suppression: | 3 pulse |
| Suppression Input: | (Unilateral) 10v (Bendix/King format) | Suppression Input/Output: | (Bilateral) ARINC Bilateral suppression |
| Part Number | Digital ATC Transponder Description |
|---|---|
| 066-1053-00 | see details above |
066-1053-00
- Digital Transponder
NSN: 5895-01-265-1091
| Price | Condition | Delivery |
|---|---|---|
| $1,075.00 | SV OUTRIGHT | RFQ |
SEA Repair Capabilities: Yes
066-1053-02
- ATC Xpdr
| Price | Condition | Delivery |
|---|---|---|
| CALL OR RFQ | CALL OR RFQ | CALL OR RFQ |
SEA Repair Capabilities: No
