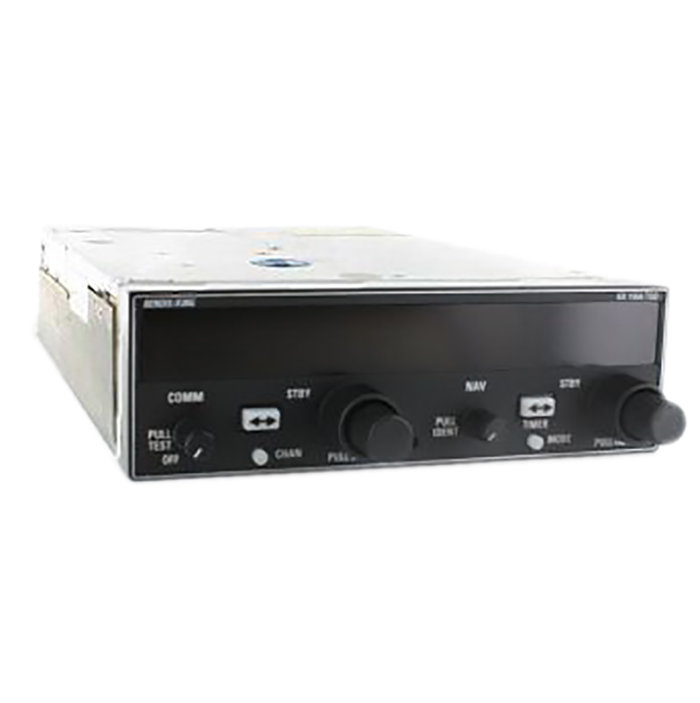

Picture of product KX-155A

Part #: 069-01032-0201

Model: KX-155A

NSN:

1680-01-597-7852

OEM:

BendixKing

Desc:

Nav/Comm SILVER CROWN PLUS NAV/COMM

Part Number :
Bendix King logo

KX-155A



FEATURES

  • Solid state, gas discharge digital display NAV/COMM Transceiver
  • 760 frequency COMM available with 32 programmable COMM channels*
  • 200-channel NAV receiver
  • 40-channel glideslope receiver (version dependent - see table below)
  • 10 watts power output
  • 28 volt version available only
  • FM immune compliant for ICAO Annex 10 (European use)
  • Push button frequency flip-flop with display of active and standby NAV and COMM frequencies
  • Remote channel increment capability and fli-flop tuning for applications where pilot cannot take hands off yoke such as helicopter operators*
  • Stuck microphone alert allows COMM transceiver to automatically shut down if microphone is keyed continuously for more than 33 seconds*
  • Bearing-to-station mode and radial-from-station mode on display*
  • Includes elapsed-time and approach timer that can be programmed to count either up or downwards*
  • Built-in 4 Ohm audio amplifier standard*
  • Internal Course Deviation Indicator (CDI) included for such times when external CDI is being driven by GPS receiver*
  • Backlighting of bezel nomenclature and knobs standard*
  • New display doubles amount of available presentation space from one line to two
  • Used with KI-203/208 VOR/LOC or KI-204/209 VOR/LOC/GS indicators or can be used with KI-525A HSI as part of the KCS-55A compass system (KN-72 VOR/LOC converter required)
  • TSO'd
* denotes new features of KX-155A from KX-155 units



SPECIFICATIONS
Size: 6.25"W x 2.00"H x 10.16"L Weight: 4.0 (w/ GS & amp)
TSO Compliance: C37d,C38d,C40c,C36e,C34e Env. Categories: DO-160c, A1D1/-BA/BMNPS/XXXXXXZB/AB/BATAXXX
Altitude: 50,000 feet Temp. Range: -20 to 55C
Frequency Tolerance (COMM): 0.003% to meet DO-186A Class C&D Power Output (COMM): 10 watts nominal
Modulation (COMM): 70% modulation capability with 90% limiting, less than 15% distortion at 85% modulation. Audio leveling circuit used. Sidetone Output (COMM): Adjustable up to 100mW into 500 ohm headphones
Harmonic Content: -56 dBc, min. Typically greater than -60 dBc Receiver Sensitivity (COMM): 2uV (hard) or less for 6 dB S+N/N with 1000 Hz tone modulated 30%
Receiver Selectivity (COMM): (25Khz SEL): 6dB bandwidth +- 8.4kHz, 60dB bandwidth +- 22.0kHz; Squelch: Automatic squelch with manual disable and carrier squelch override. Both squelch adjustments are externally accessible
Spurious Response (COMM): at least 60dB down TSO Compliance (NAV): C36c (DO-131, Class D); C40a (DO-153, CAT A and B)
Applicable Documents (NAV): RTCA DO-195, RTCA DO-196, RTCA DO-160C, EUROCAE ED-22B & ED-46B Frequency Tolerance (NAV): 0.0007%
Spurious Responses (NAV): at least 60dB down VOR Course Accuracy: Two sigma limit 3 deg. as specified in RTCA DO-153
Audio Output (NAV): With a 1 kHz tone 30% modulation at least 100mW output into 500 ohm loads Audio Response (NAV): Less than 6dB variation from 350Hz to 2500Hz
LOC Centering: Two sigma limit +-9.9 uA as specified in RTCA DO-195 Applicable Documents (GS): RTCA DO-192, DO-160C EUROCAE ED-47B
Part Number: Description:
069-01032-0101 28V, Glideslope Receiver, TSO, Silver Crown Plus Nav/Comm
069-01032-0201 28V, NO Glideslope Receiver, TSO, Silver Crown Plus Nav/Comm



Serial # 25292
Condition OH
Mods 1-13
Tag Date 02/14/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
069-01032-0101
- Nav/Comm w/ Glideslope (28V)

NSN: 1680-01-597-7848

Price Condition Status
REQUEST OH OUTRIGHT IN WORK
069-01032-0201
- Nav/Comm w/o GS (28V)

NSN: 1680-01-597-7852

Price Condition Status
$4,250.00 OH OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

On the KX-155A and KX-165A radios, only the active part of the COMM display is visble while in direct tune mode.  This mode is also called ACTIVE ENTRY is another method of entering an operating frequency into the radio and is accessed by pushing and holding the COMM transfer button for 2 or more seconds.

KX-155A PN 069-01032-0101 and 069-01032-0201 with serial numbers between 29161 and 29321 have Mod 13 already installed therefore include the most current Liquid Crystal Display instead of the original Gas Discharge Display. It should be noted that the Mod 13 may or may not be marked on the PN label on the unit, however that serial number range was manufactured with the LCD.

For the KX-165A, Mod 4 incorporates the LCD upgrade. The applicability for the for the modification reads as follows from the Honeywell service bulletin:

'...applicable to the KX-165A P/N 069-01033-0101 with S/N 5101 and below, without Mod 4 installed...P/N 069-01033-0201 S/N 12941 and below without Mod 4 installed...NOTE: P/N 069-01033-0101 with SNs between 4491 and 5101 have Mod 4 identified on on the mod section of the SN label. P/N 069-01033-0201 with SNs between 12671 and 12941 have Mod 4 identified on the mod section of the SN tag. On these units, the Mod is fully included but the P/N label on some sub-assemblies is incorrect.'

View the LCD display on a KX-165A at https://youtu.be/oxerbdqWCi0.

Yes, however certain features in the A radios will not be available if the original non-A connector is used. The A radios do accommodate a different connector than the original non-A radios as the A radios include additional features. The A radio's bottom connector has a notch in it so that it can accommodate the smaller, original non-A connector. Therefore, when replacing a KX-155 or KX-165 with a KX-155A or KX-165A, most major features will remain the same with the exception of the additional features available when using the A connector. Most significantly, the bezel backlighting feature available on the A radios will not be functional when doing this slide-in replacement using the original non-A connector. Both units utilize the same mounting rack (P/N 047-04874-0001).
The KX-155A is part of the Silver Crown Plus product line which includes a backlit bezel so that the lettering on the faceplate can be seen at night.

In addition, the KX-155A adds the following features and functions:
  • Remote channel increment capability and flipflop tuning for applications where pilot cannot take hands off yoke such as helicopter operators
  • Internal Course Deviation Indicator (CDI) included for such times when external CDI is being driven by GPS receiver
  • Stuck microphone alert allows COMM transceiver to automatically shut down if microphone is keyed continuously for more than 33 seconds
  • Bearing-to-station mode and radial-from-station mode on display
  • Includes elapsed-time and approach timer that can be programmed to count either up or downwards
  • New display doubles amount of available presentation space from one line to two
There are several Service Bulletin related issues with the KX-155A. Several Service Bulletins are required during a unit's next repair or at the earliest opportunity. Service Bulletin 11 addresses the repair of the KX-155A if the transmitter should fail. This Service Bulletin requires the replacement of the transmitter. Units with serial numbers 24100 and below are affected. Honeywell requires that units affected by this Service Bulletin be returned to Honeywell. If the KX-155A unit is still under new product warranty, then Honeywell will issue warranty credit or payment. If the unit is not under warranty, then Honeywell will not perform the service bulletin and deems the unit unrepairable.

From a purchasing standpoint, Southeast Aerospace cannot purchase units under serial number 24100 since we offer a 6 month warranty when these units are sold. Since there is the possibility that the transmitter in the KX-155A could fail within 6 months, it is not practical to obtain units below serial number 24100.
Navigation (Nav) and Communication (Comm) radio receivers and transceivers are available as separate, individual radios or as a combined Nav/Comm unit.

A Nav/Comm unit is sometimes more economical in price than the 2 separate Nav and Comm radios and usually requires less panel space.

Obviously, one disadvantage to the combined Nav/Comm unit is in the case of unit failure you lose both nav and comm functions since the entire unit is removed.
KN-53 Nav:


KY-196A Comm:


KX-155 Nav/Comm:
