Part #:

Model: PS-440

OEM:

BendixKing

Desc:

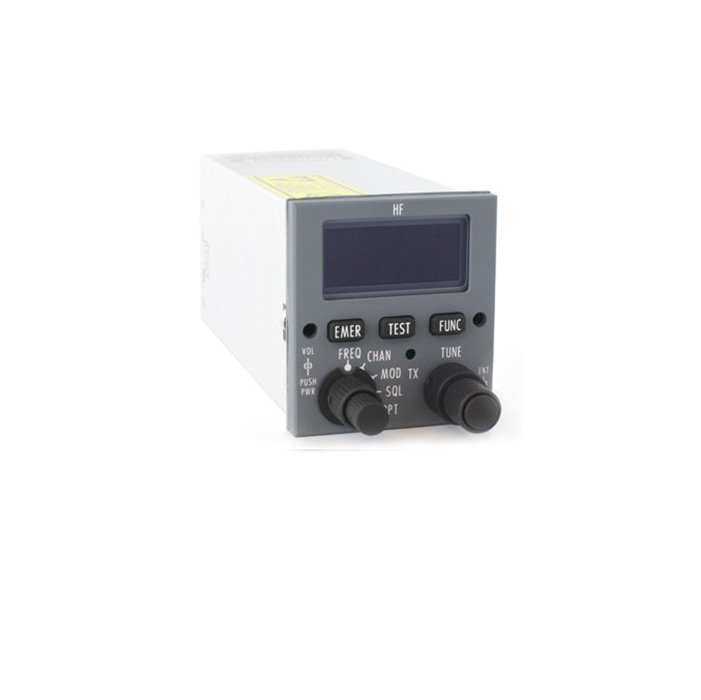

HF Control

Part Number :



PS-440



FEATURES

  • Control/Display unit for use with KHF-1050 HF system
  • Used in conjunction with KAC-1052 antenna coupler, KPA-1052 power amplifier, and KRX-1053 receiver/exciter
  • Provides control of a single or dual HF communications radio system
  • Full operational control is accomplished via dedicated low speed, digital ARINC 429 data bus
  • Includes emergency channel access button for easy access to emergency channels
  • Produced by Gables Engineering for Honeywell
  • Built-in functional test
  • 100 programmable channels
  • Modesl available with white, amber, or Night Vision Goggle (NVG) display (see table below)
  • Models available with black or gray bezel (see table below)



SPECIFICATIONS

Size: 5.375"L x 2.375"W x 2.625"H Weight: 1.1 lbs.
Temperature: -20 to 70C Power Requirements: 28 VDC at 7 watts, max
TSO: C31d, C32d Mounting: Captive mounting ears
ARINC 719: Airborne HF Comm Transceiver ARINC 720: Digital Frequency/Function Selection
ARINC 429: Mark 33 Digital Information Transfer System (DITS) ARINC 753: HF Datalink System
Part Number:  Description:
071-01605-0101 Gray bezel, white display color, Gables PN G7511-01
071-01605-0201 Black bezel, white display color, Gables PN G7511-02
071-01605-1101 Gray bezel, amber display color, Gables PN G7511-101
071-01605-1201 Black bezel, amber display color, Gables PN G7511-102
071-01605-2101 Gray bezel, NVG display
071-01605-2201 Black bezel, NVG display



071-01605-0101
- G7511-01 HF Control (Gray, White Display)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
071-01605-0201
- G7511-102 HF Control (Black, White Display)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
071-01605-1101
- G7511-101 HF Control (Gray, Amber Display)
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
$11,150.00 NEW OUTRIGHT REQUEST LEAD TIME
071-01605-1201
- G7511-102 HF Control (Black, Amber Display)

NSN: 5821-01-555-4225

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
071-01605-2201
- HF Control (NVG)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
