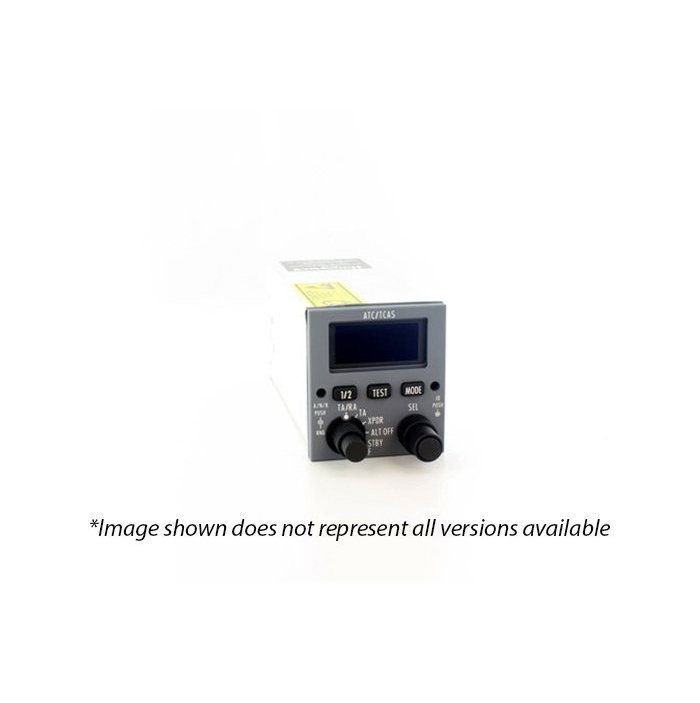

Model: PS-550

BendixKing - Control
360
360
360
product 360 image
360
product image
Part Number :


PS-550
FEATURES
  • Control for use with MST-67A Enhanced Mode S Transponder (-2001/2101 versions)
  • Complies with Enhanced Elemenatary Surveillance mandate for Mode S transponders in conjunction with MST-67A (-2001/2101)
  • FID pushbutton allows entry of alpha numeric flight ID and annunciates FID on display
  • Compatible with the Collins TDR-94D transponder
  • Contains all controls required for transponder operation including TEST, STANDBY, ON (transponder), ALTITUDE, VFR, and IDENT
  • TCAS Range Switch selects the TCAS nautical mile traffic display according to the installed discrete range option (see supplemental info below)
  • Can also serve as aircraft's TCAS controller for TCAS equipped aircraft
  • Microprocessor based
  • ABOVE/NORMAL/BELOW selects relateive altitude display limits for non-threat category aircraft on traffic display
  • TA selection places the TCAS in the Traffic Advisory mode (TCAS I & II)
  • TA/RA selection places the TCAS in the Traffic Advisory/Resolution Advisory mode (TCAS II)
  • FL (TCAS FLight Level) selection causes the TCAS indicator to change displayed altitude from Relative Altitude to absolute altitude
  • Lamps can be powered by 5 Vac, 5 Vdc or 28V dimming source
  • Black or gray faceplate available (see table below)
  • White, Amber, or Night Vision Goggle (NVG) display available (see table below)
  • Versions available that provide control of two, individually selected transponders (see table below)
  • Versions available with ON/OFF switch to turn control unit ON or OFF (see table below)
  • Versions available compatible with TCAS I CAS66A (see table below)
  • Versions available compatible with TCAS II CAS67A (see table below)
SUPPLEMENTAL INFORMATION: Discrete options for TCAS traffic display range control include:
  • "Normal" traffic display range control include ranges of 3,5,10,15 nm
  • "Extended" traffic display range control include ranges of 3,5,10,15,20,40 nm
  • Range Disabled
SPECIFICATIONS
Size: 2.375"W x 2.625"H x 5.375"L Power Requirements: 28VDC at 7 watts max
Temperature: -20 to 70C Cooling: No forced cooling required
TSO: C112, C119b
Part Number Enhanced Mode S Transponder Control Description (TCAS II Compatible):
071-01619-0001 Gray faceplate, 5/28V lighting, white display, dual transponder control, On/Off switch
071-01619-0002 Black faceplate, 5/28V lighting, white display, dual transponder control, On/Off switch
071-01619-0003 Gray faceplate, 5/28V lighting, white display, On/Off switch
071-01619-0004 Black faceplate, 5/28V lighting, white display,  On/Off switch
071-01619-0005 Gary faceplate, 5/28V lighting, white display, dual transponder control
071-01619-0006 Black faceplate, 5/28V lighting, white display, dual transponder control
071-01619-0007 Gray faceplate, 5/28V lighting, white display
071-01619-0008 Black faceplate, 5/28V lighting, white display
071-01619-0011 Gray faceplate, 5/28V lighting, white display, dual transponder control, On/Off switch, TCAS,  range control (see note above)
071-01619-0012 Black faceplate, 5/28V lighting, white display, dual transponder control, On/Off switch, TCAS,  range control (see note above)
071-01619-0013 Gray faceplate, 5/28V lighting, white display, On/Off switch, TCAS,  range control (see note above)
071-01619-0014 Black faceplate, 5/28V lighting, white display, TCAS,  range control (see note above)
071-01619-0015 Gray faceplate, 5/28V lighting, white display, dual transponder control, TCAS,  range control (see note above)
071-01619-0016 Black faceplate, 5/28V lighting, white display, dual transponder control, TCAS,  range control (see note above)
071-01619-0017 Gray faceplate, 5/28V lighting, white display, TCAS
071-01619-0018 Black faceplate, 5/28V lighting, white display, TCAS,  range control (see note above)
071-01619-0021 Gray faceplate, 5/28V lighting (see note above), white display, dual transponder control, On/Off switch, range control (see note above)
071-01619-0022 Black faceplate, 5/28V lighting (see note above), white display, dual transponder control, On/Off switch, range control (see note above)
071-01619-0023 Gray faceplate, 5/28V lighting (see note above), white display, single transponder control, On/Off switch, range control (see note above)
071-01619-0024 Black faceplate, 5/28V lighting (see note above), white display, single transponder control, On/Off switch, range control (see note above)
071-01619-0025 Gray faceplate, 5/28V lighting (see note above), white display, dual transponder control, No On/Off switch, range control (see note above)
071-01619-0026 Black faceplate, 5/28V lighting (see note above), white display, dual transponder control, No On/Off switch, range control (see note above)
071-01619-0027 Gray faceplate, 5/28V lighting (see note above), white display, single transponder control, No On/Off switch, range control (see note above)
071-01619-0028 Black faceplate, 5/28V lighting (see note above), white display, single transponder control, No On/Off switch, range control (see note above)
071-01619-0121 Gray faceplate, 5/28V lighting (see note above), amber display, dual transponder control, On/Off switch, range control (see note above)
071-01619-0122 Black faceplate, 5/28V lighting (see note above), amber display, dual transponder control, On/Off switch, range control (see note above)
071-01619-0123 Gray faceplate, 5/28V lighting (see note above), amber display, single transponder control, On/Off switch, range control (see note above)
071-01619-0124 Black faceplate, 5/28V lighting (see note above), amber display, single transponder control, On/Off switch, range control (see note above)
071-01619-0125 Gray faceplate, 5/28V lighting (see note above), amber display, dual transponder control, No On/Off switch, range control (see note above)
071-01619-0126 Black faceplate, 5/28V lighting (see note above), amber display, dual transponder control, No On/Off switch, range control (see note above)
071-01619-0127 Gray faceplate, 5/28V lighting (see note above), amber display, single transponder control, No On/Off switch, range control (see note above)
071-01619-0128 Black faceplate, 5/28V lighting (see note above), amber display, single transponder control, No On/Off switch, range control (see note above)
071-01619-0221 Gray faceplate, 5/28V lighting (see note above), NVG display, dual transponder control, On/Off switch, range control (see note above)
071-01619-0222 Black faceplate, 5/28V lighting (see note above), NVG display, dual transponder control, On/Off switch, range control (see note above)
071-01619-0223 Gray faceplate, 5/28V lighting (see note above), NVG display, single transponder control, On/Off switch, range control (see note above)
071-01619-0224 Black faceplate, 5/28V lighting (see note above), NVG display, single transponder control, On/Off switch, range control (see note above)
071-01619-0225 Gray faceplate, 5/28V lighting (see note above), NVG display, dual transponder control, No On/Off switch, range control (see note above)
071-01618-0226 Black faceplate, 5/28V lighting (see note above), NVG display, dual transponder control, No On/Off switch, range control (see note above)
071-01619-0227 Gray faceplate, 5/28V lighting (see note above), NVG display, dual transponder control, No On/Off switch, range control (see note above)
071-01619-0228 Black faceplate, 5/28V lighting (see note above), NVG display, single transponder control, No On/Off switch, range control (see note above)




PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET





071-01619-0001
- Mode STransponder Control
Price Condition Delivery
$14,470.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0002
- Mode STransponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0003
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0004
- Mode S Transponder Control
Price Condition Delivery
$14,470.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0005
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0006
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0007
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0008
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0011
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0012
- TCAS/Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0013
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0014
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0015
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0016
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0017
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0018
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0021
- TCAS II Control
Price Condition Delivery
$14,560.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0022
- TCAS II Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0023
- TCAS II Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0024
- TCAS II Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0025
- TCAS II Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0026
- TCAS II Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0027
- TCAS II Contol
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0028
- TCAS II Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0101
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0102
- Mode S Transponder Control
Price Condition Delivery
$10,820.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0103
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0104
- Mode S Transponder Control
Price Condition Delivery
$14,470.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0105
- Mode S Transponder Control
Price Condition Delivery
$14,470.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0106
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0107
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0108
- Mode S Transponder Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0111
- TCAS I Control
Price Condition Delivery
$10,145.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0112
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0113
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0114
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0115
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0116
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0117
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0118
- TCAS I Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0121
- TCAS II Control
Price Condition Delivery
$15,415.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0122
- TCAS Control
Price Condition Delivery
$13,950.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0123
- TCAS II Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0124
- TCAS II Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0125
- Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0126
- TCAS II Control
Price Condition Delivery
$14,470.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0127
- TCAS II Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0128
- TCAS II Control
Price Condition Delivery
$10,460.00 NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0201
- Mode S Transponder Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0202
- Mode S Transponder Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0203
- Mode S Transponder Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0204
- Mode S Transponder Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0205
- Mode S Transponder Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0206
- Mode S Transponder Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0207
- Mode S Transponder Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0208
- Mode S Transponder Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0211
- TCAS I Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0212
- TCAS I Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0213
- TCAS I Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0214
- TCAS I Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0215
- TCAS I Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0216
- TCAS I Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0217
- TCAS I Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0218
- TCAS I Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0221
- TCAS II Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0222
- TCAS II Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0223
- TCAS II Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0224
- TCAS II Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0225
- TCAS II Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

071-01619-0226
- TCAS II Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0227
- TCAS II Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

071-01619-0228
- TCAS II Control
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

There are no Frequently Asked Questions at this time. Please contact us at questions@seaerospace.com if you have any questions for us to answer.
