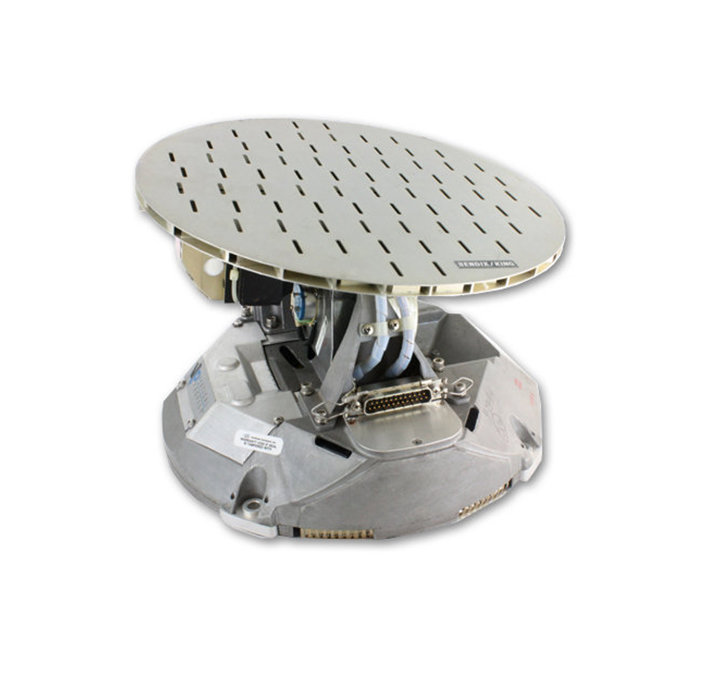

RS-181A
FEATURES
- Radar Sensor used in 2-piece RDS-82 color radar system
- 1 kw peak power
- Provides radar stabilization for combined pitch, roll and tilt angles of up to +-25 degrees
- Available with 10 or 12 inch antenna plate
- Requires 28 VDC operating voltage
- Similar to the RDS-81 but adds full EFIS interface
- Vertical Profile (VP) version available scans storm cells vertically giving ability to study shape of as well as leading edge of storm
- Able to be used in place of RS-811A Sensor used in RDS-81 System
- Able to be interfaced to KMD-850 MFD (-00 and -30 units only)
- Direct Upgrade to ART2000
SPECIFICATIONS
| TSO Compliance: | TSO C63b Class 7, DO-173, DO-160A Env Cat F2A/JLY/XXXXXXB/BE/ABA | IF Bandwidths: | 1.6 MHz and 0.6 MHz |
| Gain: | 135 dB minimum | AGC: | 20 dB min range |
| STC: | Microprocessor programmed for each range | Input Power: | 28VDC at 2.7 amps continuous |
| Dimensions: | Base 10.32" | Temperature Range: | -55 to +70 deg. C |
| Altitude: | 55000 | Weight: | 10.5 lbs. |
| Part Number | Radar Sensor Description: |
|---|---|
| 071-1315-00 | Basic version, see details above |
| 3614077-8101 | Bendix Alternate # of 071-1315-00 |
| 071-1315-10 | Same as -00 with limited VP capabilities (no VP track) |
| 071-1315-30 | Full Vertical Profile version |
071-1315-00
- Radar Sensor
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
071-1315-30
- Radar Transceiver
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
| RFQ | SV EXCHANGE | RFQ |
3614077-8101
- Radar Transceiver
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
3614077-8130
- Radar Sensor
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
3614077-8131
- Radar Sensor
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
Are there any new radar sensors that directly replace the older RS-181A?
Yes, there is an adapter available to upgrade to the new ART-2000. Please see Southeast Aerospace's upgrade solution - (ART-2000 Upgrade flyer)
What documents support the direct upgrade path from the RS-181A/RS-811A to the ART-2000 System?
The Bendix/King RDR 2000 Installation Manual (006-00643-0007), on page 1-1 states:
"The ART 2000 can be installed as a replacement (with a connector change) for the RS 181A or the RS 811A in an existing RDS 81 or RDS 82 installation. If installed with an existing IN 812A, however, Vertical Profile and tracking are not supported by the IN 812A. If using an IN 182A that is not Vertical Profile compatible, the Vertical Profile feature of the ART will not be supported. IN 182A indicators with part numbers of 066-3084-10 and 066-3084-11 are not compatible with the RDR 2000 system."
In addition, there is a "RS-181A/811A to ART-2000 Harness Connector Replacement" diagram in the RDR 2000 Installation Manual on page 2-99, Figure 2-49.
"The ART 2000 can be installed as a replacement (with a connector change) for the RS 181A or the RS 811A in an existing RDS 81 or RDS 82 installation. If installed with an existing IN 812A, however, Vertical Profile and tracking are not supported by the IN 812A. If using an IN 182A that is not Vertical Profile compatible, the Vertical Profile feature of the ART will not be supported. IN 182A indicators with part numbers of 066-3084-10 and 066-3084-11 are not compatible with the RDR 2000 system."
In addition, there is a "RS-181A/811A to ART-2000 Harness Connector Replacement" diagram in the RDR 2000 Installation Manual on page 2-99, Figure 2-49.
