Model: 313N-2D

Collins Aerospace - Nav/Comm Control

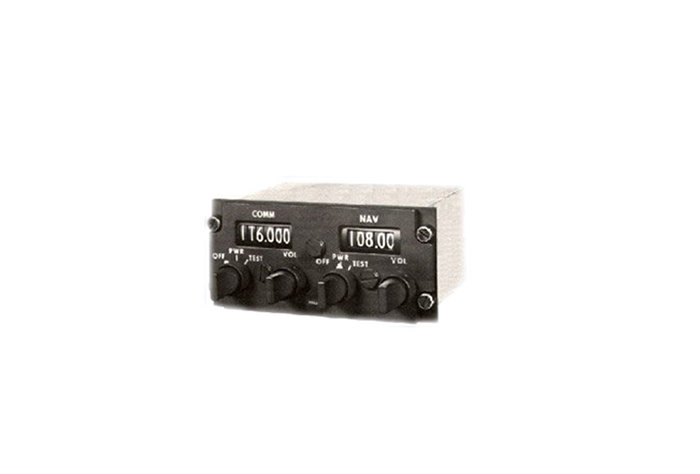

product image
Part Number :


313N-2D
FEATURES
  • Analog control for airborne communications, navigation, and DME
  • Digital binary (2x5 wire) frequency selection as per ARINC 410
  • Models available with 20 or 40 channel ILS capability (see table below)
  • Models available with frequency range from 118 or 116 TO 135,149, or 151 (see table below)
  • Models available with black knobs and either black or gray panel colors (see table below)
  • Models available with 5 or 28 Volt and red or white lighting (see table below)
  • Product improved versions (-5XX series) available with modular switch assemblies and flexible printed circuit board to replace most of point-to-point wiring and seperate switch wafers used in -00X models (see table below)
  • -5XX series contain internal diodes for tandem tuning (see table below)



SPECIFICATIONS
Environmental: RTCA paper 100-54/DO-60; RTCA paper 120-61/DO-108 TSO: C34a, C36a, C37a, C38a, C40a, C66
Size: 2.625"H x 5.750"W x 5.00"L Weight: 1.9 lbs.
Temperature: -55 to 70C (operating) Altitude: Up to 45000 feet (operating)
Operating Power: 27.5 VDC +-10% Freq. Selection: ARINC 410, digital binary code (2x5 wire)
Part NumberNav/Comm/DME Control Description:
522-2447-005 20 ch. ILS, No DME control, comm freq. range 118-135.975, black panel, 28V red lighting
522-2447-025 20 ch. ILS, DME control, comm freq. range 118-135.975, black panel & knobs, 28V red lighting
522-2447-035 20 ch. ILS, DME control, comm freq. range 116-149.975, black panel & knobs, 28V red lighting
522-2447-048 20 ch. ILS, DME control, comm freq. range 118-135.975, black panel & knobs, 28V white lighting
522-2447-050 20 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 28V red lighting
522-2447-051 20 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 28V white lighting
522-2447-056 20 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 28V red lighting
522-2447-057 20 ch. ILS, DME control, comm freq. range 116-151.975, gray panel, black knobs, 5V white lighting
522-2447-058 20 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 28V white lighting
522-2447-059 20 ch. ILS, DME control, comm freq. range 116-151.975, gray panel & knobs, 28V clear lighting
522-2447-225 40 ch. ILS, DME control, comm freq. range 118-135.975, black panel & knobs, 28V red lighting
522-2447-235 40 ch. ILS, DME control, comm freq. range 116-149.975, black panel & knobs, 28V red lighting
522-2447-248 40 ch. ILS, DME control, comm freq. range 118-135.975, black panel & knobs, 28V white lighting
522-2447-250 40 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 28V red lighting
522-2447-251 40 ch. ILS, DME control, comm freq. range 118-135.975, black panel & knobs, 28V white lighting
522-2447-256 40 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 28V red lighting
522-2447-257 40 ch. ILS, DME control, comm freq. range 116-151.975, gray panel, black knobs, 5V white lighting
522-2447-259 40 ch. ILS, DME control, comm freq. range 116-151.975, gray panel & knobs, 28V clear lighting
522-2447-260 40 ch. ILS, DME control, comm freq. range 118-135.975, black panel & knobs, 28V red lighting
522-2447-263 40 ch. ILS, DME control, comm freq. range 117-135.975, black panel & knobs, 28V red lighting
522-2447-264 40 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 28V red lighting
522-2447-269 40 ch. ILS, DME control, comm freq. range 118-135.975, black panel & knobs, 5V white lighting
522-2447-270 40 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 5V clear lighting
522-2447-271 40 ch. ILS, DME control, comm freq. range 118-135.975, black panel & knobs, 28V white lighting
522-2447-272 40 ch. ILS, DME control, comm freq. range 117-135.975, black panel & knobs, 5V clear lighting
522-2447-273 40 ch. ILS, DME control, comm freq. range 116-151.975, gray panel & knobs, 5V white lighting
522-2447-556 40 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 28V red lighting with product improvements as above
522-2447-557 40 ch. ILS, DME control, comm freq. range 116-151.975, gray panel, black knobs, 5V white lighting, with product improvements as above
522-2447-563 40 ch. ILS, DME control, comm freq. range 117-135.975, black panel & knobs, 28V red lighting with with product improvements as above
522-2447-564 40 ch. ILS, DME control, comm freq. range 116-151.975, black panel & knobs, 28V red lighting with product improvements as above
522-2447-571 40 ch. ILS, DME control, comm freq. range 118-135.975, black panel & knobs, 28V white lighting with product improvements as above
