Part Number :


313N-5
FEATURES

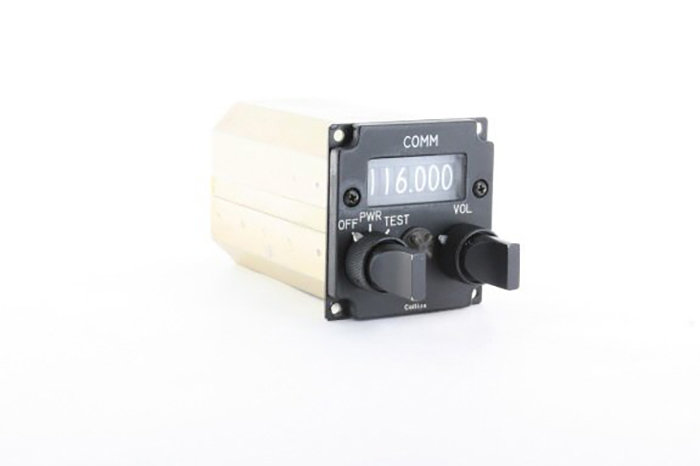

  • VHF communications control typically used with VHF-20B Transceivers
  • Tunes frequency range of 116.000 to 151.975 (most models) - see table below
  • Product improved versions (-5XX series) available with modular switch assemblies and flexible printed circuit board to replace most of point-to-point wiring and seperate switch wafers used in -00X models (see table below)
  • Models available with 5 or 28V, red or white lighting (see table below)
  • Frequency selected by two knobs
  • Includes volume control, power, and test control knobs
  • Similar in appearance and function to 313N-5A control but DOES have extended frequency range tuning capability
  • -5XX series contain internal diodes for tandem tuning (see table below) PLEASE NOTE: All parallel tuning control heads, including the 313N( ) series, CTL-20, and CTL-21 controls, are not capable of providing 8.33 kHz tuning. These controls must be replaced with an 8.33 kHz capable control.



SPECIFICATIONS
Frequency: 116.000-149.975 MHz (-000, 500 models); 116.000-151.975 MHz (-001 thru 004 models, -501 thru 504 models) Lighting: 5Vac or 27.5Vac red or white
Dimensions: 2.625"H x 2.5"W x 3.78"L Weight: 1.1 lbs.
Part NumberExtended Range Communications Control Description:
522-2599-000 28V dc red lighting (0.12A current); 116.000-149.975 MHz
522-2599-001 28V dc red lighting (0.12A current); 116.000-151.975 MHz
522-2599-002 5V ac red lighting (0.6A current); 116.000-151.975 MHz
522-2599-003 28V dc white lighting (0.12A current); 116.000-151.975 MHz
522-2599-004 5V ac white lighting (0.6A current); 116.000-151.975 MHz
522-2599-500 28V dc red lighting (0.12A current), w/product improvements as mentioned above; 116.000-149.975 MHz
522-2599-501 28V dc red lighting (0.12A current), with product improvements as mentioned above and internal diodes for tandem tuning; 116.000-151.975 MHz
522-2599-502 5V ac red lighting (0.6A current), with product improvements as mentioned above and internal diodes for tandem tuning; 116.000-151.975 MHz
522-2599-503 28V dc white lighting (0.12A current), with product improvements as mentioned above and internal diodes for tandem tuning; 116.000-151.975 MHz
522-2599-504 5V ac white lighting (0.6A current), with product improvements as mentioned above and internal diodes for tandem tuning; 116.000-151.975 MHz



522-2599-00
- COMM CONTROL
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

522-2599-000
- VHF Comm Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

522-2599-001
- VHF Comm Control

NSN: 5820-00-480-3247

Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

522-2599-002
- VHF Comm Control

NSN: 5826-01-136-7854

Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

522-2599-003
- VHF Comm Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

522-2599-004
- VHF Comm Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

522-2599-203
- VHF Comm Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

522-2599-501
- VHF Comm Control

NSN: 5820-01-293-4170

Price Condition Delivery
$1,750.00 SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

522-2599-503
- VHF Comm Control

NSN: 5821-21-881-6436

Price Condition Delivery
$750.00 OH OUTRIGHT RFQ

SEA Repair Capabilities: Yes

522-2599-504
- VHF Comm Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes
