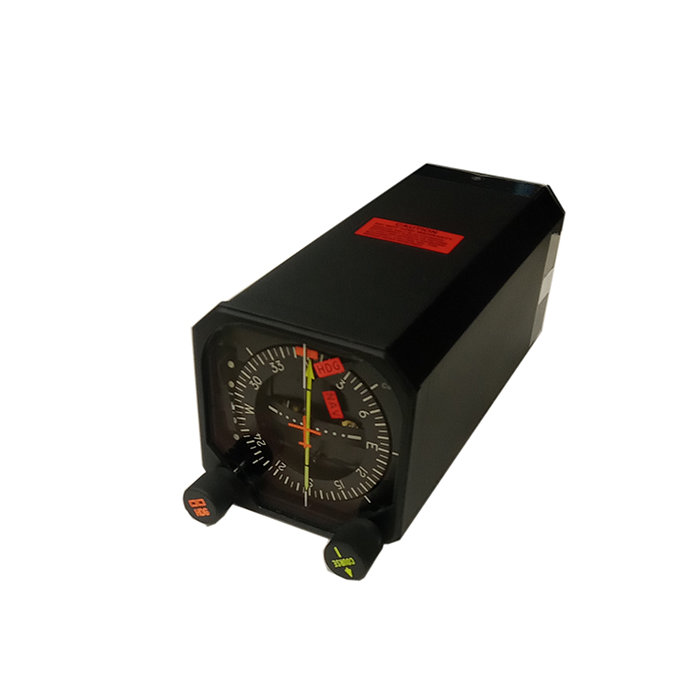

Part Number :


331A-3G
FEATURES
  • Course Indicator typically used in PN-101 Pictorial Navigation System
  • Provides controls for course and heading selection
  • Contains outputs for autopilot or flight director, VOR Receiver, and additional compass loads
  • All models contain bootstrap synchro as additional source of slaved gyro heading information (except -000 model)
  • May be front or rear mounted
  • Models available with or without internal lighting (see table below)
  • Internally lighted models available with 5 or 28 Volt, white, blue-white, or red lighting (see table below)
  • Models available w/ EZ/ORZ choke to enable usage w/ 30 or 400Hz OBS resolvers (see table below)
  • Model available with gray face color (all other models black)
  • Similar to 331A-3F indicator but 331A-3G DOES contain course datum, heading, or bootstrap synchros for autopilot tie-in and additional source of slaved gyro heading information
SPECIFICATIONS
Dimensions: 3.175"W x 3.175"H x 6.5"L (-005+ versions 6.730"L) Weight: 3.4 lbs.
Altitude: -1000 to 40,000 feet Magnetic Effect: 5 degrees max deflection of 1-1/2 inch bar magnetic at a distance of 12 miles
Power Requirements: 26 volts, 400Hz (also requires 5,28 V for lighting depending on unit) Warmup Time: None required
Part Number Course Indicator Description:
522-2638-000 No internal lighting, black face, NO course datum synchro
522-2638-001 No internal lighting, black face, with heading, course datum, and bootstrap synchros
522-2638-002 No internal lighting, black face, with heading, course datum, and bootstrap synchros
522-2638-003 No internal lighting, black face, with heading, course datum, and bootstrap synchros, with EZ/ORZ choke
522-2638-005 No internal lighting, black face, with heading, course datum, and bootstrap synchros, with EZ/ORZ choke
522-2638-006 28V blue-white internal lighting, black face, with heading, course datum, and bootstrap synchros, with EZ/ORZ choke
522-2638-007 5V white internal lighting, black face, with heading, course datum, and bootstrap synchros, with EZ/ORZ choke
522-2638-008 5V blue-white internal lighting, gray face, with heading, course datum, and bootstrap synchros, with EZ/ORZ choke
522-2638-009 5V blue-white internal lighting, black face, with heading, course datum, and bootstrap synchros, with EZ/ORZ choke
522-2638-010 28V red internal lighting, black face, with heading, course datum, and bootstrap synchros, with EZ/ORZ choke



PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET
