Part #:

Model: 339H-4A

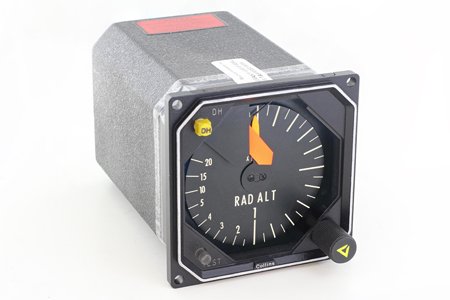

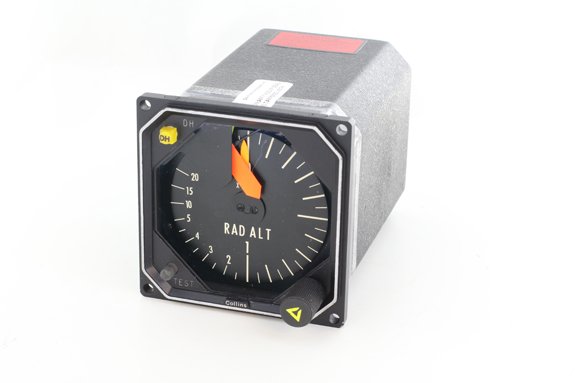

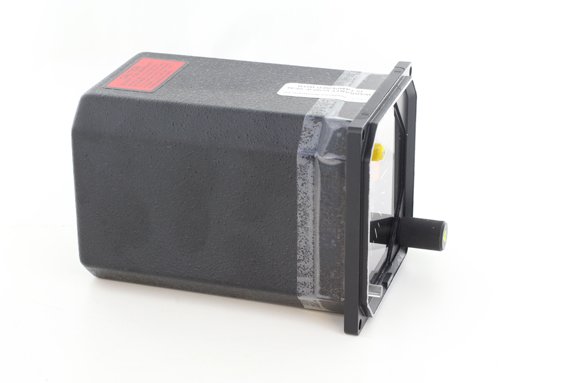

Collins Aerospace - Radio Altimeter Indicator
Part Number :


339H-4A
FEATURES
  • Radio Altitude Indicator used with ALT-50/A Radar Altimeter Systems
  • Provides visual display of aircraft height above terrain during approach phase of flight
  • Provides decision height selection and indication when aircraft descends to selected decision height
  • Self-test switch provided to test radar altimeter system, excluding antennas
  • Altitude scale of -20 to +2000 ft. designed to be used in fixed-wing aircraft applcations
  • Models available with black or gray bezel, flat bezel or bezel with raised bright metal ring trim (see table below)
  • Models available with 5 or 28V dc blue-white lighting (see table below)



SPECIFICATIONS
TSO: C87 RTCA document: DO-138, DO-123
Environmental: DO-138, DAPAAAXXXXXX ARINC specification: 408
Altitude Range: -1000 to 50000 ft. Dimensions: 3.375"W x 3.210"H x 4.50"L
Part Number Radio Altitude Indicator Description:
622-1205-001 Gray flat bezel, 28V dc blue-white lighting
622-1205-002 Gray flat bezel, 5V dc blue-white lighting
622-1205-003 Black bezel with raised bright metal trim ring, 28V dc blue-white lighting
622-1205-004 Black bezel with raised bright metal trim ring, 5V dc blue-white lighting
622-1205-005 Gray bezel with raised bright metal trim ring, 28V dc blue-white lighting
622-1205-006 Gray bezel with raised bright metal trim ring, 5V dc blue-white lighting


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



622-1205-001
- Radio Altimeter Indicator
Price Condition Status
REQUEST OH OUTRIGHT REQUEST
REQUEST OH EXCHANGE REQUEST
622-1205-003
- Radio Altimeter Indicator

NSN: 5841-01-611-4506

Price Condition Status
$6,250.00 OH OUTRIGHT REQUEST
REQUEST OH EXCHANGE REQUEST
622-1205-004
- Radio Altimeter Indicator
Price Condition Status
REQUEST OH OUTRIGHT REQUEST
REQUEST OH EXCHANGE REQUEST
