Part #: 522-0700-023

Model: 37P-5

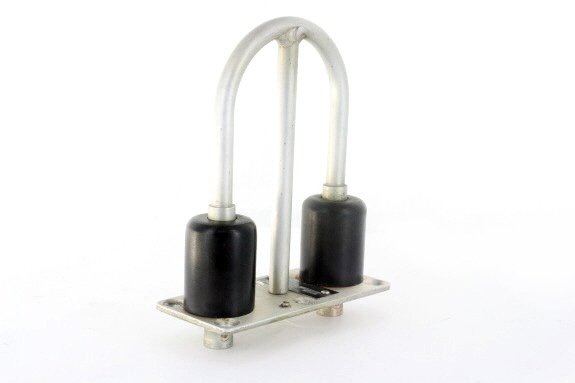

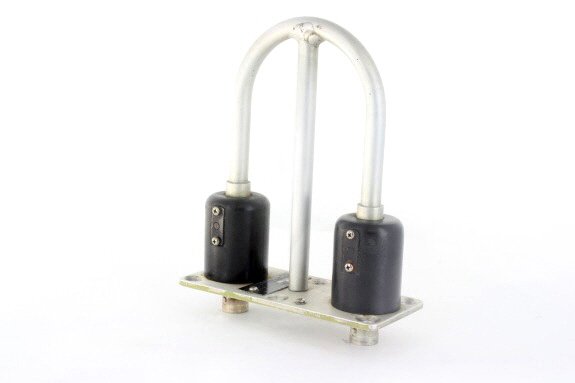

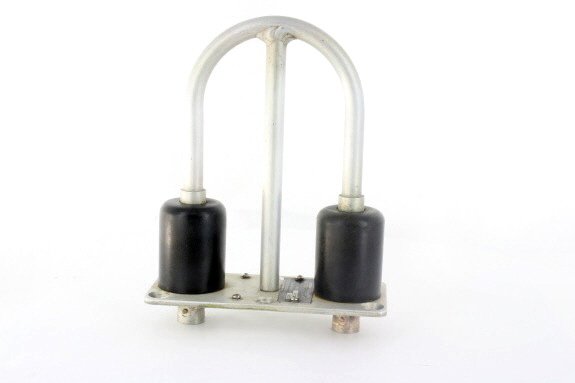

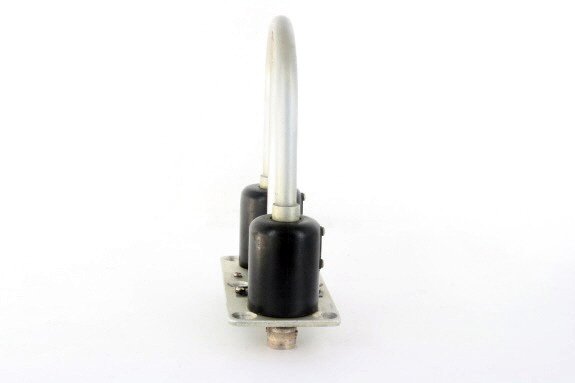

Collins Aerospace - Glideslope Antenna
Part Number :


37P-5
FEATURES
  • Folded dipole antenna used to receive signals in the 329-335 Mhz range
  • Designed to be used with two receivers
  • Two C jacks both presenting a 52-ohm impedance



SPECIFICATIONS
Frequency Range: 329 to 335 MHz Duty Cycle: Continuous, unattended
Input Impedance: 52 ohms at each connector Connectors: Two C jacks
Grounding: Electrically grounded for dc and all low frequencies Weight: 0.5 lb.
Mounting Plate: 114.3 x 50.8 mm (4.5 x 2 in.) Extension From Aircraft: 133.4 mm (5.25")
Temperature: -55 to 70C Altitude: 55000 ft.
Part NumberGlideslope Antenna Description:
522-0700-003 see details above



522-0700-023
- Glideslope Antenna

NSN: 5826-00-861-8984

Price Condition Delivery
$300.00 SV OUTRIGHT VIEW STOCK
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: Yes

522-0700-003
- Glideslope Antenna

NSN: 5826-00-861-8984

Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

522-0700-043
- Glideslope Antenna
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes
