Part #:
Model: 613L-3
NSN: |
|
OEM: |
Collins Aerospace |
Desc: |
Transponder Control |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | RFQ | RFQ |
|
* Price & Availability valid as of 04/19/21 15:21:25 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | RFQ | RFQ |
|
* Price & Availability valid as of 04/19/21 15:21:25 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | SVC OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/19/21 15:21:25 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/19/21 15:21:25 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/19/21 15:21:25 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/19/21 15:21:25 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/19/21 15:21:25 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/19/21 15:21:25 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/19/21 15:21:25 EDT *

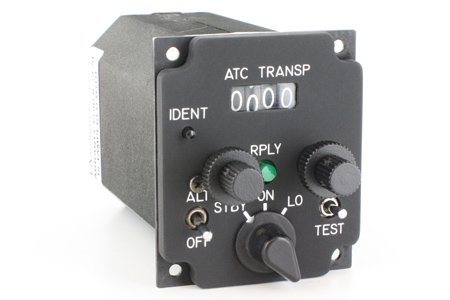

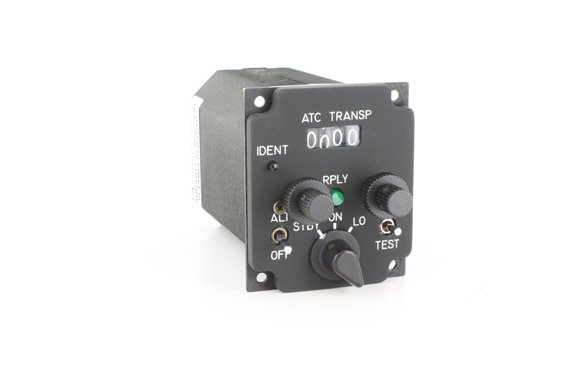

613L-3
FEATURES
- Panel mounted control unit for use with the TDR-90 ATC Transponder
- Contains all operating controls for the TDR-90 including IDENT reply code selection, low sensitivity, standby, and self-test modes
- Models available with system 1 or 2 switch for use with dual systems (see table below)
- Models available with 5 or 28, white or red lighting (see table below)
SPECIFICATIONS
| FAA TSO: | C74c | RTCA: | DO-138; DA/KMP/XXXXXXXX |
| Weight: | 1.0 lb. | Dimensions: | 2.875"H x 2.343"W x 3.88"L |
| Temperature: | -15 to 55C (operation) | Altitude: | -15000 to 15000 ft. |
| Part Number: | Description: |
|---|---|
| 270-2436-010 | Dual control, 28V red lighting, originally made by Gables, superseded by -030 |
| 270-2436-020 | Single control, 28V red lighting, originally made by Gables, superseded by -040 |
| 270-2436-030 | ATC Transponder, Dual control, 28V red lighting |
| 270-2436-040 | ATC Transponder, Single control, 28V red lighting |
| 270-2436-050 | ATC Transponder, Dual control, 28V white lighting |
| 270-2436-060 | ATC Transponder, Single control, 28V white lighting |
| 270-2436-070 | ATC Transponder, Dual control, 5V white lighting |
| 270-2436-080 | ATC Transponder, Single control, 5V white lighting |
| 270-2436-090 | ATC Transponder, Dual control, 5V red lighting |
| 270-2436-100 | ATC Transponder, Single control, 5V red lighting |
270-2436-010
- Transponder Control
| Price | Condition | Status |
|---|---|---|
| RFQ | RFQ | RFQ |
270-2436-020
- Transponder Control
NSN: 5895-01-360-4183
| Price | Condition | Status |
|---|---|---|
| RFQ | RFQ | RFQ |
270-2436-030
- Transponder Control
| Price | Condition | Status |
|---|---|---|
| RFQ | SVC OUTRIGHT | RFQ |
270-2436-040
- Transponder Control
NSN: 5895-01-213-0806
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
270-2436-050
- Dual Transponder Control
NSN: 5895-01-641-7782
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
270-2436-060
- Transponder Control
NSN: 5895-01-530-1803
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
270-2436-070
- Transponder Control
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
270-2436-080
- Transponder Control
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
270-2436-090
- Transponder Control
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
