Part #: 622-0410-001

Model: 860F-2

Collins Aerospace - Radio Altimeter R/T

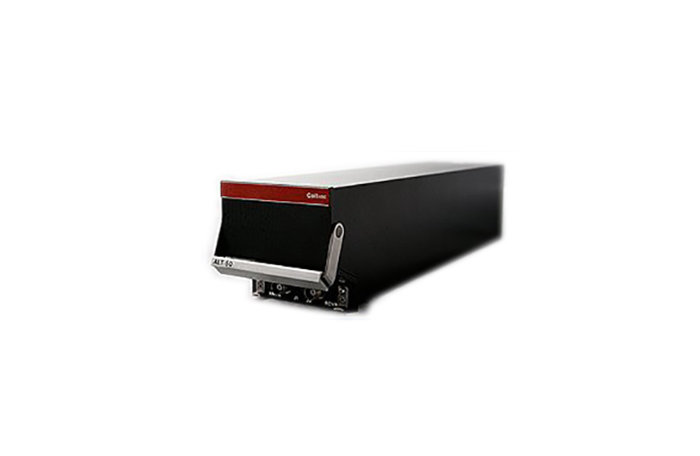

product image
Part Number :


ALT-50/860F-2
FEATURES
  • Lightweight, low-profile radio altimeter designed specifically for installation in light and medium, fixed-wing aircraft
  • Supplies altitude information to flight control/autopilot system during approach phase of flight
  • Typically used with 339H-3 and two 437X-1/1A/1B or ANT-50A/51A/52 antennas depending on aircraft configuration
  • Provides decision height selection from 0 to 2000 feet
  • Provides four shop-adjustable altitude trips that can be adjusted to any altitude between 0 to 2000 ft. to provide switching to a flight direcor or other external system
  • Same as ALT-50A but DOES NOT contain internal product improvements of ALT-50A transceiver (i.e. altitude accuracy, transmitter output power, etc.)



SPECIFICATIONS
FAA TSO: C87 RTCA: DO-138, DO-123
Temperature: -54 to 71C (operating) Altitude: Up to 45000 feet (operating)
Altitude Accuracy: +-5 ft. or +-5% (0-500 ft.); +-7% (500-2000 ft.) RF Transmitter Power: 150 mW nominal
Frequency Modulation (Transmit): 100 or 105 Hz Load Capability: 1 millimho maximum
Analog Time constant: 0.09 +-0.01 s Power requirements: +22 to +34 V dc, 25 watts
Part NumberRadio Altimeter Transceiver Description:
622-0410-001 see details above



622-0410-001
- Radio Altimeter R/T
Price Condition Status
REQUEST SV OUTRIGHT REQUEST
REQUEST SV EXCHANGE REQUEST
