Part #:

Model: 899S-1

Collins Aerospace - DME Range Adapter

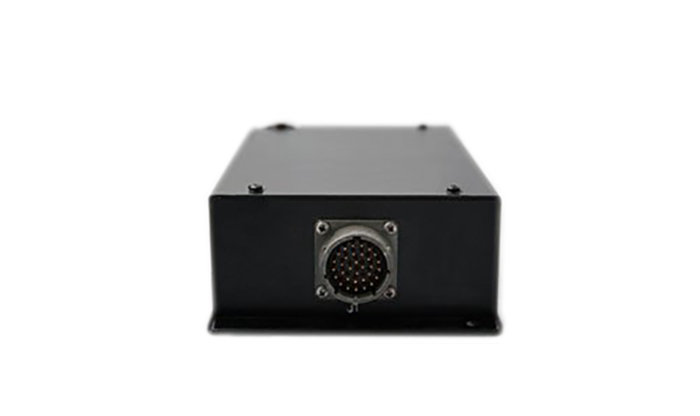

product image
Part Number :


899S-1
FEATURES
  • Digital/Synchro range adapter that converts serial BCD data from a DME to 3-wire synchro data for DME distance indicators
  • Cooling not required
  • Output data is three 3-wire 11.8 VAC synchro per ARINC 407
  • Output loading is three ARINC 521D range indicator readouts (i.e. Collins 331A-8H)



SPECIFICATIONS
TSO: C66a RTCA: DO-138
ARINC: 521D, 568 Connector: PT02A-18-32PW
Weight: 2.1 lbs. Dimensions: 2.0"H x 4.75"W x 7.75"L
Temperature: -54 to 55C Altitude: 45000 ft.
Input Power: 22.1 to 28.6VAC Input Data Serial BCD per ARINC 568
Part NumberDME Range Adapter Description:
622-1920-001 see details above



622-1920-001
- DME Range Adapter
Price Condition Delivery
CALL OR RFQ OH OUTRIGHT
CALL OR RFQ SV EXCHANGE

SEA Repair Capabilities: No

622-1920-002
- DME Range Adapter

NSN: 5826-01-126-5660

Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
