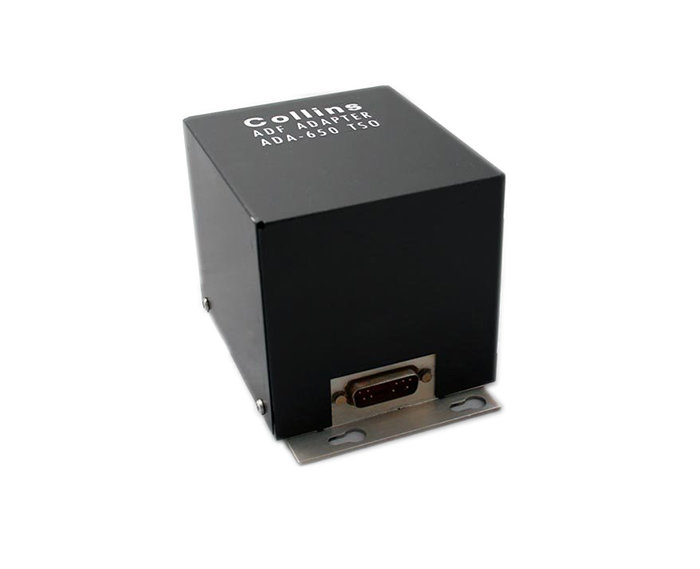

product image

Part #: 622-2609-001

Model: ADA-650

NSN:

5895-01-111-5093

OEM:

Collins Aerospace

Desc:

RMI Adapter

Part Number :


ADA-650



FEATURES

  • ADF to RMI adapter that converts DC SIN/COSINE
  • Bearing information from RCR-650/650A ADF receiver into standard ARINC 3-wire
  • (XYZ) synchro information to drive conventional RMIs with ADF pointers
  • Compact and lightweight
  • Remote mounted in any position



SPECIFICATIONS
FAA TSO: C41c Environmental: Category CANAAAEXXXXX DO-138
Dimensions: 3.5"H x 3.52"W x 5.0"L Weight: 1.1 lbs.
Altitude: 30000 ft. max. Temperature: -40 to +55C (continuous)
Power requirements: 26 V, 400Hz at 250 mA max Output: 11.8V rms 3-wire synchro
Bearing accuracy: (with ADF) +-3 deg. max Response time: 7s max for bearing offset of 175 deg.
Drive capability: Two RMI pointers
Part Number: Description:
622-2609-001 RMI Adapter



622-2609-001
- RMI Adapter

NSN: 5895-01-111-5093
