Model: ALI-80A

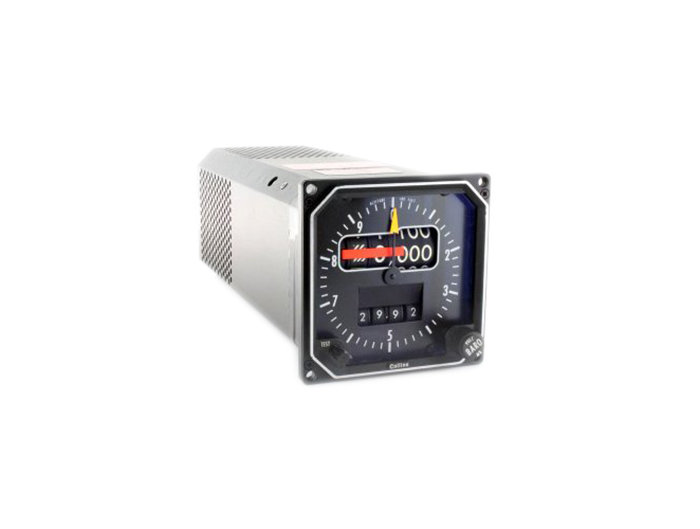

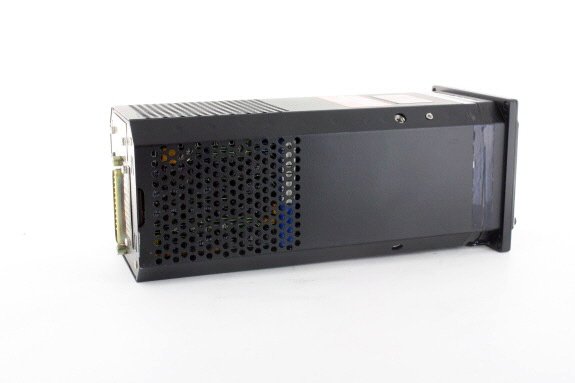

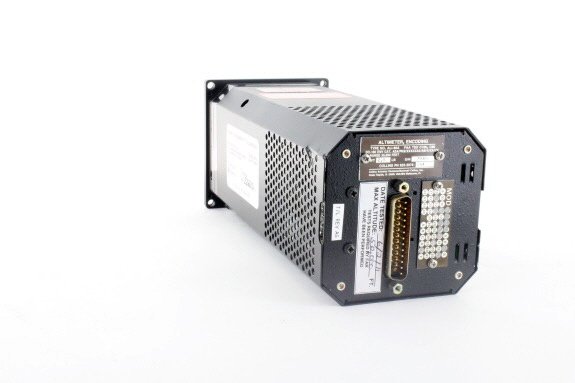

Collins Aerospace - Encoding Altimeter
Part Number :


ALI-80A
FEATURES
  • Encoding Barometric Altimeter used in multiple Collins Air Data Systems
  • Decodes the binary, self-clocking Manchester data transmitted by the central ADC, corrects for a value (in feet) equal to the baroset display and displays actual corrected altitude of the aircraft on the circular pointer/dial scale and numeric counter drum readout
  • Altitude indiacted in 100 ft. increments
  • Barometric set range is 22.00 to 32.00 inHg (inches Mercury)
  • Drum counter displays altitude in 100-ft increments from -1000 to +50000 ft.
  • Models available with black or gray bezel (see table below)
  • Models available with 5 or 28V dc, white or blue-white lighting (see table below)
  • Models available with HIRF protection
  • Model produced with Night Vision lighting
SPECIFICATIONS
FAA TSO: C10b (SAE AS-392c) C88 (SAE AS-855) EUROCAE: ED-14A
Environmental: DO-160A A2A/PKS/XXX XXXA/AB/ A/ZA/ZA Dimensions: 3.38"H x 3.38"W x 9.27"L
Weight: 3.1 lbs. Mounting: Panel-mounted, front or rear
Temperature: -30 to 70C Altitude: 15000 ft.
Power: 28 V DC, 20 W Altitude: 5 V AC/DC, 3 W 28 V DC, 3 W
Part NumberEncoding Altimeter Description:
622-3975-001 Gray bezel, 5V dc blue-white lighting
622-3975-002 Gray bezel, 28V dc blue-white lighting
622-3975-003 Black bezel, 5V dc blue-white lighting
622-3975-004 Black bezel, 28V dc blue-white lighting
622-3975-005 Gray bezel, 5V dc clear white lighting
622-3975-006 Gray bezel, 28V dc clear white lighting
622-3975-007 Black bezel, 5V dc clear white lighting
622-3975-008 Black bezel, 28V dc clear white lighting
622-3975-011 Gray bezel, 5V dc blue-white lighting, HIRF
622-3975-014 Black bezel, 28V dc blue-white lighting, HIRF
622-3975-201 no details available
622-3975-213 Night Vision version


PLEASE NOTE:
THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



622-3975-001
- Encoding Altimeter
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ
CALL OR RFQ OH OUTRIGHT RFQ
CALL OR RFQ OH EXCHANGE RFQ

SEA Repair Capabilities: No

622-3975-002
- Barometric Altimeter
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-3975-003
- Encoding Altimeter
Price Condition Delivery
CALL OR RFQ OH OUTRIGHT RFQ
CALL OR RFQ OH EXCHANGE RFQ
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-3975-004
- Encoding Altimeter

NSN: 6610-01-500-2937

Price Condition Delivery
CALL OR RFQ OH OUTRIGHT RFQ

SEA Repair Capabilities: No

622-3975-005
- Encoding Altimeter
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-3975-006
- Barometric Altimeter
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-3975-007
- Encoding Altimeter
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-3975-008
- Barometric Altimeter
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-3975-011
- Encoding Altimeter
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT RFQ

SEA Repair Capabilities: No

622-3975-014
- Encoding Altimeter
Price Condition Delivery
$2,450.00 OH OUTRIGHT RFQ

SEA Repair Capabilities: No

622-3975-015
- Barometric Altimeter
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-3975-201
- Barometric Altimeter
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ

SEA Repair Capabilities: No

622-3975-203
- Altimeter
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-3975-213
- Altimeter
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No
