Part #: 622-7383-001

Model: ANT-462A

NSN:

5985-01-328-9812

OEM:

Collins Aerospace

Desc:

ADF Antenna

Part Number :
Rockwell Collins Logo

ANT-60A



FEATURES
  • Single combined sense and loop antenna used with ADF-462 ADF receiver
  • Can be located on top or bottom of aircraft (bottom preferred)
  • Should be mounted on the fore-to-aft axis of the aircraft

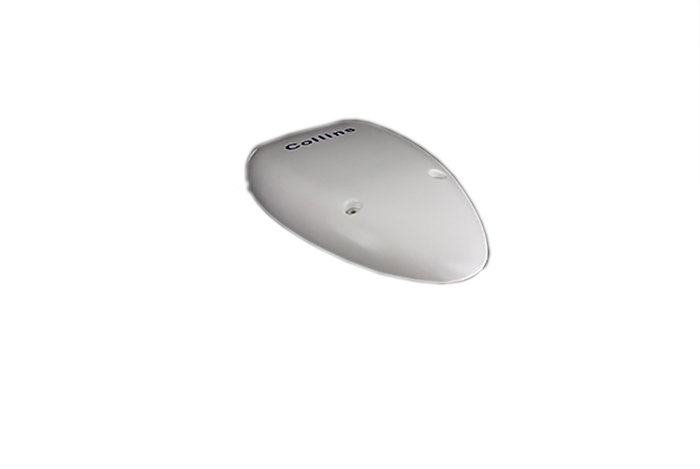

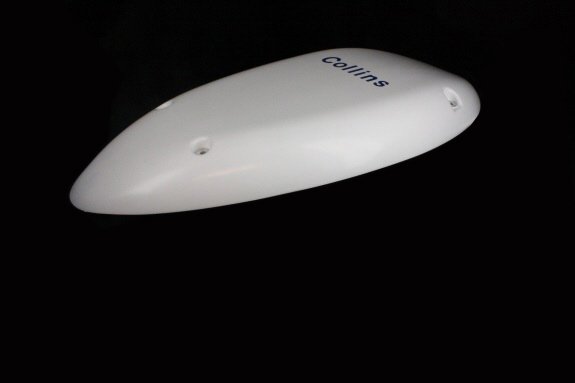

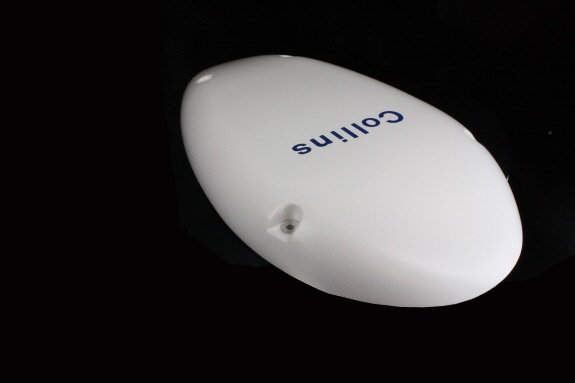

  • Tear-shaped fiber-glass cover



SPECIFICATIONS
TSO: C41d Environmental A2E1/BC/JY/E2/SXXXXX/BZ/AXXXX
Weight: 1.77 kg (3.9 lb) Size: 1.645" H x 8.62" W x 13.96" L
Frequency: 190-1799.5 kHz; 2179 to 2185 kHz Tuning Increments: 50 Hz
Capture Range: +- 250Hz typical Tuning Increments: 50 Hz
Part Number Description:
622-7383-001 ADF Antenna



622-7383-001
- ADF Antenna

NSN: 5985-01-328-9812

Price Condition Status
$2,995.00 SV OUTRIGHT REQUEST LEAD TIME
