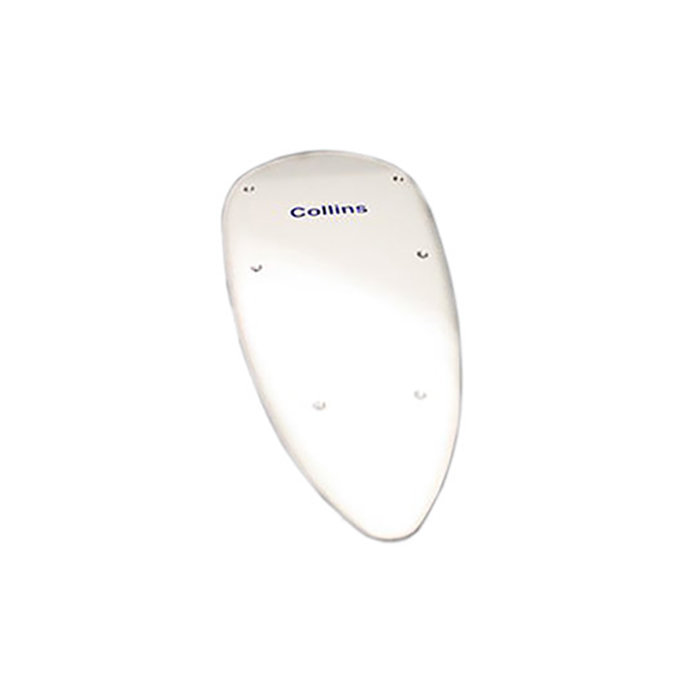

Picture of product ANT-462B

Part #: 622-7384-001

Model: ANT-462B

NSN:

5985-01-493-3461

OEM:

Collins Aerospace

Desc:

Dual ADF Antenna

Part Number :


ANT-462B



FEATURES

  • Antenna that receivers and processes radio signals for the ADF-462 ADF Receiver
  • Designed for dual ADF installations
  • Provides two 50-ohm outputs for two ADF-462 receivers
  • Output can be connected to the ADF-462 via noncritical length of 50-ohm triaxial cable such as TRF-58
  • Directly mounts to aircraft fuselage
  • Same mounting footprint, dimensions, and mating connector as Proline I ANT-60B Dual ADF Antenna



SPECIFICATIONS

TSO: C41d (Class A A); EUROCAE ED-51 Physical size: 23.8"L x 10.6"W x 1.1"H
Weight: 5.8 lbs. Temperature: -65 to +71 C
Part Number: Description:
622-7384-001 Dual ADF Antenna



Serial # 40LVD9
Condition SV
Mods -
Tag Date 11/09/23
Shop Velocity Aerospace - Ft. Lauderdale
Warranty 6 Months
Serial # 44PLCN
Condition SV
Mods -
Tag Date 11/09/23
Shop Velocity Aerospace - Ft. Lauderdale
Warranty 6 Months
622-7384-001
- Dual ADF Antenna

NSN: 5985-01-493-3461

Price Condition Status
$7,250.00 SV OUTRIGHT 2 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
622-7384-002
- Combination ADF Antenna, Dual ADF
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
