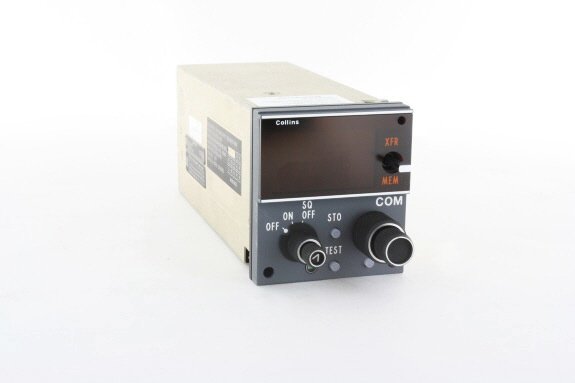

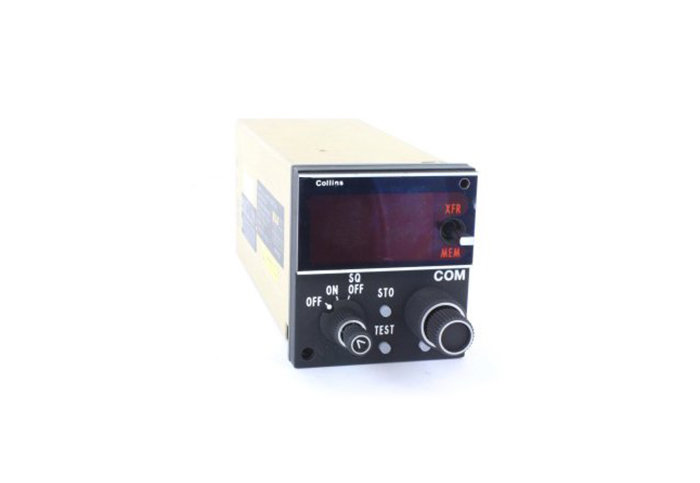

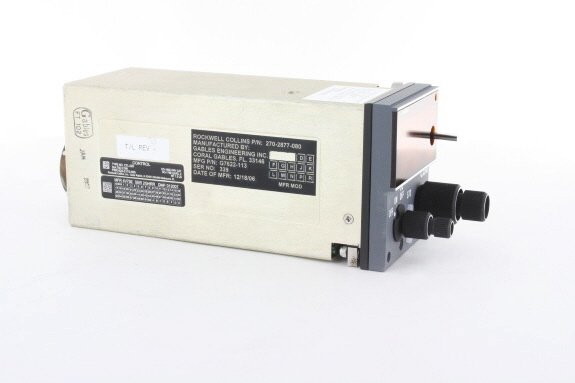

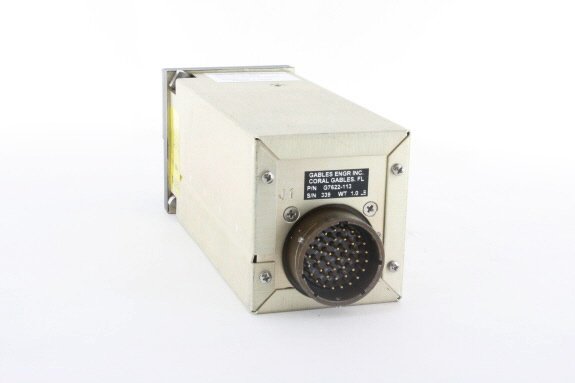

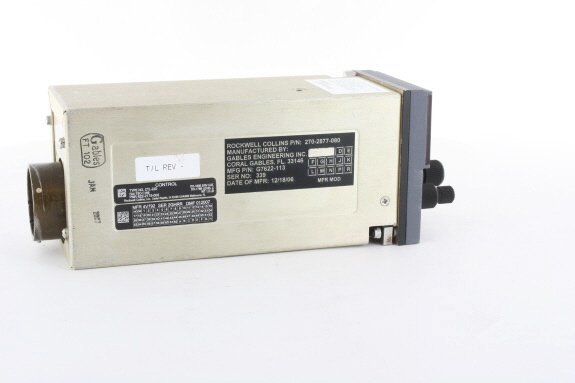

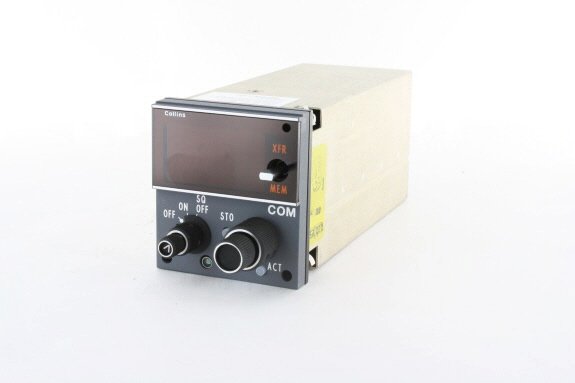

Part #:

Model: CTL-22D

OEM:

Collins Aerospace

Desc:

G7622-001, 8.33 Comm Control

Part Number :


CTL-22D



FEATURES

  • Digital Display Communications Control with 8.33 khz spacing designed for use with Pro Line II communications transceivers such as VHF-21C, VHF-21D, VHF-22C and VHF-22D
  • CTL-22D controls are direct fit and form replacement for existing original CTL-22C Controls
  • CTL-22D controls offer new design incorporating all digital architecture and LED displays which enhance reliability and extend performance
  • CTL-22D controls include lighting bus that can be strapped for either 5 or 28 volt applications
  • Serial tune control unit
  • Provides active and preset frequency display
  • Six frequency memory storage beside active and preset frequency
  • Squelch control (SQ OFF)
  • Models available with black or gray bezel (see table below)
  • Models available with variations of ON/OFF selection and Volume control (see table below)



SPECIFICATIONS

Weight: 1.2 lbs. Dimensions: 2.375"W x 2.625"H x 7.52"L
TSO: C37c, C34d, C36d, C38e, C40b, C66b, C41c, C74e RTCA Document: DO-160A
EUROCAE: MPS/WG 8/1/71; ED-14A DEUTSCHE BUNDESPOST FTZ: A446R2010
Environmental: DO-160A categories /A2C1/B/PKS/ EXXXXXZ/BZ/AZZ EUROCAE ED-14A Temperature: -30 to +70C
Altitude: 35000 ft. max. Shock: 6 g operational
Power Requirement: 27V dc (16-32) at 0.25A Lighting Power: 5V ac/dc. 350mA or 28Vdc, 100 mA
Lighting Color: Blue-white Display Type: Gas discharge
Brightness Control: Automatic or external potentiometer Electrical Input/Output: EIA RS-422A
Input/Output Format: Commercial Standard Digital Bus (CSDB) Frequency Range: 118.000-135.975MHz (normal) or 118.000-151.975 (strap option)
Part Number: Description:
822-2175-001 5/28 volt blue-white lighting, gray panel, OFF-ON-SQ OFF controls, NO volume control; Gables P/N G7622-001; Replaces CTL-22C P/N 822-1120-001/002
822-2175-003 5/28 volt lighting, black panel, OFF-ON-SQ OFF controls, NO volume control; Gables P/N G7622-112; Replaces CTL-22C P/N 822-1120-003/004
822-2175-005 5/28 volt lighting, gray panel, OFF-ON-SQ OFF controls, WITH volume control; Gables P/N G7622-113; Replaces CTL-22C P/N 822-1120-005/006
822-2175-007 5 volt lighting, black panel, OFF-ON-SQ OFF controls, WITH volume control; Gables P/N G7622-114; Replaces CTL-22C P/N 822-1120-007/008
822-2175-009 5/28 volt lighting, gray panel, NORM-SQ OFF controls, NO volume control; Gables P/N G7622-115; Replaces CTL-22C P/N 822-1120-009



822-2175-001
- G7622-001, 8.33 Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-2175-003
- G7622-112, 8.33 Comm Control

NSN: 5821-01-564-9216

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-2175-005
- G7622-113, 8.33 Comm Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
822-2175-007
- G7622-114, 8.33 Comm Control

NSN: 5821-01-564-9213

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
822-2175-009
- G7622-115, 8.33 Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

8.33 refers to the kilohertz (kHz) channel spacing for VHF communications radios required in certain types of airspace. Normal channel spacing for VHF comm radios is 25 kHz. Currently, 8.33 kHz channel spacing is only required above FL195 (19500 ft.) in the ICAO European region as of 15 March 2007.

8.33 channel spacing was introduced and implemented to help reduce VHF communication overlap and congestion in high traffic areas in Europe. With dividing 25 kHz by 3 (thus 8.33), many new communication frequencies were created. Only very specific radio equipment is capable of channeling, transmitting, and receiving in 8.33 kHz increments. Some of the more popular systems include the Rockwell Collins VHF-21/22/422/C/D and Bendix/King KX-165A (-0201), KY-196B. The Garmin GNS-430/530 series systems are capable of 8.33 also.
