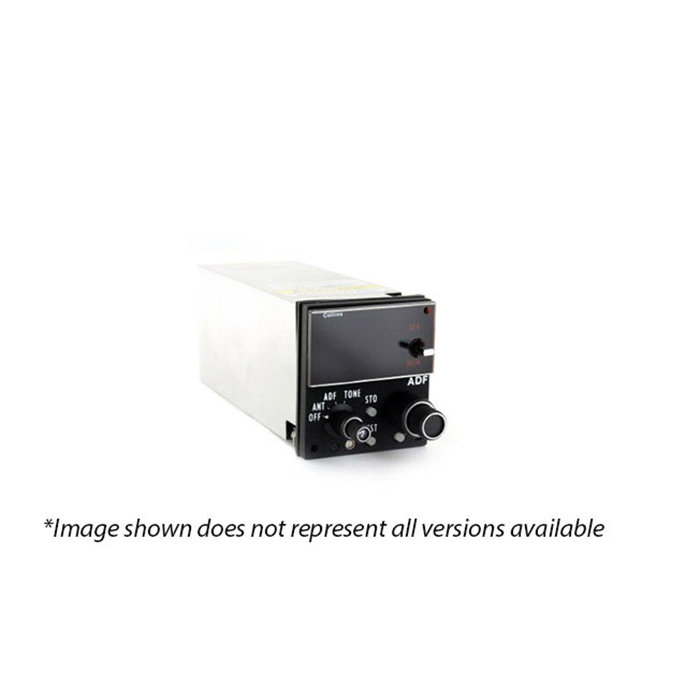

product 360 image
360
product image
Part Number :


CTL-62
FEATURES
  • Digital Display Navigation Control designed to tune the ADF-462 radio but can be used to tune Proline I ADF-60A and ADF-60B when used in conjunction with the CAD-62 Control Adapter
  • Serial tune control unit note: CAD-62 Control Adapter converts serial tuning data to parallel tuning data
  • Provides active and preset frequency display
  • Four frequency memory storage beside active and preset frequency
  • Models available with black or gray bezel (see table below)
  • Models available with 5 or 28 volt lighting (see table below)
  • Models available with variations of OFF/ANT/ADF/TONE selections and Volume control (see table below)
  • Models available with dual ADF capability for use one control - two ADF receiver configurations (see table below)
SPECIFICATIONS
Weight: 1.2 lbs. Dimensions: 2.375"W x 2.625"H x 7.52"L
TSO: C37c, C34d, C36d, C38e, C40b, C66b, C41c, C74e RTCA Document: DO-160A
EUROCAE: MPS/WG 8/1/71; ED-14A DEUTSCHE BUNDESPOST FTZ: A446R2010
Environmental: DO-160A categories /A2C1/B/PKS/ EXXXXXZ/BZ/AZZ EUROCAE ED-14A Temperature: -30 to +70C
Altitude: 35000 ft. max. Shock: 6 g operational
Power Requirement: 27V dc (16-32) at 0.25A Lighting Power: 5V ac/dc. 350mA or 28Vdc, 100 mA
Lighting Color: Blue-white Display Type: Gas discharge
Brightness Control: Automatic or external potentiometer Electrical Input/Output: EIA RS-422A
Input/Output Format: Commercial Standard Digital Bus (CSDB) Frequency Range: 190 to 1799kHz (normal); strap option adds 2179-2185kHz (if ADF rec has this range)
Part NumberADF Control Description:
622-6522-001 5V lighting, gray panel, OFF-ANT-ADF-TONE controls, NO volume control, Single ADF capability
622-6522-002 28V lighting, gray panel, OFF-ANT-ADF-TONE controls, NO volume control, Single ADF capability
622-6522-003 5V lighting, black panel, OFF-ANT-ADF-TONE controls, NO volume control, Single ADF capability
622-6522-004 28V lighting, black panel, OFF-ANT-ADF-TONE controls, NO volume control, Single ADF capability
622-6522-005 5V lighting, gray panel, OFF-ANT-ADF-TONE controls, WITH volume control, Single ADF capability
622-6522-006 28V lighting, gray panel, OFF-ANT-ADF-TONE controls, WITH volume control, Single ADF capability
622-6522-007 5V lighting, black panel, OFF-ANT-ADF-TONE controls, WITH volume control, Single ADF capability
622-6522-008 28V lighting, black panel, OFF-ANT-ADF-TONE controls, WITH volume control, Single ADF capability
622-6522-009 5V lighting, gray panel, OFF-ANT-ADF-TONE controls, NO volume control, Dual ADF capability
622-6522-010 28V lighting, gray panel, OFF-ANT-ADF-TONE controls, NO volume control, Dual ADF capability
622-6522-011 5V lighting, black panel, OFF-ANT-ADF-TONE controls, NO volume control, Dual ADF capability
622-6522-012 28V lighting, black panel, OFF-ANT-ADF-TONE controls, NO volume control, Dual ADF capability
622-6522-013 5V lighting, gray panel, OFF-ANT-ADF-TONE controls, WITH volume control, Dual ADF capability
622-6522-014 28V lighting, gray panel, OFF-ANT-ADF-TONE controls, WITH volume control, Dual ADF capability
622-6522-015 5V lighting, black panel, OFF-ANT-ADF-TONE controls, WITH volume control, Dual ADF capability
622-6522-016 28V lighting, black panel, OFF-ANT-ADF-TONE controls, WITH volume control, Dual ADF capability
622-6522-017 5V lighting, gray panel, ANT-ADF-TONE controls, NO volume control, Single ADF capability
622-6522-018 28V lighting, gray panel, ANT-ADF-TONE controls, NO volume control, Single ADF capability
622-6522-019 5V lighting, black panel, ANT-ADF-TONE controls, NO volume control, Single ADF capability
622-6522-020 28V lighting, black panel, ANT-ADF-TONE controls, NO volume control, Single ADF capability
622-6522-021 5V lighting, gray panel, ANT-ADF-TONE controls, WITH volume control, Single ADF capability
622-6522-022 28V lighting, gray panel, ANT-ADF-TONE controls, WITH volume control, Single ADF capability
622-6522-023 5V lighting, black panel, ANT-ADF-TONE controls, WITH volume control, Single ADF capability
622-6522-024 28V lighting, black panel, ANT-ADF-TONE controls, WITH volume control, Single ADF capability
622-6522-025 5V lighting, gray panel, ANT-ADF-TONE controls, NO volume control, Dual ADF capability
622-6522-026 28V lighting, gray panel, ANT-ADF-TONE controls, NO volume control, Dual ADF capability
622-6522-027 5V lighTing, black panel, ANT-ADF-TONE controls, NO volume control, Dual ADF capability
622-6522-028 28V lighting, black panel, ANT-ADF-TONE controls, NO volume control, Dual ADF capability
622-6522-029 5V lighting, gray panel, ANT-ADF-TONE controls, WITH volume control, Dual ADF capability
622-6522-030 28V lighting, gray panel, ANT-ADF-TONE controls, WITH volume control, Dual ADF capability
622-6522-031 5V lighting, black panel, ANT-ADF-TONE controls, WITH volume control, Dual ADF capability
622-6522-032 28V lighting, black panel, ANT-ADF-TONE controls, WITH volume control, Dual ADF capability


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



622-6522-008
- ADF Control

NSN: 5985-01-327-9565

Price Condition Delivery
$1,195.00 OH OUTRIGHT IN STOCK
$795.00 OH EXCHANGE IN STOCK

SEA Repair Capabilities: Yes

622-6522-016
- ADF Control
Price Condition Delivery
$3,200.00 OH OUTRIGHT IN STOCK
$1,750.00 OH EXCHANGE IN STOCK

SEA Repair Capabilities: Yes

622-6522-007
- ADF Control
Price Condition Delivery
$1,000.00 OH OUTRIGHT IN STOCK
$795.00 OH EXCHANGE IN STOCK

SEA Repair Capabilities: Yes

622-6522-001
- ADF Control
Price Condition Delivery
$1,950.00 SV OUTRIGHT RFQ
$795.00 SV EXCHANGE RFQ

SEA Repair Capabilities: Yes

622-6522-002
- ADF Control
Price Condition Delivery
$1,950.00 OH OUTRIGHT RFQ
$795.00 OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

622-6522-003
- ADF Control

NSN: 5895-01-325-4789

Price Condition Delivery
$1,950.00 OH OUTRIGHT RFQ
$950.00 OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

622-6522-004
- ADF Control

NSN: 5985-01-316-6426

Price Condition Delivery
CALL OR RFQ OH OUTRIGHT RFQ
CALL OR RFQ OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

622-6522-005
- ADF Control

NSN: 5821-01-333-9235

Price Condition Delivery
$1,195.00 OH OUTRIGHT RFQ
$795.00 OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

622-6522-006
- ADF Control
Price Condition Delivery
$1,195.00 OH OUTRIGHT RFQ
$795.00 OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

622-6522-009
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-010
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-011
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-012
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-013
- ADF Control
Price Condition Delivery
CALL OR RFQ OH OUTRIGHT RFQ
CALL OR RFQ OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

622-6522-014
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-015
- ADF Control
Price Condition Delivery
CALL OR RFQ OH OUTRIGHT RFQ
CALL OR RFQ OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

622-6522-017
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-018
- ADF Control
Price Condition Delivery
CALL OR RFQ OH OUTRIGHT RFQ

SEA Repair Capabilities: Yes

622-6522-019
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-020
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-021
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-022
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-023
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-024
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-025
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-026
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-027
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-028
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-029
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-030
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-031
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-032
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-801
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-802
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-803
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

622-6522-804
- ADF Control
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Yes, with the use of the CAD-31 and CAD-62 Control Adapters. The CAD-31 allows Proline II controls such as CTL-22 and CTL-32 to be used with the VHF-20A /VHF-20B and VIR-30A avionics units respectively. The CAD-62 allows Proline II controls such as CTL-62 and CTL-92 to be used with the ADF-60A and TDR-90 avionics units respectively.
Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 80% of the original exchange price. That is, it cannot cost SEA more than 80% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

For more information, please refer to these other Exchange FAQs

The CTL-X0 is 30-40 years old. Service parts from Collins are either no longer available or extremely expensive. It is not cost effective nor possible in some situations to continue to utilize the CTL-X0 controls in your aircraft. Southeast Aerospace recommends converting the CTL-X0 controls over to the Collins CTL-X2 Proline II controls.

The CTL-X2 is not a direct replacement for the CTL-X0 controls. A connector change, CAD adapter, and locally fabricated panel filler plate are required for the change. A qualified avionics technician should perform this modification. While this is a moderately involved retrofit, it is a change that is eminent and will ultimately be required if you continue to use your original Proline I radios.

  • To convert from the CTL-20 Comm control, the CTL-22, CAD-31, mating connectors, and CAD bracket are required.
  • To convert from the CTL-30 Nav control, the CTL-32, CAD-31, mating connectors, and CAD bracket are required.
  • To convert from the CTL-60 ADF control, the CTL-62, CAD-62, mating connectors, and CAD bracket are required.
  • To convert from the CTL-90 Transponder control, the CTL-92, CAD-62, mating connectors, and CAD bracket are required.

For an exact SEA quote to convert from your CTL-X0 control, please provide the part number of your CTL-X0. Contact SEA with this information and an SEA rep will provide a quotation immediately.

If dashes are present in the lower display, please use the following steps:
  • Push and hold the "ACT" button until a frequency appears
  • Momentarily push the "XFR/MEM" switch to "MEM" position to select the desired channel number
  • Tune to the desired frequency and push "STO" button 2 times to store the frequency
  • Press "RETURN" to continue
The newer G series CTL-X2 controls are direct fit and form replacement for existing original Collins CTL-X2 Controls. G controls offer new design incorporating all digital architecture and LED displays which enhance reliability and extend performance. G controls include lighting bus that can be strapped for either 5 or 28 volt applications.

The original CTL-X2 controls are legacy controls with an original design almost 30 years old. As these controls age, support from Collins will be less and less. A common indicator of this decreasing support is the increase in price and decreasing availability of service parts to repair aging units.
