Part #:

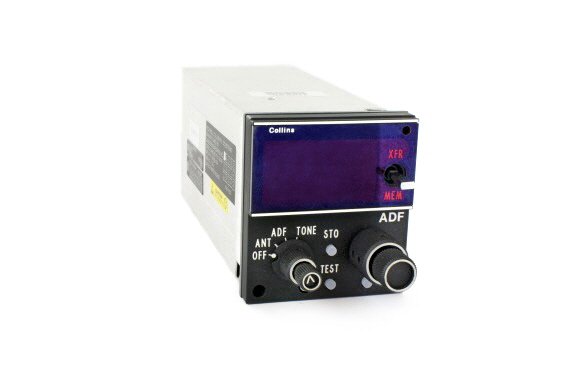

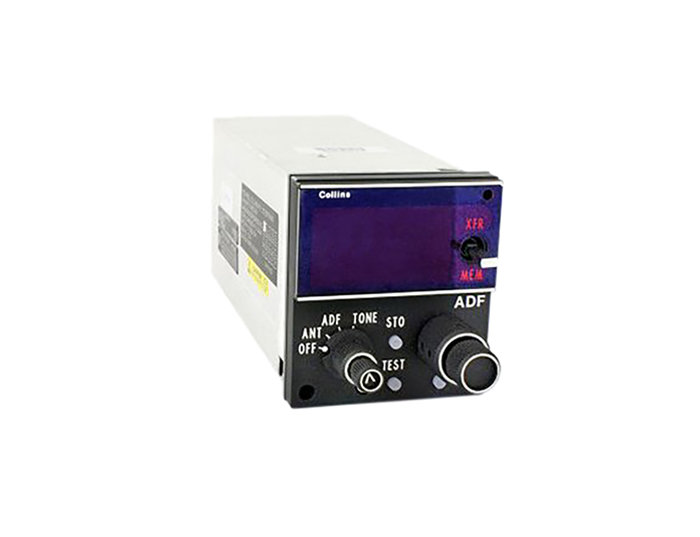

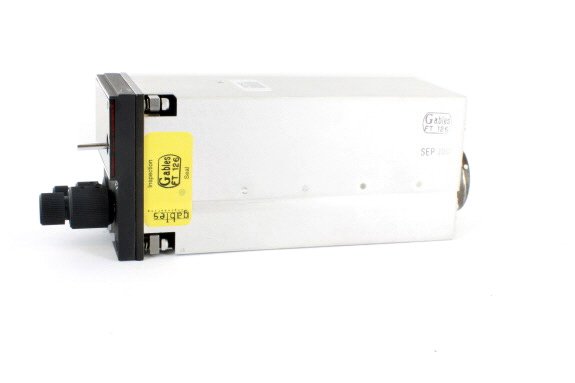

Model: CTL-62G

OEM:

Collins Aerospace

Desc:

G7662-101, ADF Control

Part Number :


CTL-62G



FEATURES

  • Digital Display Navigation Control designed to tune the ADF-462 ADF but can be used to tune Proline I ADF-60A and ADF-60B when used in conjunction with the CAD-62 Control Adapter
  • Serial tune control unit note: CAD-62 Control Adapter converts serial tuning data to parallel tuning data
  • G controls are direct fit and form replacement for existing original CTL-62 Controls
  • G controls offer new design incorporating all digital architecture and LED displays which enhance reliability and extend performance
  • G controls include lighting bus that can be strapped for either 5 or 28 volt applications
  • Provides active and preset frequency display
  • Four frequency memory storage beside active and preset frequency
  • Models available with black or gray bezel (see table below)
  • Models available with 5 or 28 volt lighting (see table below)
  • Models available with variations of OFF/ANT/ADF/TONE selections and Volume control (see table below)
  • Models available with dual ADF capability for use one control - two ADF receiver configurations (see table below)



SPECIFICATIONS

Weight: 1.2 lbs. Dimensions: 2.375"W x 2.625"H x 7.52"L
TSO: C37c, C34d, C36d, C38e, C40b, C66b, C41c, C74e RTCA Document: DO-160A
EUROCAE: MPS/WG 8/1/71; ED-14A DEUTSCHE BUNDESPOST FTZ: A446R2010
Environmental: DO-160A categories /A2C1/B/PKS/ EXXXXXZ/BZ/AZZ EUROCAE ED-14A Temperature: -30 to +70C
Altitude: 35000 ft. max. Shock: 6 g operational
Power Requirement: 27V dc (16-32) at 0.25A Lighting Power: 5V ac/dc. 350mA or 28Vdc, 100 mA
Lighting Color: Blue-white Display Type: Gas discharge
Brightness Control: Automatic or external potentiometer Electrical Input/Output: EIA RS-422A
Input/Output Format: Commercial Standard Digital Bus (CSDB) Frequency Range: 190 to 1799kHz (normal); strap option adds 2179-2185kHz (if ADF rec has this range)
Part Number: Description:
822-2180-001 5/28V lighting, gray panel, OFF-ANT-ADF-TONE controls, NO volume control, Single ADF capability; Gables P/N G7662-101; Replaces CTL-62 P/N 622-6522-001/002
822-2180-003 5/28V lighting, black panel, OFF-ANT-ADF-TONE controls, NO volume control, Single ADF capability; Gables P/N G7662-102; Replaces CTL-62 P/N 622-6522-003/004
822-2180-005 5/28V lighting, gray panel, OFF-ANT-ADF-TONE controls, WITH volume control, Single ADF capability; Gables P/N G7662-103; Replaces CTL-62 P/N 622-6522-005/006
822-2180-007 5/28V lighting, black panel, OFF-ANT-ADF-TONE controls, WITH volume control, Single ADF capability; Gables P/N G7662-104; Replaces CTL-62 P/N 622-6522-007/008
822-2180-009 5/28V lighting, gray panel, OFF-ANT-ADF-TONE controls, NO volume control, Dual ADF capability; Gables P/N G7662-105; Replaces CTL-62 P/N 622-6522-009/010
822-2180-011 5/28V lighting, black panel, OFF-ANT-ADF-TONE controls, NO volume control, Dual ADF capability; Gables P/N G7662-106; Replaces CTL-62 P/N 622-6522-011/012
822-2180-013 5/28V lighting, gray panel, OFF-ANT-ADF-TONE controls, WITH volume control, Dual ADF capability; Gables P/N G7662-107; Replaces CTL-62 P/N 622-6522-013
822-2180-015 5/28V lighting, black panel, OFF-ANT-ADF-TONE controls, WITH volume control, Dual ADF capability; Gables P/N G7662-108; Replaces CTL-62 P/N 622-6522-016
822-2180-017 5/28V lighting, gray panel, ANT-ADF-TONE controls, NO volume control, Single ADF capability; Gables P/N G7662-111; Replaces CTL-62 P/N 622-6522-017



822-2180-001
- G7662-101, ADF Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-2180-003
- G7662-102, ADF Control

NSN: 6605-01-550-6152

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
822-2180-005
- G7662-103, ADF Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-2180-007

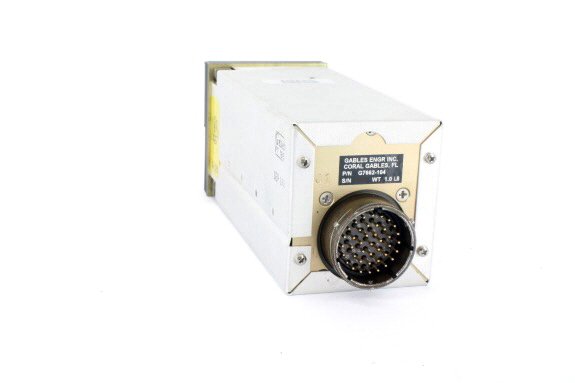

- G7662-104, ADF Control

NSN: 6605-01-562-4243

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
