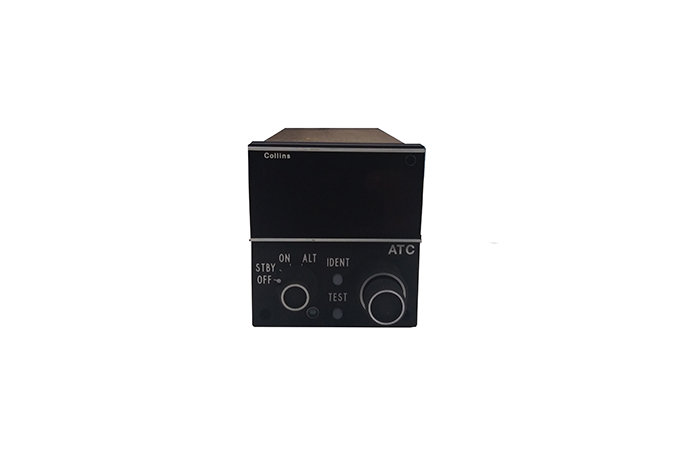

Picture of product CTL-92G

Part #:

Model: CTL-92G

OEM:

Collins Aerospace

Desc:

G7692-121, Transponder Control

Part Number :


CTL-92G
FEATURES
  • Digital Display Transponder Control designed to tune TDR-94 and TDR-94D transponders but can be used to tune Proline I TDR-90 when used in conjunction with the CAD-62 Control Adapter
  • Serial tune control unit note: CAD-62 Control Adapter converts serial tuning data to parallel tuning data
  • G controls are direct fit and form replacement for existing original CTL-92 Controls
  • G controls offer new design incorporating all digital architecture and LED displays which enhance reliability and extend performance
  • G controls include lighting bus that can be strapped for either 5 or 28 volt applications
  • Provides active and preset frequency display
  • Models available with black or gray bezel (see table below)
  • Models available with 5 or 28 volt lighting (see table below)
  • Models available with variations of OFF/STANDBY/ON/ALT selections (see table below)
  • Models available with dual transponder capability for use one control - two transponder configurations (see table below)
  • Models available with Mode S Transponder Compatibility (see table below)
  • Models available with relay control capability for special applications where relay is utilized to operate 2 transponders with one antenna/encoder (see table below)
SPECIFICATIONS
Weight: 1.2 lbs. Dimensions: 2.375"W x 2.625"H x 7.52"L
TSO: C37c, C34d, C36d, C38e, C40b, C66b, C41c, C74e RTCA Document: DO-160A
EUROCAE: MPS/WG 8/1/71; ED-14A DEUTSCHE BUNDESPOST FTZ: A446R2010
Environmental: DO-160A categories /A2C1/B/PKS/ EXXXXXZ/BZ/AZZ EUROCAE ED-14A Temperature: -30 to +70C
Altitude: 35000 ft. max. Shock: 6 g operational
Power Requirement: 27V dc (16-32) at 0.25A Lighting Power: 5V ac/dc. 350mA or 28Vdc, 100 mA
Lighting Color: Blue-white Display Type: Gas discharge
Brightness Control: Automatic or external potentiometer Electrical Input/Output: EIA RS-422A
Input/Output Format: Commercial Standard Digital Bus (CSDB)
Part Number Transponder Control Description:
822-2181-201 5/28V lighting, gray panel, OFF-STBY-ON-ALT controls, Single transponder capability, Mode S compatible; Gables PN G7692-121; Replaces CTL-92 P/N 622-6523-201/202
822-2181-203 5/28V lighting, black, OFF-STBY-ON-ALT controls, Single transponder capability, Mode S compatible; Gables PN G7692-122; Replaces CTL-92 P/N 622-6523-203/204
822-2181-205 5/28V, gray, OFF-STBY-ON-ALT ctls, Dual transponder cap., Mode S compatible, Relay control capability; Gables PN G7692-123; Replaces CTL-92 P/N 622-6523-205/206
822-2181-207 5/28V, black, OFF-STBY-ON-ALT ctls, Dual transponder cap., Mode S compat, Relay control capability; Gables PN G7692-124; Replaces CTL-92 P/N 622-6523-207/208
822-2181-213 5/28V, gray, STBY-ON-ALT controls, Dual transponder cap., Mode S compatible, Relay control capability; Gables PN G7692-127; Replaces CTL-92 P/N 622-6523-213
