Model: CTL-93T

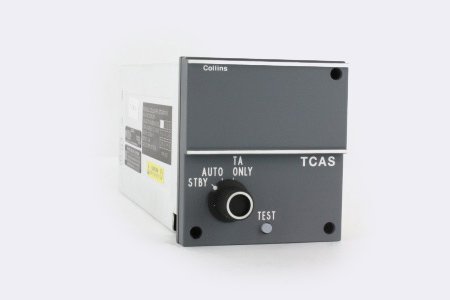

Collins Aerospace - TCAS Control
Part Number :


CTL-93T
FEATURES
  • TCAS control used in conjunction with transponder control to provide ARINC 429 control of TDR-94D transponder and TCAS II System
  • Accepts mode A and mode C code from CTL-92, parallel code from CTL-90 or ARINC 429 code from compatible ARINC 429 controls
  • Adds TCAS control data to mode A and mode C code and outputs data via ARINC 429 output words for appropriate transponder
  • CTL-93T controls are direct fit and form replacement for existing original CTL-92T Controls
  • CTL-93T controls offer new design incorporating all digital architecture and LED displays which enhance reliability and extend performance
  • CTL-93T controls include lighting bus that can be strapped for either 5 or 28 volt applications
  • Models available with black or gray bezel (see table below)
  • Models available with 5 or 28 volt lighting (see table below)
  • Models available with variations of OFF-STBY-AUTO-TA ONLY switch selections (see table below)
  • Models available with variations of display control pushbuttons (see table below)
  • Models available with additional range selections for 40 and 3 nmi (see table below)
SPECIFICATIONS
Weight: 1.3 lbs. Dimensions: 2.395"W x 2.645"H x 6.83"L
TSO: C112, C119 EUROCAE: ED-14B (Env), ED-12A (software)
Input Power: 28VDC (16 to 32) at 7W max Lighting: 5V ac/dc blue-white lighting at 350Ma 28V dc blue-white lighting at 100Ma
Part NumberTCAS Control Description:
822-2182-101 5/28V lighting, gray panel, no display control pushbuttons, STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-101
822-2182-103 5/28V lighting, black panel, no display control pushbuttons, STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-103/104
822-2182-105 5/28V lighting, gray panel, M,A/B,R display control pushbuttons, STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-105
822-2182-107 5/28V lighting, black panel, M,A/B,R display control pushbuttons, STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-107
822-2182-109 5/28V lighting, gray panel, no display control pushbuttons, OFF-STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-109/110
822-2182-111 5/28V lighting, black panel, no display control pushbuttons, OFF-STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-111/112
822-2182-113 5/28V lighting, gray panel, M,A/B,R display control pushbuttons, OFF-STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-113
822-2182-115 5/28V lighting, black panel, M,A/B,R display control pushbuttons, OFF-STBY-AUTO-TA ONLY switch positions, additional range selections of 40 and 3 nmi; Replaces CTL-92T P/N 622-9614-115/116
