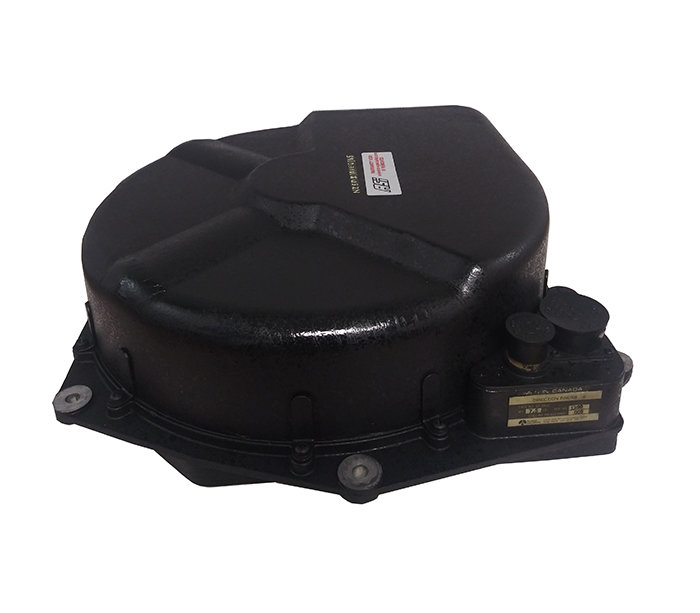

Picture of product DF-301E

Part #:

Model: DF-301E

OEM:

Collins Aerospace

Desc:

Direction Finder

Part Number :



DF-310E



FEATURES

  • Used in ARC-182 UHF/VHF radio system for direction finding
  • Processes the ARC-182 radio signal and provides analog bearing output to Display Processor Unit (DPU) in AMS-5000 Avionics System
  • Provides bearing signal to EFIS displays
  • Enabled and tuned by C-11131 control in ARC-182 system
  • Bearing annunciator is yellow on pilot display; green on copilot display
  • Valid DF frequencies are 100-400 MHz (AM)
  • Contains built-in antenna, antenna controller, audio processor, and servo loop circuit
  • Receive only; no transmit
  • Powered by 28CDC aircraft supply
  • Electronic rotating antenna
  • Radiator that consists of 8 segments spaced at 45 degree increments
  • Mating connector PN MS3126F16-26S



SPECIFICATIONS

Dimensions: 3.6” X 11.6” x 10.7” Weight: 3.40 kg (7.5 lbs.)
Env Category: MIL-E-5400 POWER: 28VDC, 20 watts
Part Number: Description:
622-0902-005 Direction Finder
622-0902-006 Direction Finder



622-0902-005
- Direction Finder

NSN: 5826-01-008-4097

Price Condition Status
$2,775.00 OH OUTRIGHT REQUEST LEAD TIME
622-0902-006
- Direction Finder

NSN: 5826-01-088-3650

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
