Part #: 622-9683-111

Model: DSP-84

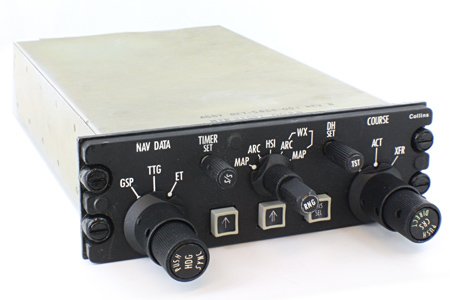

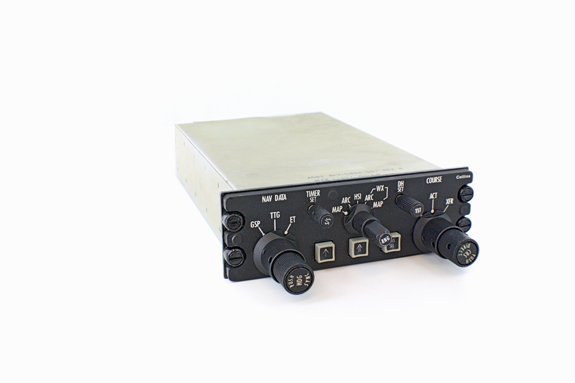

Collins Aerospace - EFIS Select Panel
Part Number :


DSP-84
FEATURES
  • Provides EHSI (EFD-84) in EFIS-84 System format selection - MAP, ARC, HSI, ARC WX, MAP, WX
  • Provides active and preset navigation sensor selection
  • Bearing pointer selection
  • NAV data selection - ground speed, time-to-go, wind, and elapsed time
  • Provides selection for weather radar on EHSI
  • DH SET knob allows decision height to be set on EADI
  • Provides course, course direct to, heading, and heading sync selection
  • Panel lighting is 5 volt or 28 volt via connector jumpers
  • Versions available with various knob and switch labels (see table below)
SPECIFICATIONS
FAA TSO: C6c, c52a Environmental: D1/B/XXXXXXAZAAA
Weight: 2.9 lbs. (1.31kg) Size: 5.75"W x 5.08"H x 8.0"L
Power Input: 0.20 amp typical; .025 max Cooling: Not required
Part NumberDisplay Select Panel Description:
622-9683-001 Standard unit with black bezel
622-9683-002 Standard unit with gray bezel
622-9683-011 Black bezel, no WIND position on NAV DATA knob
622-9683-012 Gray bezel, no WIND position on NAV DATA knob
622-9683-021 Black bezel, no ARC WX or MAP WX position on format switch
622-9683-022 Gray bezel, no ARC WX or MAP WX position on format switch
622-9683-101 Black bezel, With analog course knob output
622-9683-102 Gray bezel, With analog course knob output
622-9683-111 Black bezel, no WIND position on NAV DATA knob, With analog course knob output
622-9683-112 Gray bezel, no WIND position on NAV DATA knob, With analog course knob output
622-9683-113 Black bezel, no ARC WX or MAP WX position on format switch
622-9683-311 Black bezel, no DH or WIND selection



PLEASE NOTE:
THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



622-9638-201
- EFIS Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9638-202
- EFIS Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-001
- EFIS Select Panel
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

622-9683-002
- EFIS Select Panel
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

622-9683-011
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-012
- EFIS Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-021
- EFIS Select Panel
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

622-9683-022
- EFIS Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-101
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-102
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-111
- Display Select Panel
Price Condition Delivery
$5,950.00 SV OUTRIGHT CALL OR RFQ
CALL OR RFQ SV EXCHANGE CALL OR RFQ
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

622-9683-112
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-113
- Display Select Panel
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT CALL OR RFQ
$16,950.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

622-9683-201
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-202
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-211
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-212
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-221
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-222
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-231
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-232
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-311
- Display Select Panel
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

622-9683-312
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-331
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-332
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

622-9683-501
- Display Select Panel
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No
