Part #: 622-5812-001

Model: FDU-70

NSN:

6605-01-345-1258

OEM:

Collins Aerospace

Desc:

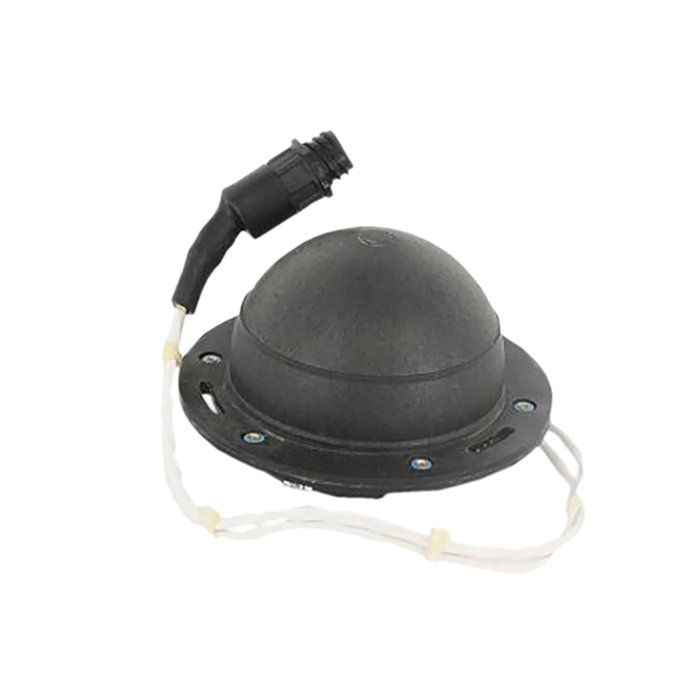

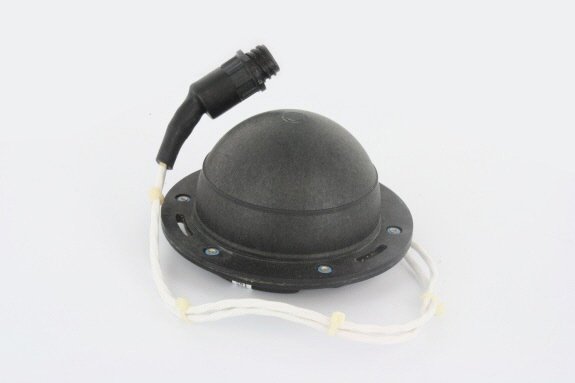

Flux Detector Unit

Part Number :


FDU-70



FEATURES

  • Provides flux measurements necessary to accurately determine aircraft magnetic heading
  • Processing circuits to convert FDU flux measurements into heading data are found in associated attitude heading computer or directional gyro system
  • Round mounting flange
  • Three connector cable lengths available (see table below)
  • Versions available with and without mating connector kit (see table below)



SPECIFICATIONS

TSO: C6c Environmental: DO-160D
Dimensions: 2.69" (68 mm) H x 4.76" (120.9 mm) W x 4.76" (120.9 mm) L Weight: .9 lbs., 0.41kg
Mounting: Hard-mount to airframe Maintenance: On condition
Inputs: Cosine, common, and sine excitation from hdg comp. or DG Outputs: Cosine, common, and sine signal to hdg comp. or DG
Part Number: Description:
622-5812-001 Std Unit with 394-mm (15.5") cable and pendant cable mating connector kit
622-5812-002 With 394-mm (15.5") cable and panel mount mating connector kit
622-5812-003 With 394-mm (15.5") cable and no mating connector kit
622-5812-004 With 200-mm (7.9") cable and no mating connector kit
622-5812-005 With 200-mm (7.9") pendant and pendant cable mating connector kit
622-5812-006 With 178-mm (7.0") pendant and no mating connector kit



Serial # 17314
Condition SVC
Mods None
Tag Date 01/24/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 21356
Condition SVC
Mods none
Tag Date 01/24/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 21455
Condition SVC
Mods None
Tag Date 01/24/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 22055
Condition SVC
Mods none
Tag Date 01/24/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 29026
Condition SVC
Mods None
Tag Date 01/24/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 7866
Condition SVC
Mods None
Tag Date 01/24/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 2343
Condition SVC
Mods None
Tag Date 01/11/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
622-5812-001
- Flux Detector Unit

NSN: 6605-01-345-1258

Price Condition Status
$895.00 SV OUTRIGHT 7 IN STOCK
622-5812-002
- Flux Detector Unit

NSN: 6605-01-329-0833

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-5812-003
- Flux Detector Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-5812-004
- Flux Detector Unit
Price Condition Status
$1,250.00 SV OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
622-5812-005
- Flux Detector Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-5812-006
- Flux Detector Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes, unlike most flux detector / flux valves, the common versions of the FDU-70 include a harness assembly with a male connector. The common versions of the FDU-70 do not have terminal lug connections as most flux valves do.
