Part #:

Model: HCP-74

Collins Aerospace - HSI Control Panel

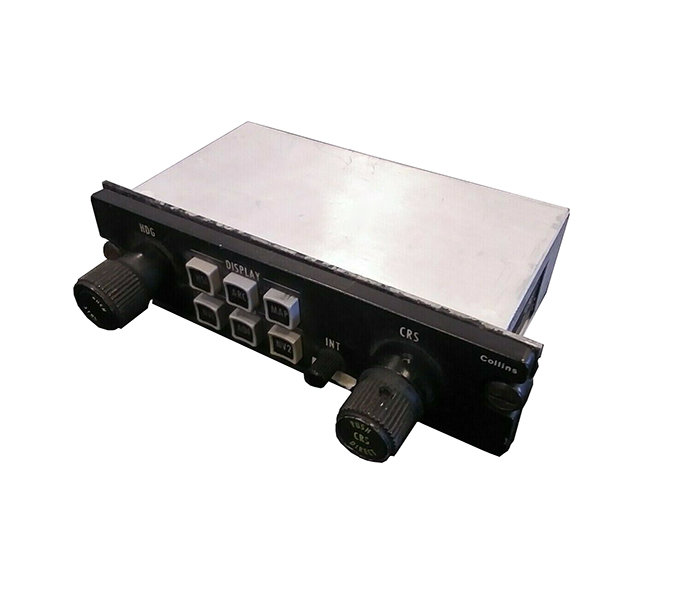

product image
Part Number :


HCP-74
FEATURES
  • HSI Control Panel used in EHSI-74 Electronic HSI System
  • Allows selection of display format, bearing pointer, course control, heading control, direct-to-course, heading synchronization, and display intensity
  • DZUS-rail mounted
  • Pushbutton switches and rotary controls
  • Versions available with black or gray bezel (see table below)
  • Versions available with 5 or 28-Volt lighting (see table below)



SPECIFICATIONS
Dimensions: 5.75"W x 1.50"H x 2.54"L Weight: 0.5 lbs.
Temperature: -20 to +70C (continuous) Altitude: 35000 ft. max.
Power Requirements: 27.5VDC, 50mA (typical) Lighting: 5V (1.0A) or 28V (0.19A), 5 watts (max) from aircraft dimming bus
Part Number HSI Control Panel Description:
622-6200-001 Features as above with 5-Volt lighting and black face
622-6200-002 Features as above with 28-Volt lighting and black face
622-6200-003 Features as above with 5-Volt lighting and gray face
622-6200-004 Features as above with 28-Volt lighting and gray face



622-6200-002
- HSI Control Panel

NSN: 1680-01-319-1237

Price Condition Status
$750.00 SV OUTRIGHT REQUEST
REQUEST AR OUTRIGHT 3 IN STOCK
622-6200-001
- HSI Control Panel
Price Condition Status
REQUEST SV OUTRIGHT REQUEST
REQUEST OH EXCHANGE REQUEST
622-6200-003
- HSI Control Panel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
