Part #:

Model: IND-220

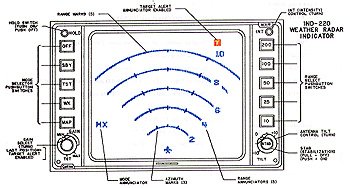

Collins Aerospace - Color Radar Indicator
product image
Part Number :


IND-220
FEATURES
  • Radar Indicator used in WXR-220 Color Radar System
  • 3-color weather intensity display
  • Can be operated with 5 or 28 Volt lighting
  • HEA coated filter glass
  • Slimline type display with only 4 x 6.25" panel space needed
  • Weather display hold- stop action display
SPECIFICATIONS
Category: /A1B1/B/PKS/XXXXXXAABAA Temperature Range: -15 to +55C (continuous)
Vibration: PKS (DO-160A) AF/RF Susceptibility: DO-160A Cat A
Altitude: 20000 ft. (operation) Lighting: +27.5VDC at 0.25A; 5V ac/dc at 1.3A
Display Viewing Area: 4.00" x 3.00" Scan Angle: 90 deg. (+-45 deg.)
Dimensions: 3.990"H x 6.250"W x 10.000"L Memory: Digital Storage
Part NumberRadar Indicator Description:
622-5940-001 blue white lighting with details as above
622-5940-008 white lighting with details as above



622-5940-001
- Color Radar Indicator
Price Condition Delivery
$2,150.00 SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

622-5940-008
- Color Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Yes, with the addition of the Avtech Digital Switching Unit (DSU) P/N 6001-1-1. List price for this unit is approximately $12000.
Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
