Part #:

Model: IND-42A

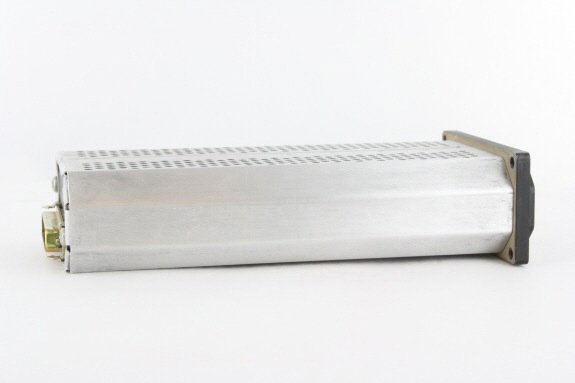

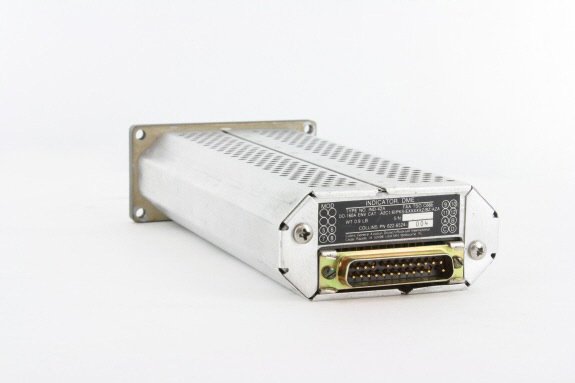

Collins Aerospace - DME Indicator
360
360
360
product 360 image
360
product image
Part Number :


IND-42A
FEATURES
  • Panel mounted DME indicator designed for general aviation aircraft
  • Used with DME-42/DME-442 DME transceivers
  • Used in single DME/dual control installations to display distance & other computed data from either of 3 channels from DME-42
  • Compact size for minimal panel space usage
  • Models available with 5V ac/dc or 28V dc lighting (see table below)
  • Models available with gray or black panel color (see table below)
SPECIFICATIONS
TSO: C66b RTCA Documents: DO-151A, DO-160A, DO-178
EUROCAE: MPS/WG 8/1/71; ED-14A DEUTSCHE BUNDESPOST FTZ: A446R2010
Environmental: DO-160A, categories /A2C1/B/PKS/ EXXXXXZ/BZ/AZA Mounting: Panel mounted, front or rear
Altitude: 35000 ft. max Dimensions: 3.38"W x 1.66"H x 7.18"L
Temperature Range: -20 to 70C (operational) Lighting Power: 28Vdc=100 mA; 5Vac/dc=350 mA
Input Signal: Serial digital; electrical-EIA RS-422A; Format-CSDB Dimming Control: Automatic or by external potentiometer
Power Requirement: 27.5Vdc=+16 to +32Vdc, 4.0 watts
Part NumberDME Indicator Description:
622-6524-001 5V ac/dc lighting voltage, gray panel color
622-6524-002 28V dc lighting voltage, gray panel color
622-6524-003 5V ac/dc lighting voltage, black panel color
622-6524-004 28V dc lighting voltage, black panel color
NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



622-6524-004
- DME Indicator

NSN: 5826-01-314-9992

Price Condition Delivery
$975.00 OH OUTRIGHT VIEW STOCK
622-6524-001
- DME Indicator

NSN: 5826-01-249-6477

Price Condition Delivery
$1,650.00 SV OUTRIGHT VIEW STOCK
CALL OR RFQ SV EXCHANGE VIEW STOCK
622-6524-003
- DME Indicator

NSN: 5826-01-439-5461

Price Condition Delivery
$1,595.00 OH OUTRIGHT VIEW STOCK
$850.00 OH EXCHANGE VIEW STOCK
622-6524-002
- DME Indicator
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT CALL OR RFQ
CALL OR RFQ SV EXCHANGE CALL OR RFQ

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 80% of the original exchange price. That is, it cannot cost SEA more than 80% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

For more information, please refer to these other Exchange FAQs
