Part #:
Model: MFD-85B
NSN: |
|
OEM: |
Collins Aerospace |
Desc: |
Multifunction Display |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/18/21 19:51:26 EDT *
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
|
* Price & Availability valid as of 04/18/21 19:51:26 EDT *

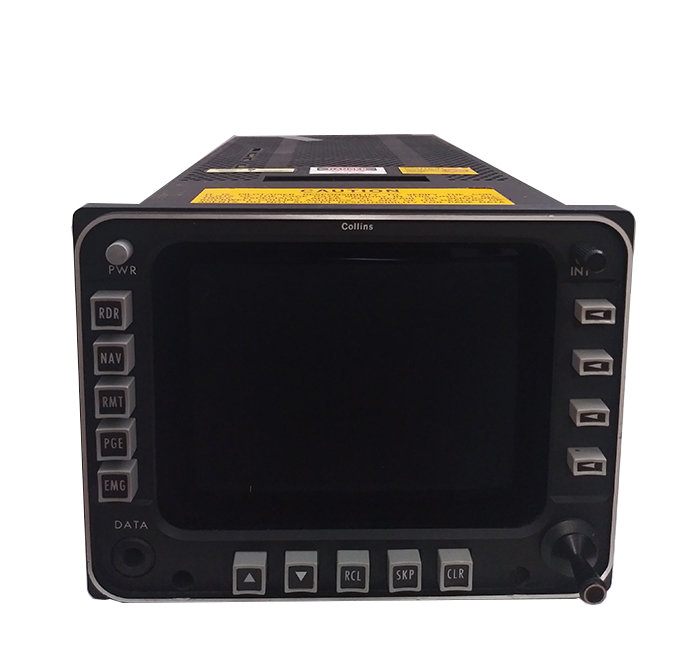

MFD-85B
FEATURES
- Dimmer-controlled lighting bus with 5 Vdc needs 0.92 A. Where 28 Vdc needs 0.21 A.
- Provides a high-temperature warning output that can drive an external installer supplied annunciator that will illuminate if the internal temperature of the DPU reaches +78 degrees Celcius (+172 degrees Farenheit) in still air
SPECIFICATIONS
| DIMENSIONS: | 6.28 in (159.51 mm) W x 4.730 in (120.14 mm) H x 12.8 in (325.1 mm) L | WEIGHT: | 9.6 lbs (4.35 kg) mounting tray weighs 0.4 lb (0.18 kg) |
| INPUT VOLTAGE: | 27.5 (+/-5.5) Vdc | Input Amperage: | 1.5 A to 2.3 A |
| Temperature Range: | Operation- -20° to +55° C (-4° to +131° F) Storage- -55° to +85° C (-67° to +185° F) | Altitude: | 50,000 ft (15,200 m) |
| Part Number: | Description: |
|---|---|
| 622-7876-011 | Multifunction Display |
622-7876-011
- Multifunction Display
NSN: 7025-01-476-7706
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
622-7876-012
- Multifunction Display
NSN: 5895-01-324-1442
| Price | Condition | Status |
|---|---|---|
| RFQ | SV OUTRIGHT | RFQ |
