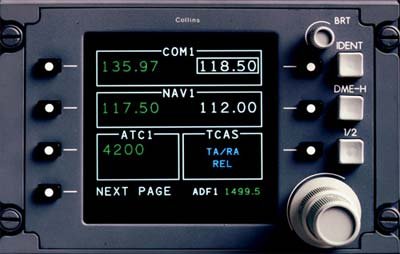

Picture of product RTU-4210

Part #:

Model: RTU-4210

OEM:

Collins Aerospace

Desc:

Radio Tune Unit
Part Number :


RTU-42XX
FEATURES
  • Radio Tuning Unit
  • Centralized control for all radios
  • Active Matrix Liquid Crystal Display (AMLCD)
  • Consistent tune & mode selection operation of all radios
  • Extended frequency ranges and spacing for international operation
  • Full cross-side radio control capability
  • No loss of radio tuning due to a single RTU failure
  • Independent volume control for each radio
  • TCAS control
  • COMM, NAV, ADF & HF presets
  • Standby HSI display
  • Standby engine display (application dependent)
  • Real-time display of system interface, fault history & radio diagnostic codes
  • Built-in-test capability
  • Logical, intuitive menu structure minimizes pilot workload; only preset frequency programming resides beyond second level menu operation
  • Operates concurrently with both Commercial Standard Data Bus (CSDB) and ARINC 429 digital interface
  • Can act as a bilingual translator, formatting FMS ARINC 429 commands for a CSDB radio
  • Provides maintenance display pages for CNS system interface status, radio diagnostics and fault history records - available only to maintenance personnel
  • LCD Dimming Control & Panel Dimming Control
  • All versions of the RTU may be DZUS rail or panel mounted
  • In a Typical System: 2 RTU's are required to provide the necessary redundancy in a typical installation, however a single RTU can provide full control of the entire radio complement
SPECIFICATIONS
CERTIFICATION
FAA TSO (4200): C34e, C35d, C36e, C37d, C38d, C40c, C41d, C66c, C112, C113, C119a
Environmental: DO-160C [A2F1]-BB[BMNPS]E1XXXXXZ[BZ]AZAW[Z3Z3]XX
EUROCAE: ED-14C Additional TSO (4210): C31d, C32d
Additional TSO:  C6d Software: DO-178B

PHYSICAL CHARACTERISTICS
Case Height: 3.277" Bezel Height: 3.750"
Case Width: 4.477" Bezel Width: 4.975"
Length: 6.34" Weight: 2.75 lbs
Cooling: Convection Maintenance: On Condition
Temperature: -20 to +70°C  Altitude: 55,000 ft
Primary Power: 28VDC : +18.0 to +32.2 VDC analog source capable of supplying a nominal .54 amps (15 W)

FREQUENCY
VHF COMM: 118.000 - 135.975 MHz  NAV: 108.00 - 117.95 MHz
DME: 108.00 - 117.95 MHz ADF: 190 - 1799 kHz
XPDR: 0000-7777 HF COMM: 2.0000 - 29.9999 MHz
Part NumberRadio Tuning Unit:
822-0668-001 RTU-4200, Black, On/Off Switch
822-0668-002 RTU-4200, Gray, On/Off Switch
822-0668-011 RTU-4200, Black, On/Off Switch
822-0668-012 RTU-4200, Gray, On/Off Switch
822-0668-021 RTU-4200, Black, On/Off Switch
822-0668-022 RTU-4200, Gray, On/Off Switch
822-0668-031 RTU-4200, Black, On/Off Switch, Flight ID
822-0668-032 RTU-4200, Gray, On/Off Switch, Flgith ID
822-0668-101 RTU-4200, Black, On/Off Switch, AIU-4000 required
822-0668-102 RTU-4200, Gray, On/Off Switch, AIU-4000 required
822-0668-111 RTU-4200, Black, On/Off Switch, AIU-4000 required
822-0668-112 RTU-4200, Gray, On/Off Switch, AIU-4000 required
822-0668-121 RTU-4200, Black, On/Off Switch, AIU-4000 required
822-0668-122 RTU-4200, Gray, On/Off Switch, AIU-4000 required
822-0668-131 RTU-4200, Black, On/Off Switch, Flight ID, AIU-4000 required
822-0668-132 RTU-4200, Gray, On/Off Switch, Flight ID, AIU-4000 required
822-0668-251 RTU-4200, Black, COM 1 Emer
822-0668-252 RTU-4200, Gray
822-0668-254 RTU-4200, Gray
822-0668-261 RTU-4200, Black, Flight ID, COM 1 Emer
822-0668-262 RTU-4200, Gray, Flight ID, COM 1 Emer
822-0668-264 RTU-4200, Gray, Flight ID
822-0836-001 RTU-4210, Black, TCAS
822-0836-002 RTU-4210, Gray, TCAS
822-0836-004 RTU-4210, Gray, On/Off Switch
822-0836-005 RTU-4210, Black, On/Off Switch, TCAS
822-0836-006 RTU-4210, Gray, On/Off Switch, TCAS
822-0836-014 RTU-4210, Gray, On/Off Switch, TCAS
822-0836-015 RTU-4210, Black, On/Off Switch, TCAS
822-0836-016 RTU-4210, Gray, On/Off Switch, TCAS
822-0836-024 RTU-4210, Gray, On/Off Switch, TCAS
822-0836-025 RTU-4210, Black, On/Off Switch, TCAS
822-0836-026 RTU-4210, Gray, On/Off Switch, TCAS
822-0836-034 RTU-4210, Gray, On/Off Switch, Flight ID, TCAS
822-0836-035 RTU-4210, Black, On/Off Switch, Flight ID, TCAS
822-0836-036 RTU-4210, Gray, On/Off Switch, Flight ID, TCAS
822-0836-102 RTU-4210, Gray
822-0836-103 RTU-4210, Black, On/Off Switch, TCAS, AIU-4000 required
822-0836-104 RTU-4210, Gray, On/Off Switch, TCAS, AIU-4000 required
822-0836-113 RTU-4210, Black, On/Off Switch, TCAS, AIU-4000 required
822-0836-114 RTU-4210, Gray, On/Off Switch, TCAS, AIU-4000 required
822-0836-123 RTU-4210, Black, On/Off Switch, TCAS, AIU-4000 required
822-0836-124 RTU-4210, Gray, On/Off Switch, TCAS, AIU-4000 required
822-0836-133 RTU-4210, Black, On/Off Switch, Flight ID, TCAS, AIU-4000 required
822-0836-134 RTU-4210, Gray, On/Off Switch, Flight ID, TCAS, AIU-4000 required
822-0836-203 RTU-4210, Black, On/Off Switch, TCAS, HF9000 Single, COM 3
822-0836-204 RTU-4210, Gray, On/Off Switch, TCAS, HF9000 Single, COM 3
822-0836-213 RTU-4210, Black, On/Off Switch, TCAS, HF9000 Single, COM 3
822-0836-214 RTU-4210, Gray, On/Off Switch, TCAS, HF9000 Single, COM 3
822-0836-223 RTU-4210, Black, On/Off Switch, TCAS, HF9000 Single, COM 3
822-0836-224 RTU-4210, Gray, On/Off Switch, TCAS, HF9000 Single, COM 3
822-0836-233 RTU-4210, Black, On/Off Switch, Flgiht ID, TCAS, HF9000 Single, COM 3
822-0836-234 RTU-4210, Gray, On/Off Switch, Flight ID, TCAS, HF9000 Single, COM 3
822-0836-303 RTU-4210, Black, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3
822-0836-304 RTU-4210, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3
822-0836-313 RTU-4210, Black, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3
822-0836-314 RTU-4210, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3
822-0836-323 RTU-4210, Black, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3
822-0836-324 RTU-4210, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3
822-0836-333 RTU-4210, Black, On/Off Switch, Flight ID, TCAS, AIU-4000 required, HF9000 Single, COM 3
822-0836-334 RTU-4210, Gray, On/Off Switch, Flgiht ID, TCAS, AIU-4000 required, HF9000 Single, COM 3
822-0836-434 RTU-4210, Gray, On/Off Switch, Flight ID, COM 1 Emer, TCAS, AIU-4000 required, HF9000 Single, COM 3
822-0730-001 RTU-4220, Black, On/Off Switch, TCAS, HF9000 Single, COM 3, HSI
822-0730-002 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-011 RTU-4220, Black, On/Off Switch, TCAS, HF9000 Single, COM 3, HSI
822-0730-012 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-021 RTU-4220, Black, On/Off Switch, TCAS, HF9000 Single, COM 3, HSI
822-0730-022 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-031 RTU-4220, Black, On/Off Switch, Flight ID, TCAS, HF9000 Single, COM 3, HSI
822-0730-032 RTU-4220, Gray, On/Off Switch, Flight ID, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-101 RTU-4220, Black, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-102 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-111 RTU-4220, Black, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-112 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-121 RTU-4220, Black, On/Off Switch, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-131 RTU-4220, Black, On/Off Switch, Flight ID, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-132 RTU-4220, Gray, On/Off Switch, Flight ID, TCAS, AIU-4000 required, HF9000 Single, COM 3, HSI
822-0730-201 RTU-4220, Black, On/Off Switch, TCAS, HF9000 Dual, COM 3, HSI
822-0730-202 RTU-4220, Gray, On/Off Switch, TCAS, HF9000 Dual, COM 3, HSI
822-0730-204 RTU-4220, Gray, On/Off Switch, TCAS, HF9000 Dual, COM 3, HSI
822-0730-211 RTU-4220, Black, On/Off Switch, TCAS, HF9000 Dual, COM 3, HSI
822-0730-212 RTU-4220, Gray, On/Off Switch, TCAS, HF9000 Dual, COM 3, HSI
822-0730-214 RTU-4220, Gray, On/Off Switch, TCAS, HF9000 Dual, COM 3, HSI
822-0730-221 RTU-4220, Black, On/Off Switch, TCAS, HF9000 Dual, COM 3, HSI
822-0730-222 RTU-4220, Gray, On/Off Switch, TCAS, HF9000 Dual, COM 3, HSI
822-0730-224 RTU-4220, Gray, On/Off Switch, TCAS, HF9000 Dual, COM 3, HSI
822-0730-231 RTU-4220, Black, On/Off Switch, Flight ID, TCAS, HF9000 Dual, COM 3, HSI
822-0730-232 RTU-4220, Gray, On/Off Switch, Flight ID, TCAS, HF9000 Dual, COM 3, HSI
822-0730-234 RTU-4220, Gray, On/Off Switch, Flight ID, TCAS, HF9000 Dual, COM 3, HSI
822-0730-301 RTU-4220, Black, On/Off Switch, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-302 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-304 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-311 RTU-4220, Black, On/Off Switch, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-312 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-314 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-321 RTU-4220, Black, On/Off Switch, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-322 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-324 RTU-4220, Gray, On/Off Switch, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-331 RTU-4220, Black, On/Off Switch, Flight ID, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-332 RTU-4220, Gray, On/Off Switch, Flight ID, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-334 RTU-4220, Gray, On/Off Switch, Flight ID, TCAS, AIU-4000 required, HF9000 Dual, COM 3, HSI
822-0730-451 RTU-4220, Black, On/Off Switch, COM 1 Emer, TCAS, HF9000 Dual, COM 3, HSI
822-0730-452 RTU-4220, Gray
822-0730-454 RTU-4220, Gray, TCAS, HF9000 Dual, COM 3, HSI
822-0730-461 RTU-4220, Black, Flight ID, COM 1 Emer, TCAS, HF9000 Dual, COM 3, HSI
822-0730-462 RTU-4220, Gray, Flight ID, COM 1 Emer, TCAS, HF9000 Dual, COM 3, HSI
822-0730-464 RTU-4220, Gray, Flight ID, TCAS, HF9000 Dual, COM 3, HSI
- Flight ID capable implies that they have 8.33 kHz tuning unit
- All of the above RTU-4200 have FMS ARINC 429 and CSDB baseline



822-0836-005
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-006
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-015
- Radio Tuning Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-024
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-035
- Radio Tuning Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-036
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-103
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-113
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-123
- Radio Tune Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-133
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-134
- Radio Tuning Unit

NSN: 5821-01-464-2653

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-214
- Radio Tuning Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-223
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-233
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-234
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-313
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-314
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-323
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-333
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-0836-434
- Radio Tuning Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
