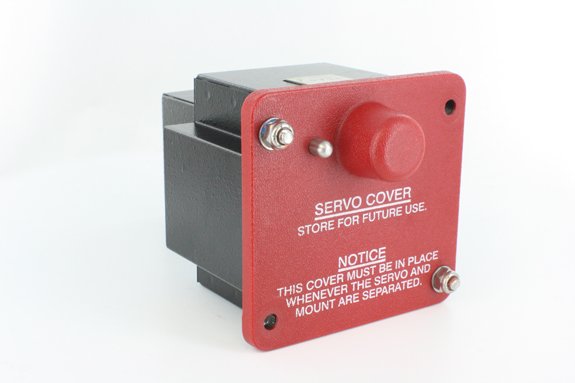

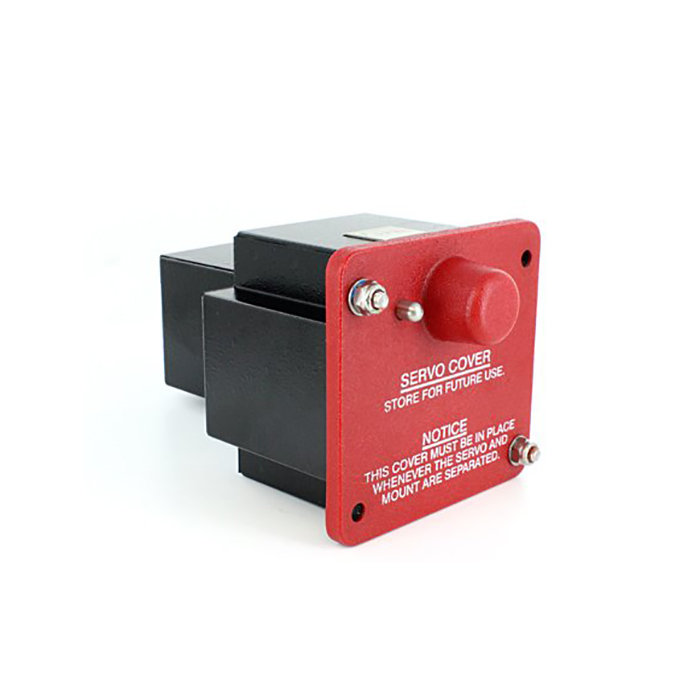

Part #: | 822-1168-003 |
---|---|
Model: | SVO-3000 |
Desc: | Low Torque Primary Servo/60 LB-IN |
OEM: | Collins Aerospace |
NSN: | |
---|---|
Sched-B: | 8501314000 |
ECCN: | 7A994 |
Price | Condition | Availability | Stock Info | |
---|---|---|---|---|
Price | Cond. | Avail. | Stock Info | |
$6,450.00 | OH OUTRIGHT | 2 IN STOCK |
Serial #: 2G08T [Details]
Serial #: 3CDLN [Details]
|
|
$2,450.00 | OH EXCHANGE | 2 IN STOCK |
Serial #: 2G08T [Details]
Serial #: 3CDLN [Details]
|
Price | Condition | Availability | Stock Info | |
---|---|---|---|---|
Price | Cond. | Avail. | Stock Info | |
$7,950.00 | OH OUTRIGHT | 3 IN STOCK |
Serial #: 43PX [Details]
Serial #: HNKK [Details]
See More Stock
|
|
$3,150.00 | OH EXCHANGE | 3 IN STOCK |
Serial #: 43PX [Details]
Serial #: HNKK [Details]
See More Stock
|
Price | Condition | Availability | Stock Info | |
---|---|---|---|---|
Price | Cond. | Avail. | Stock Info | |
$6,750.00 | OH OUTRIGHT | 1 IN STOCK |
Serial #: 46YR8H [Details]
|
|
$2,750.00 | OH EXCHANGE | 1 IN STOCK |
Serial #: 46YR8H [Details]
|
Price | Condition | Availability | Stock Info | |
---|---|---|---|---|
Price | Cond. | Avail. | Stock Info | |
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
Price | Condition | Availability | Stock Info | |
---|---|---|---|---|
Price | Cond. | Avail. | Stock Info | |
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
Price | Condition | Availability | Stock Info | |
---|---|---|---|---|
Price | Cond. | Avail. | Stock Info | |
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
SPECIFICATIONS
Weight: | 1.1 kgs (2.4 lbs) | length: | 150.114 mm (5.91 in) |
width: | 90.678 mm (3.57 in) | height: | 85.344 mm (3.360 in) |
SVO-3000 power : | 28VDC, 77 watts | CoOLING REQUIREMENTS: | Cooling by convection |
Mounting: | Secured to SMT-65 with four AN-960-10 flat washers (CPN 310-9001-020) four MS21044-N3 locknuts (CPN 333-1270-000) | Temperature: | -40 to +70° C (operating) -45 and +85° C (short-time operating) -55 to +85° C (ground survival) |
faa tso: | C9c (Autopilot) | POWER DISSIPATION: | 54 Watts |
input power: | input power of +28 VDC | rtca documents: | DO-160D [(A2)(F2)X]BBB[TDD1P]ERFXXSA[BZ]AZZ[WWP]H[Z3Z3]XBA |
MAINTENANCE REQUIREMENTS: | On Condition | output torque: | -001,-021, -031, -2.2 to 9.4 Nm (20 to 60 in-lb), -002, -022, -021,-932, -982, 5.56 to 10.73 Nm (50 to 95 in-lb), -003,-023,-33,-933, -983, 9.04 to 16.95 Nm (80 to 150 in-lb) |
servo torque range: | LO Torque: 20-60 in-lb, MED Torque: 50-95 in-lb, HI Torque: 80-150 in-lb | maximum output torque: | At Capstan, 60 IN-LB, 95 IN-LB, 150 IN-LB |
Part Number: | Description: |
---|---|
822-1168-001 | Low Torque Primary Servo/60 LB-IN |
822-1168-002 | Low Torque Primary Servo/95 LB-IN |
822-1168-003 | Low Torque Primary Servo/150 LB-IN |
822-1168-021 | Low Torque Primary Servo/60 LB-IN |
822-1168-022 | Low Torque Primary Servo/95 LB-IN |
822-1168-023 | Low Torque Primary Servo/150 LB-IN |
822-1168-031 | Low Torque Primary Servo/60 LB-IN |
822-1168-032 | Low Torque Primary Servo/95 LB-IN |
822-1168-033 | Low Torque Primary Servo/150 LB-IN |
Serial # | 46YR8H |
---|---|
Condition | OH |
Mods | 1-4 |
Tag Date | 06/25/25 |
Shop | Avionics Specialist Inc. |
Warranty | 6 Months |
Price | Condition | Status |
---|---|---|
$7,950.00 | OH OUTRIGHT | 3 IN STOCK |
$3,150.00 | OH EXCHANGE | 3 IN STOCK |
Price | Condition | Status |
---|---|---|
$6,450.00 | OH OUTRIGHT | 2 IN STOCK |
$2,450.00 | OH EXCHANGE | 2 IN STOCK |
Price | Condition | Status |
---|---|---|
$6,750.00 | OH OUTRIGHT | 1 IN STOCK |
$2,750.00 | OH EXCHANGE | 1 IN STOCK |
Price | Condition | Status |
---|---|---|
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
Price | Condition | Status |
---|---|---|
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
Price | Condition | Status |
---|---|---|
REQUEST | SV OUTRIGHT | REQUEST LEAD TIME |
