NSN: |
|
OEM: |
Comant |
Desc: |
GLIDESLOPE ANTENNA |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
Glideslope (CI-212)
Frequency · 329-335 MHz

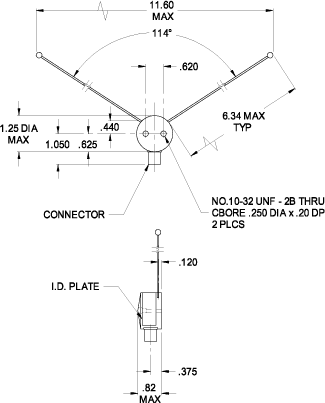

"V" glide slope designed specifically for mounting inside the nose cone of twin-engine aircraft. Provides a -3dB reduction in gain at the +30 degree points and +6.0dB gain looking forward relative to standard glide slope antennas. Antenna radiation characteristics eliminate or significantly reduce problems associated with propeller modulation.
Electrical :
Frequency | 329 - 335 MHz |
VSWR | 2.0:1 Maximum |
Polarization | Horizontal |
Radiation Pattern | Dipole |
Impedance | 50 Ohms |
Power RF | Receive Only |
Gain | 2.0 dB Nominal |
Mechanical :
Weight | 0.15 lb. Maximum |
Height | 1.5 in. Maximum |
Material | Delrin housing / Brass radiators |
Finish | Black / nickel |
Connector | BNC |
Environmental :
Temperature | -55°C to +55°C (Internal Mount) |
Federal Specifications
RTCA Environmental | DO-160 |
Environmental Category | D2ALXXXXXXXXXXX |
FAA TSO | C34c |
RTCA MOPS | DO-192 |
Part Number | Description: |
---|---|
CI-212 | "V" Glide Slope Dipole Interior Mount Antenna |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
