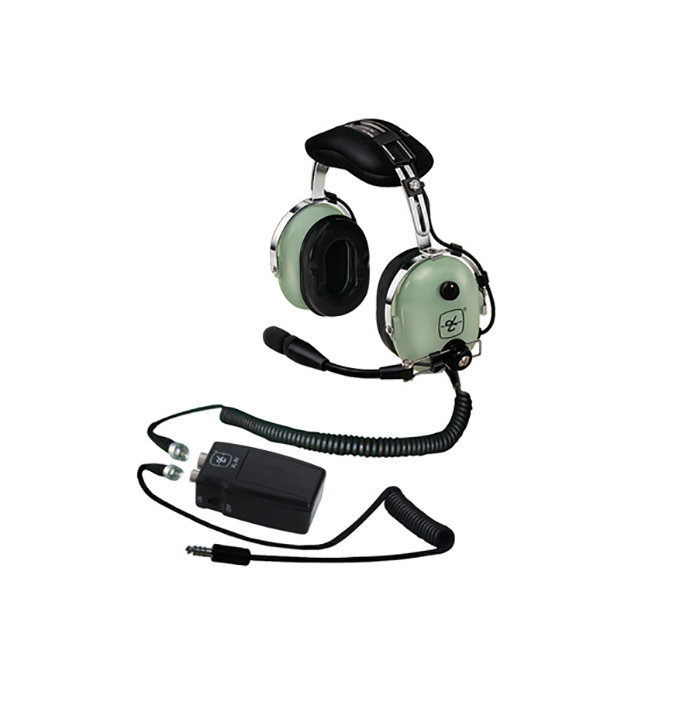

product image

Part #: 40614G-02

Model: H10-56HXL

NSN:

5965-01-447-6430

OEM:

David Clark

Desc:

Headset-Mic, Over-The-Head

Part Number :
Image result for dave clark logo


H10-56HXL



FEATURES

  • Same headset can be used with optional panel mount (H10-56XP)
  • Dual volume controls let you adjust the level for each ear
  • Exclusive, patented flex/wire boom for easy, precise microphone placement
  • Super-soft head pad
  • Larger, yet lighter, undercut Comfort Gel ear seals
  • Pilot selectable Automatic Shut-Off feature
  • Coil Cord (5-foot extended) with a 10-pin quick release connector
  • Battery Power Module – One 9 volt battery for up to 25 hours of operation
  • Extremely effective at blocking out low-frequency sound associated with helicopters



SPECIFICATIONS

Ear coupling: Around-the-ear Hardware: Steel
Earphone Plug: U-174/U Mic Plug: U-174/U
Connection Cable: ~ 5 ft. (1.5 m) coil cord Weight w/o cable: ~ 22 oz. (624 g)
Dome type: ABS Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @1KHz
Earphone Type: Dynamic (ENC) Ear Impedance: Monaural,150Ω nominal, stereo, 300 ohms nominal per side
Ear Freq Response: 100 – 5,500 Hz Microphone principle: M-7A Amplified Electret
Mic Impedance: 50Ω +/- 20% Mic Sensitivity: 400mV+/-6dB into 150Ω load @ 1kHz for 114dB SPL input
Mic Freq Response: 300Hz – 3.5KHz per RTCA DO 214 Mic DC Supply V: 8-16V, not polarity sensitive
Source Resistance: 470Ω
Part Number: Description:
40614G-02 Headset-Mic, Over-The-Head, Helicopter



40614G-02
- Headset

NSN: 5965-01-447-6430

Price Condition Status
$895.00 NEW OUTRIGHT REQUEST LEAD TIME
